• The EJ Frame Assy must be lowered most.

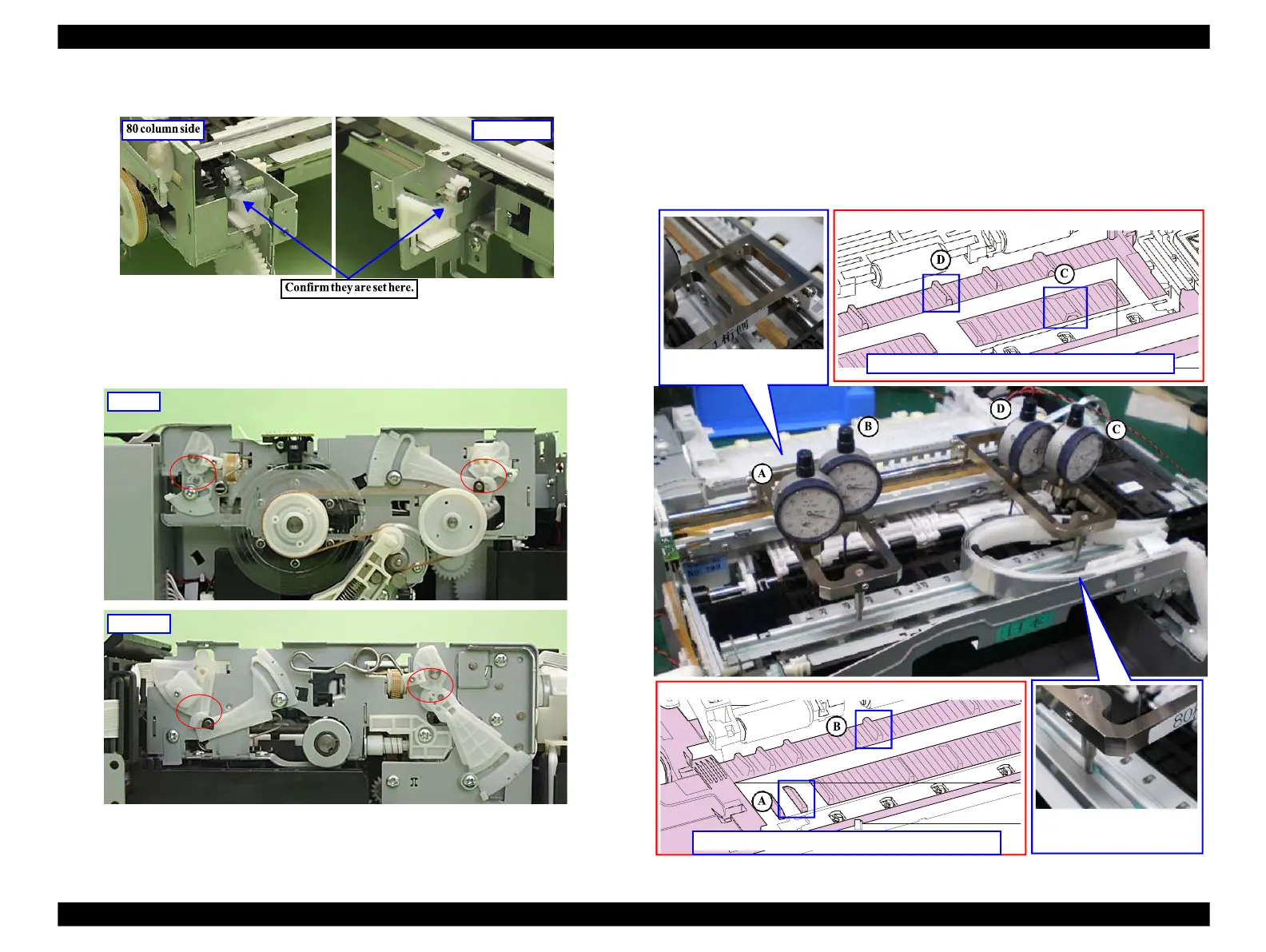

Figure 5-35. Position of EJ Frame Assy
• Check that the PG cams; located on both the left side and the right side of the
Carriage Shaft and the CR guide plate, are in the PG-position. ( Fig. 5-36 )
Figure 5-36. PG position when adjusting
Adjustment procedure
1.
Move the carriage to the home position.
2.
Loosen all the screws the secure each parallelism adjustment bushing. ( Fig. 5-34 )
3.
Attach the parallelism adjustment jigs to the printer mechanism.
Figure 5-37. Installing the parallelism adjustment jigs
To Next Page
