Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
MAINTENANCE
Overview
https://www.manualsbooks.com
251
Confidential

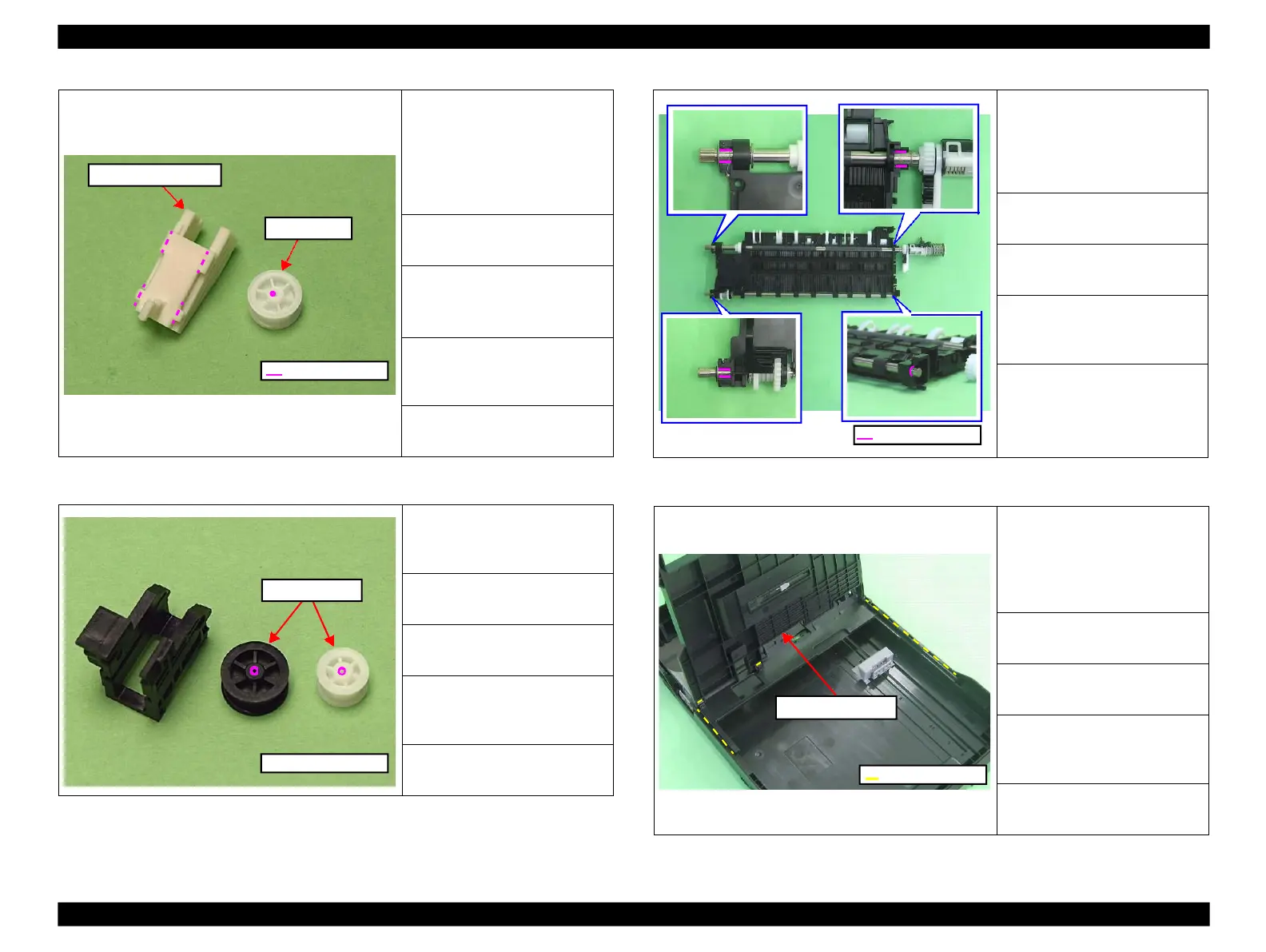

Figure 6-4. Lubrication of the Driven Pulley Assy
Figure 6-5. Lubrication of the Driven Pulley Timing Assy
Figure 6-6. Lubrication of the Paper Guide Front Assy
Sub Cassette Slider
Application Point
<Lubrication Points>
1. Two points at the slits of the
Sub Cassette Slider
2. Two points at the bearings of
the Sub Cassette Slider
<Type>
G-74
<Application Amount>
Sufficient quantity
<Application Timing>
Before installing the Cassette
Assy
<Remarks>
Apply with brush
Figure 6-7. Lubrication of the Sub Cassette Slider
Driven Pulley Holder
Driven Pulley
Application Point
<Lubrication Points>
1. Four contact points between
the Driven Pulley Holder and
the Main Frame
2. The center of the Driven Pulley
(bushing)
<Type>
G-71
<Application Amount>
1. 1 x sufficient quantity
2. 1 x 1 mm
<Application Timing>
Before installing the Driven
Pulley Assy
<Remarks>
Apply with injector
Application Point
<Lubrication Points>
Seven contact points between the
bushings of the Paper Guide Front
Assy and EJ Roller Shaft/PF
Roller Shaft.
<Type>
G-71
<Application Amount>
 1 x sufficient quantity
<Application Timing>
Before installing the Paper Guide
Front Assy
<Remarks>
Apply with brush
Driven Pulleys
Application Point
<Lubrication Points>
The centers of the Driven Pulleys
(bushings) (x2)
<Type>
G-71
<Application Amount>
 1 x 1 mm
<Application Timing>
Before installing the Driven
Pulley Timing Assy
<Remarks>
Apply with injector
