Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
MAINTENANCE
Overview
https://www.manualsbooks.com
252
Confidential

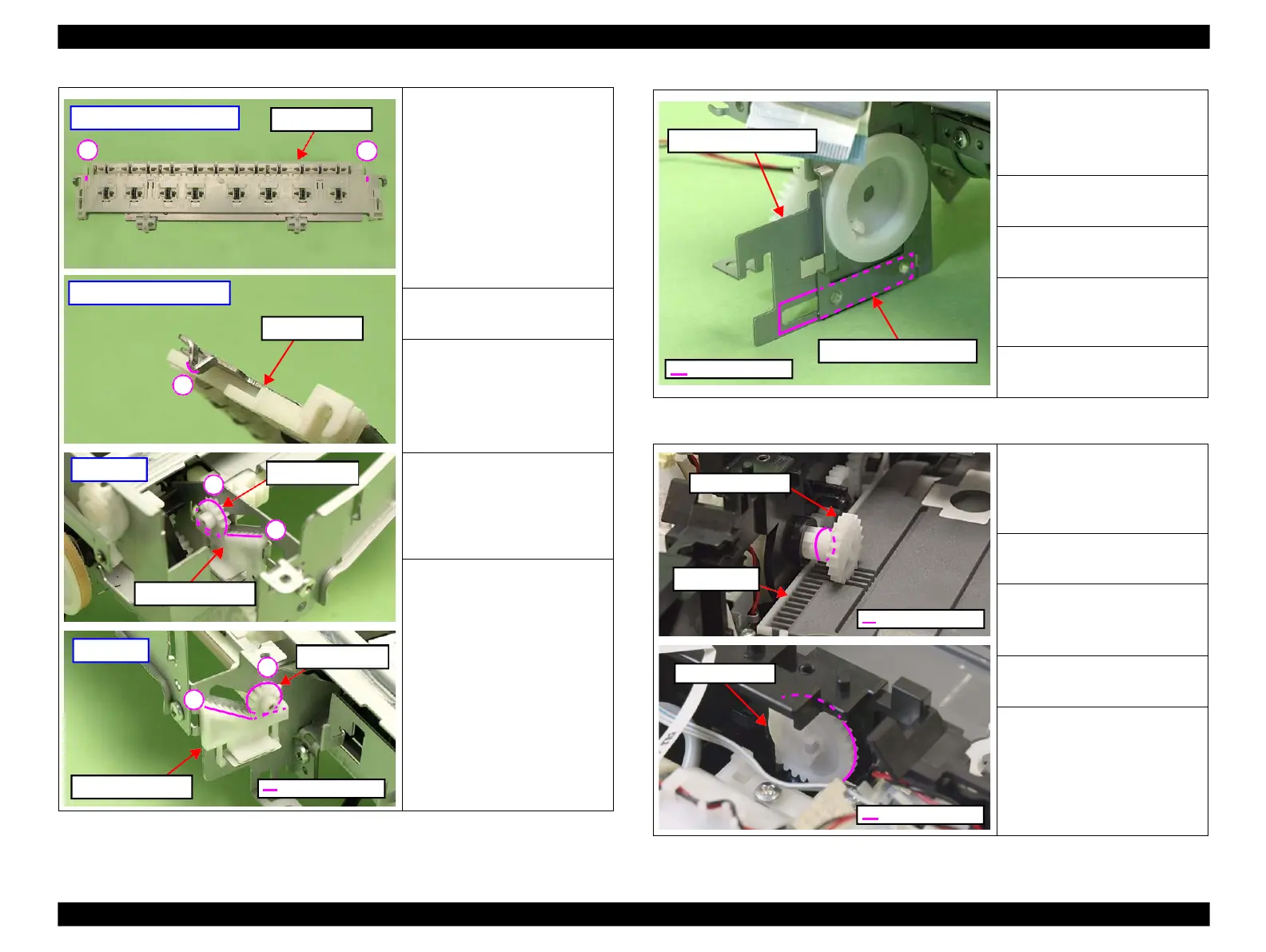

Figure 6-9. Lubrication of the EJ Release Frame Assy L
Figure 6-8. Lubrication of the EJ Release Assy L/R and EJ Release Racks
Figure 6-10. Lubrication of the Spur Gear 15.2 and Spur Gear 26.4
EJ Release Frame Assy L
<Lubrication Points>
Contact point between the EJ
Release Frame Assy L and the EJ
Release Slider Frame
EJ Release Slider Frame
Application Point
<Type>
G-71
<Application Amount>
Sufficient quantity
<Application Timing>
Before installing the EJ Release
Frame Assy L
<Remarks>
Apply with brush
Bottom of the EJ Frame Assy
1
Left of the EJ Frame Assy
2
Left side
3
EJ Release Rack
Right side
4
EJ Release Rack
EJ Frame Assy
1
EJ Frame Assy
Spur Gear 8.8
4
Spur Gear 8.8
3
Application Point
<Lubrication Points>
1. Two contact points between
the EJ Frame Assy and the
Paper Guide Front Assy
2. Contact point between the left
side of EJ Frame Assy L and
the EJ Release Frame Assy L
3. Spur Gear 8.8 (L/R) (x2)
4. Toothed areas of EJ Release
Rack (L/R) (x2)
<Type>
G-71
<Application Amount>
 2 x sufficient quantity
2. Sufficient quantity
 1 x 1 circle
4. 1 x toothed areas
<Application Timing>
(1), (2) Before installing the EJ
Frame Assy
(3), (4) Before installing the EJ
Release Frame Assy L/R
<Remarks>
Apply with injector
Spur Gear 15.2
CDR Tray
Application Point
Spur Gear 26.4
Application Point
<Lubrication Points>
1. On the shaft of Spur Gear 15.2
2. On the toothed area of Spur
Gear 26.4
<Type>
G-71
<Application Amount>
 1 x 1 circle
2. 1 x half circle
<Application Timing>
Before installing the CDR Tray
<Remarks>
Apply with injector
