Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
MAINTENANCE
Overview
https://www.manualsbooks.com
253
Confidential

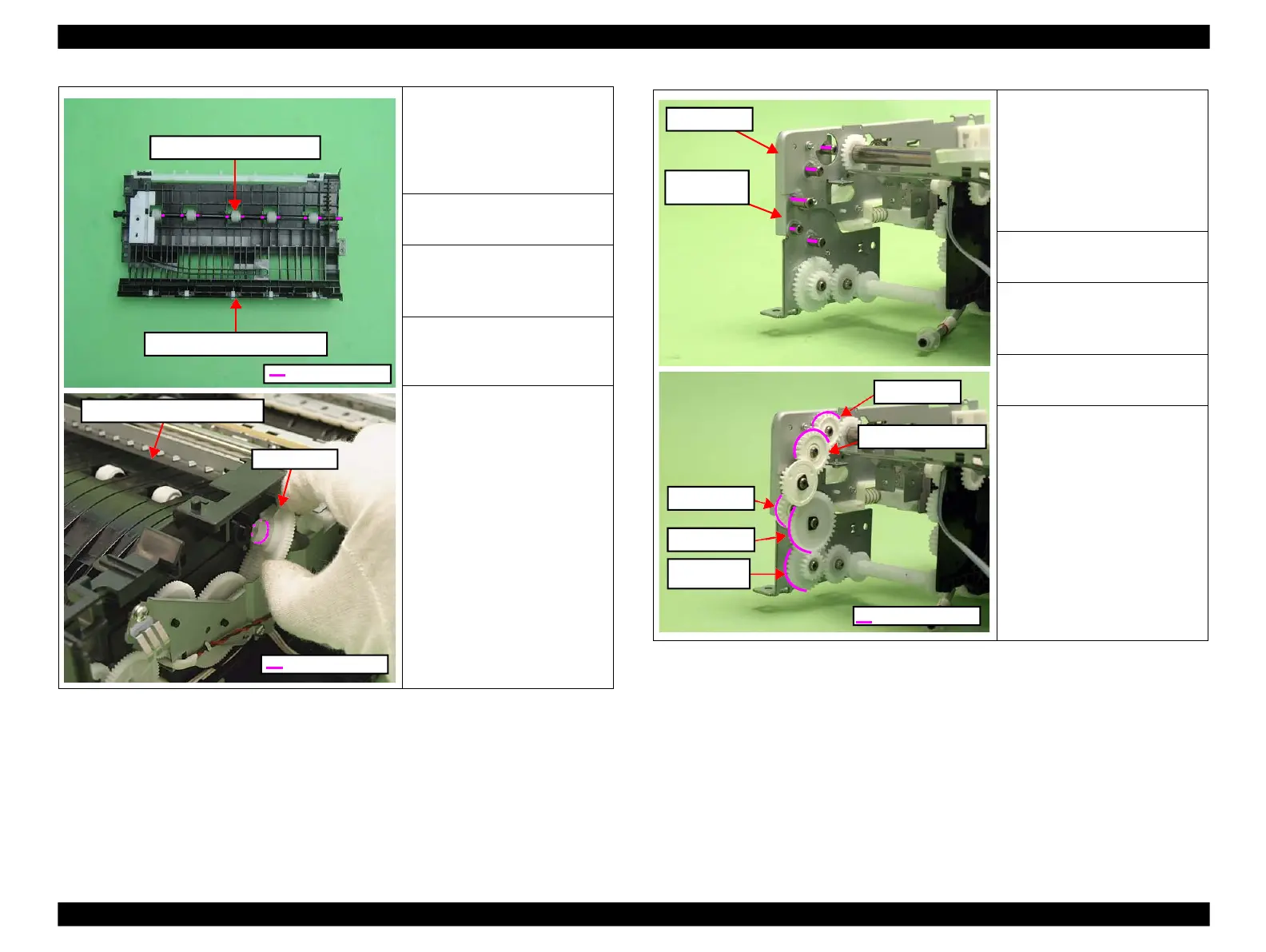

Figure 6-12. Lubrication of the APG related gears
Figure 6-11. Lubrication of the Lower ASF Paper Guide Assy
Main Frame
APG Holder
Assy
<Lubrication Points>
1. Five points on the shafts of the
Main Frame and APG Holder
Assy
2. On the toothed areas of the
Spur Gear A, B, C and
Combination Gear A, B
Spur Gear A
Combination Gear A
Spur Gear B
Spur Gear C
Combination
Gear B
Application Point
<Type>
G-71
<Application Amount>
1. 1 x 1 circle
2. 1 x half circle
<Application Timing>
Before installing each gear
<Remarks>
Apply with injector
Intermediate Roller shaft
Lower ASF Paper Guide Assy
Application Point
Lower ASF Paper Guide Assy
Spur Gear 26
Application Point
<Lubrication Points>
1. Ten contact points between the
Intermediate Roller shaft and the
Lower ASF Paper Guide Assy
2. On the shaft of Spur Gear 26
<Type>
G-71
<Application Amount>
 1 x 1 circle
2. 1 x 1 circle
<Application Timing>
Before installing the Lower ASF
Paper Guide Assy
<Remarks>
Apply with injector
