Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
MAINTENANCE
Overview
https://www.manualsbooks.com
254
Confidential
Spur Gear 17.6
Application Point
EJ Release Trigger
<Lubrication Points>
Four contact points between the
Spur Gear 17.6 and the EJ Release
Trigger
<Type>
G-74
<Application Amount>
Ribs of the Spur Gear 17.6 x 4
points
<Application Timing>
Before installing the Transmission
Arm
<Remarks>
Apply with injector

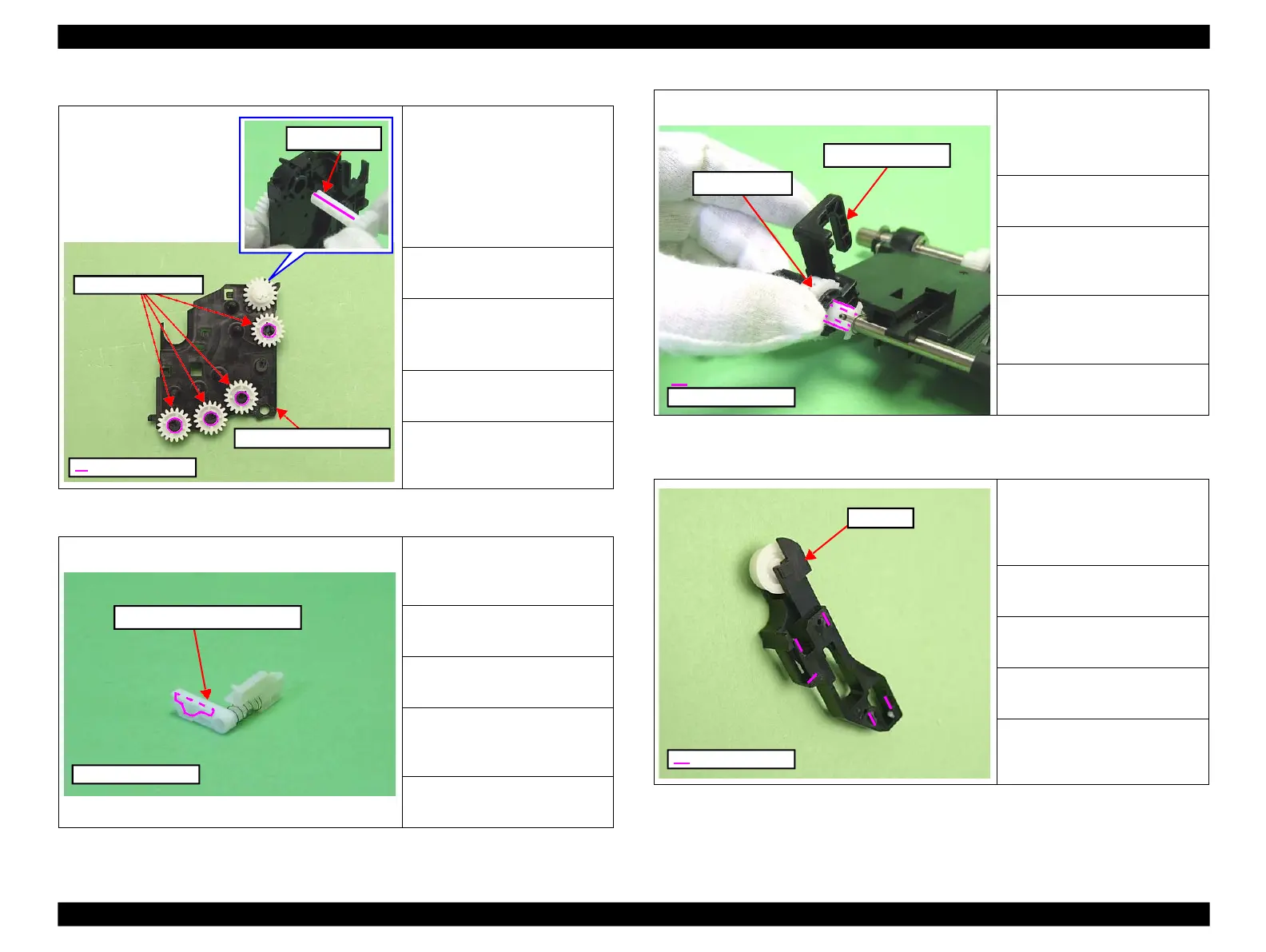

Figure 6-13. Lubrication of the Transmission Holder Assy (1)
Figure 6-14. Lubrication of the Transmission Holder Assy (2)
Figure 6-15. Lubrication of the Spur Gear 17.6
Tensioner
Application Point
<Lubrication Points>
Five contact points between the
Tensioner and the Tension Holder
reinforcing plate
<Type>
G-71
<Application Amount>
 1 x 1mm
<Application Timing>
Before installing the Tensioner
<Remarks>
Apply with brush
Figure 6-16. Lubrication of the Tensioner
Spur Gear13.6
Transmission Gears
Transmission Holder Assy
Application Point
<Lubrication Points>
1. Four contact points between
the Transmission Holder Assy
and the Transmission Gears
2. Contact point between the Spur
Gear 13.6 and the
Transmission Holder Assy
<Type>
G-71
<Application Amount>
1. 1 x 1 circle
2. 1 x 1 circle
<Application Timing>
Before installing each gear
<Remarks>
Apply with injector
Sub Transmission Cam Holder
Application Point
<Lubrication Points>
Cam surface at the Sub
Transmission Cam Holder
<Type>
G-71
<Application Amount>
 1 x Cam surface
<Application Timing>
Before installing the Sub
Transmission Cam Holder
<Remarks>
Apply with injector
