Application Point
LD Roller shaft
<Lubrication Points>
Two Contact points between the
LD Roller shaft and the Base
Frame
<Type>
G-71
<Application Amount>
 1 x 1 circle
<Application Timing>
Before installing the LD Roller
shaft
<Remarks>
Apply with injector

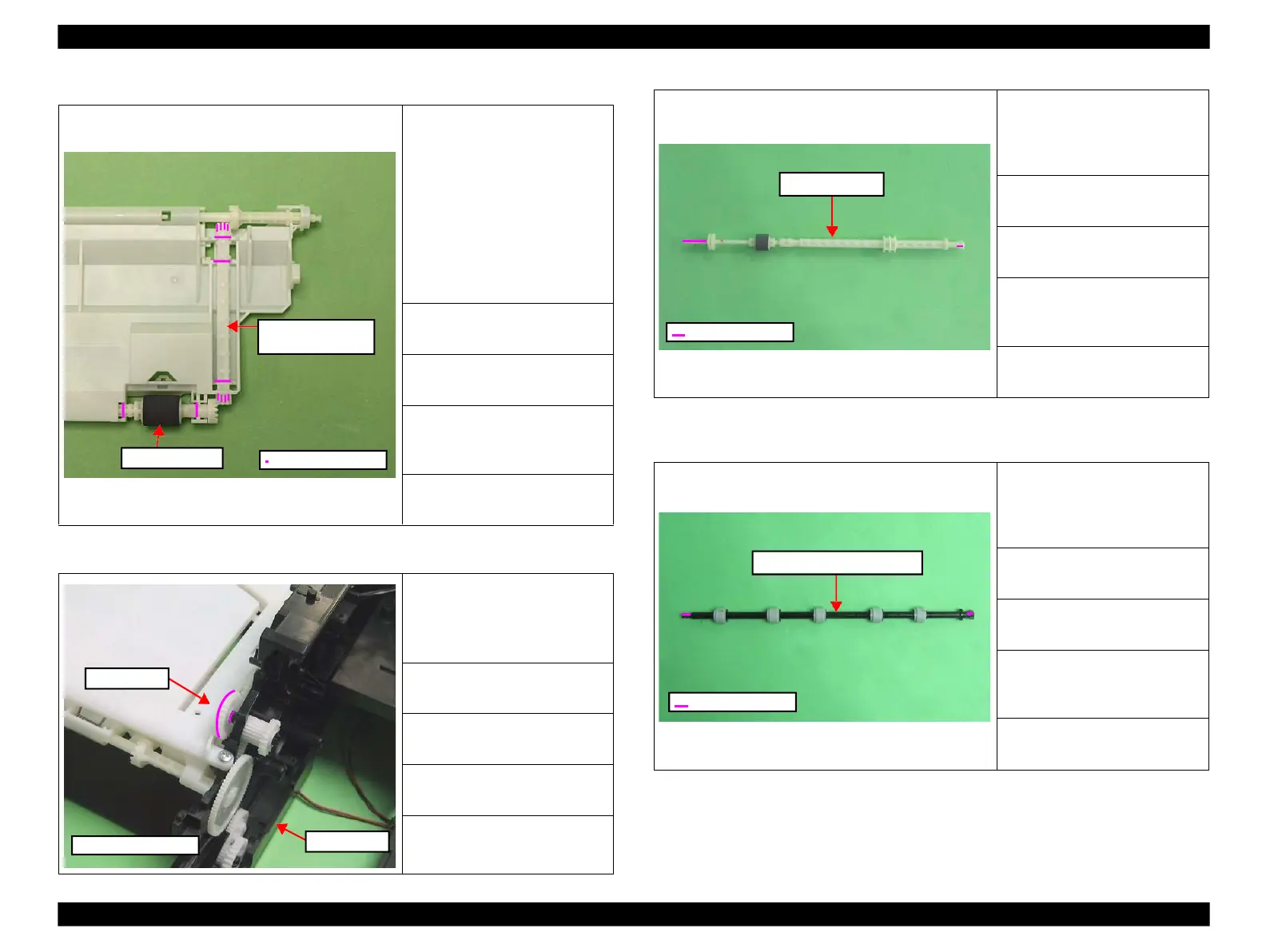

Figure 6-17. Lubrication of the Pick Up Roller transmission shaft
Figure 6-18. Lubrication of the Spur Gear 36
Figure 6-19. Lubrication of the LD Roller shaft
<Lubrication Points>
Two contact points between the
Intermediate Roller shaft and the
Base Frame
Intermediate Roller shaft
<Type>
G-71
<Application Amount>
 1 x 1 circle
<Application Timing>
Application Point
Before installing the Intermediate
Roller shaft
<Remarks>
Apply with injector
Figure 6-20. Lubrication of the Intermediate Roller Shaft
Pick Up Roller
transmission shaft
Pick Up Roller
Application Point
<Lubrication Points>
1. Two toothed areas of the Pick
Up Roller transmission shaft
2. Two contact points between
the Pick Up Roller and Pick Up
Frame
3. Three contact points between
the Pick Up Roller
transmission shaft and Pick Up
Frame
<Type>
G-74
<Application Amount>
Sufficient quantity
<Application Timing>
Before installing the Pick Up
Roller
<Remarks>
Apply with injector
Spur Gear 36
Application Point
Base Frame
<Lubrication Points>
1. On half the toothed area of the
Spur Gear 36
2. On the shaft of the Base Frame
<Type>
G-71
<Application Amount>
Sufficient quantity
<Application Timing>
Before installing the CDR Guide
<Remarks>
Apply with injector
