Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
MAINTENANCE
Overview
https://www.manualsbooks.com
256
Confidential
Panel Unit
3mm
Application Point
<Lubrication Points>
On the shaft of the Panel Unit
(3mm away from the left end)
<Type>
G-71
<Application Amount>
 1 x 10mm
<Application Timing>
Before installing the Panel Unit
<Remarks>
Apply with injector

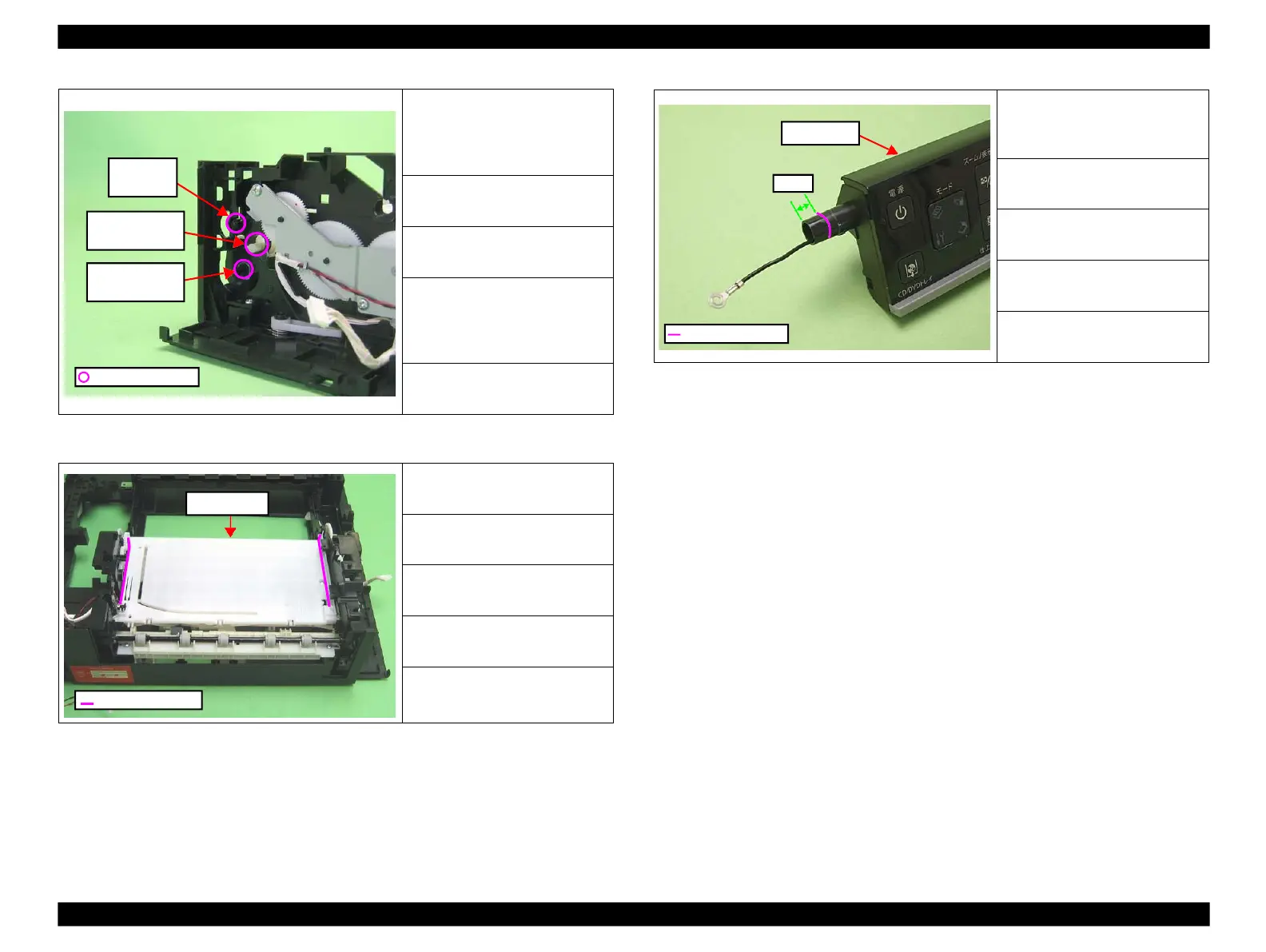

Figure 6-23. Lubrication of the Panel Unit (Artisan 700/PX700W/TX700W)
Figure 6-21. Lubrication of the Base Frame
CDR Guide
Application Point
<Lubrication Points>
On the CDR Guide
<Type>
G-74
<Application Amount>
Sufficient quantity all along
<Application Timing>
Before installing the CDR Guide
<Remarks>
Apply with injector
Figure 6-22. Lubrication of the CDR Guide
Spur Gear
A ’ s shaft
Combination
Gear A ’ s shaft
Combination
Gear B ’ s shaft
Application Point
<Lubrication Points>
Contact points between the Base
Frame and the Combination Gear
A, B and Spur Gear A
<Type>
G-71
<Application Amount>
 1 x 1 circle
<Application Timing>
Before installing the LD Roller
Shaft and the Intermediate Roller
Shaft
<Remarks>
Apply with injector
