VX-RPS-1000 Redundant Power Supply
Tip
Extreme Redundant Power Supplies (RPS) do not support the ability for the RPS to be
connected to an operational switch. Connecting an RPS to an operational switch can have an
adverse eect on the switch. It is best practice that both the switch and the RPS be powered
down prior to cabling them together. Once the cabling is completed, turn on the RPS, then
turn on the switch.
The VX-RPS-1000 provides load sharing, backup, or additive power for the V400 Virtual Port Extender.

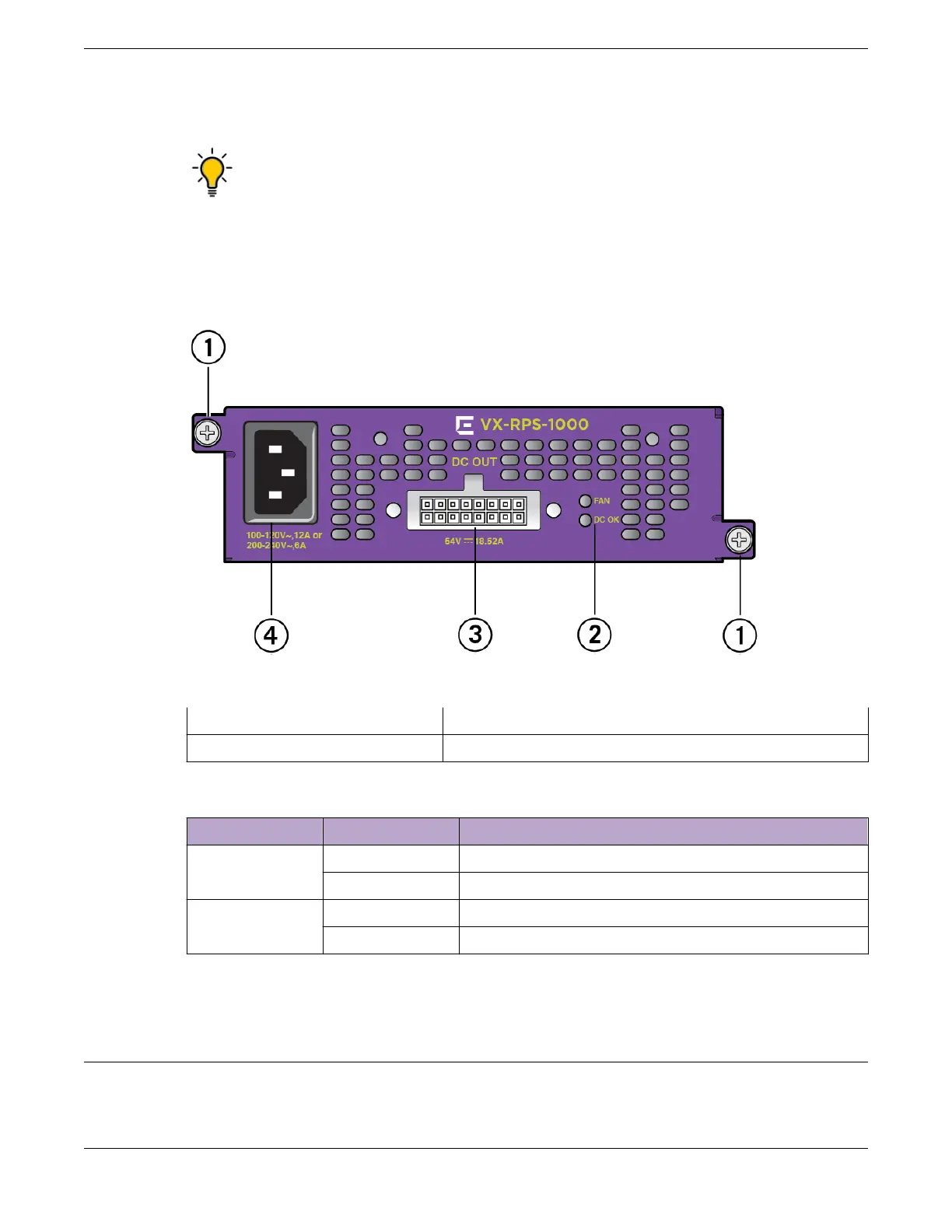

Figure 120: VX-RPS-1000 Front Panel
1 = Captive screws
3 = Connector to port extender
2 = Status LEDs 4 = AC power input connector
Table 46: VX-RPS-1000 LED Status Definitions
LED LED Color Status
AC OK Green AC input within operational range
O No AC voltage or AC voltage is outside the operational range
DC OK Green DC input within operational range
O No DC voltage or DC voltage is outside the operational range
For technical specifications, including pin locations and functions, see VX-RPS-1000 Redundant Power
Supply Technical Specifications on page 473.
Replaceable Internal Power Supplies
Several ExtremeSwitching switch models have two bays for installing one or two replaceable AC or DC
power supplies.
VX-RPS-1000 Redundant Power Supply
Power Supplies for Use with Your Switch
130 ExtremeSwitching Hardware Installation Guide
