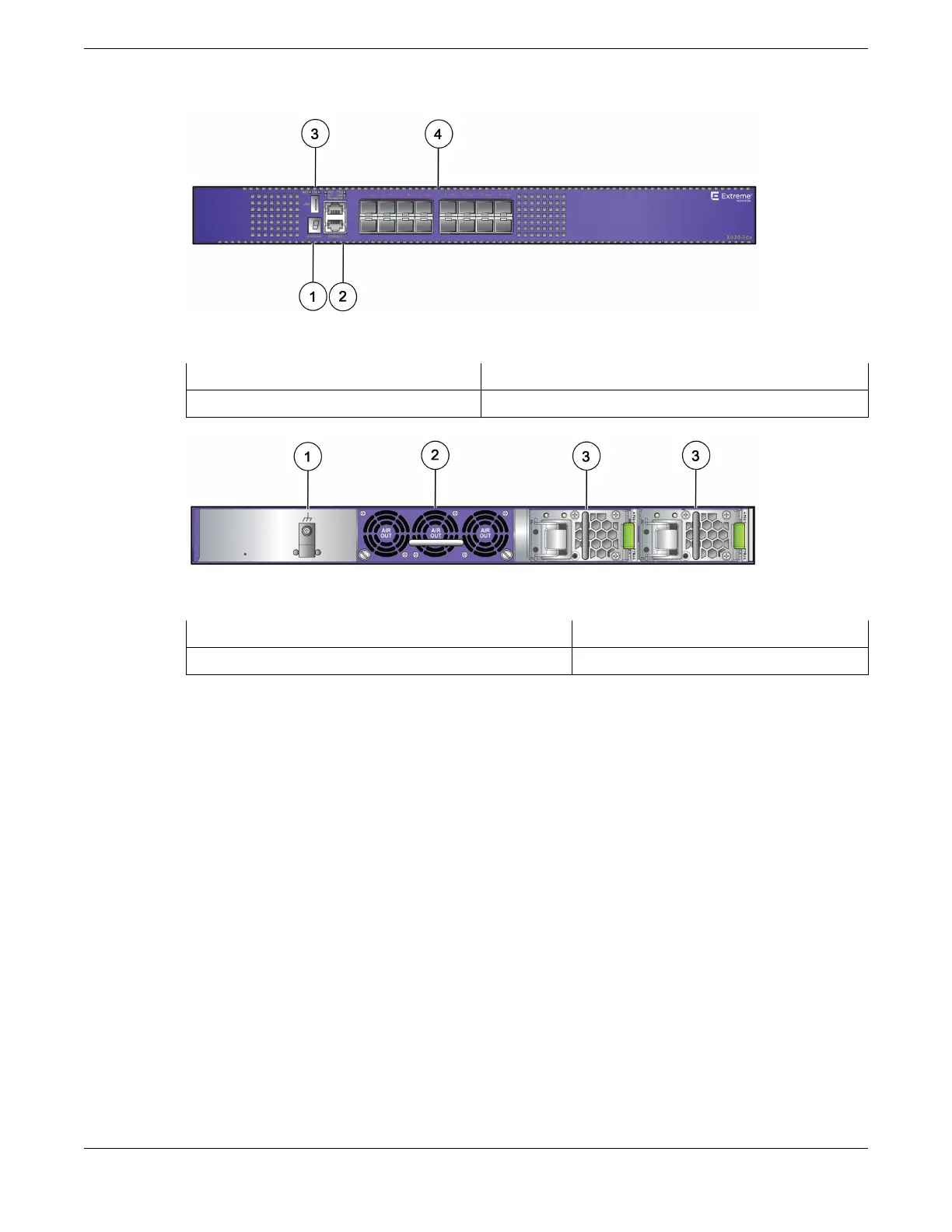

Figure 94: ExtremeSwitching X620-16x Front Panel
1 = Stack number indicator 3 = USB port (active with ExtremeXOS version 22.2 or later)
2 = Console port/Ethernet management port 4 = 100Mb/1 Gb/10GBASE-X SFP+ ports
Figure 95: ExtremeSwitching X620-16x Rear Panel
1 = Grounding lug
3 = PSU slots
2 = Fan module
ExtremeSwitching X620-16p Switch Ports and Slots
The ExtremeSwitching X620-16p switch ports and slots include:
• Eight front panel PoE++ ports of 100Mb/1 Gb/2.5Gb/5Gb/10GBASE-T (with EEE at 10 Gb).
• Four front panel PoE+ ports of 100Mb/1 Gb/2.5Gb/5Gb/10GBASE-T (with EEE at 10 Gb).
• Four front panel PoE+ ports of 100Mb/1 Gb/10GBASE-T, shared with four front panel SFP+
combination ports of 1 Gb/10GBASE-X.
• Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
• Ethernet management port (10/100/1000BASE-T).
• One front panel USB 2.0 port, operational on switches running ExtremeXOS version 22.2 or later.
• One rear slot for fan module with front-to-back or back-to-front
airflow.
• Rear dual PSU power slots with front-to-back or back-to-front airflow.
ExtremeSwitching X620-16p Switch Ports and Slots
ExtremeSwitching Switches
94 ExtremeSwitching Hardware Installation Guide
