X460-G2-4 8p-10GE4
1 0Gb E SFP +
SYN C-E Inp uts
SYN C-E Inp ut Port s
MGT FAN P1 P2 S 1
CLK ACT LINK
S2
USB

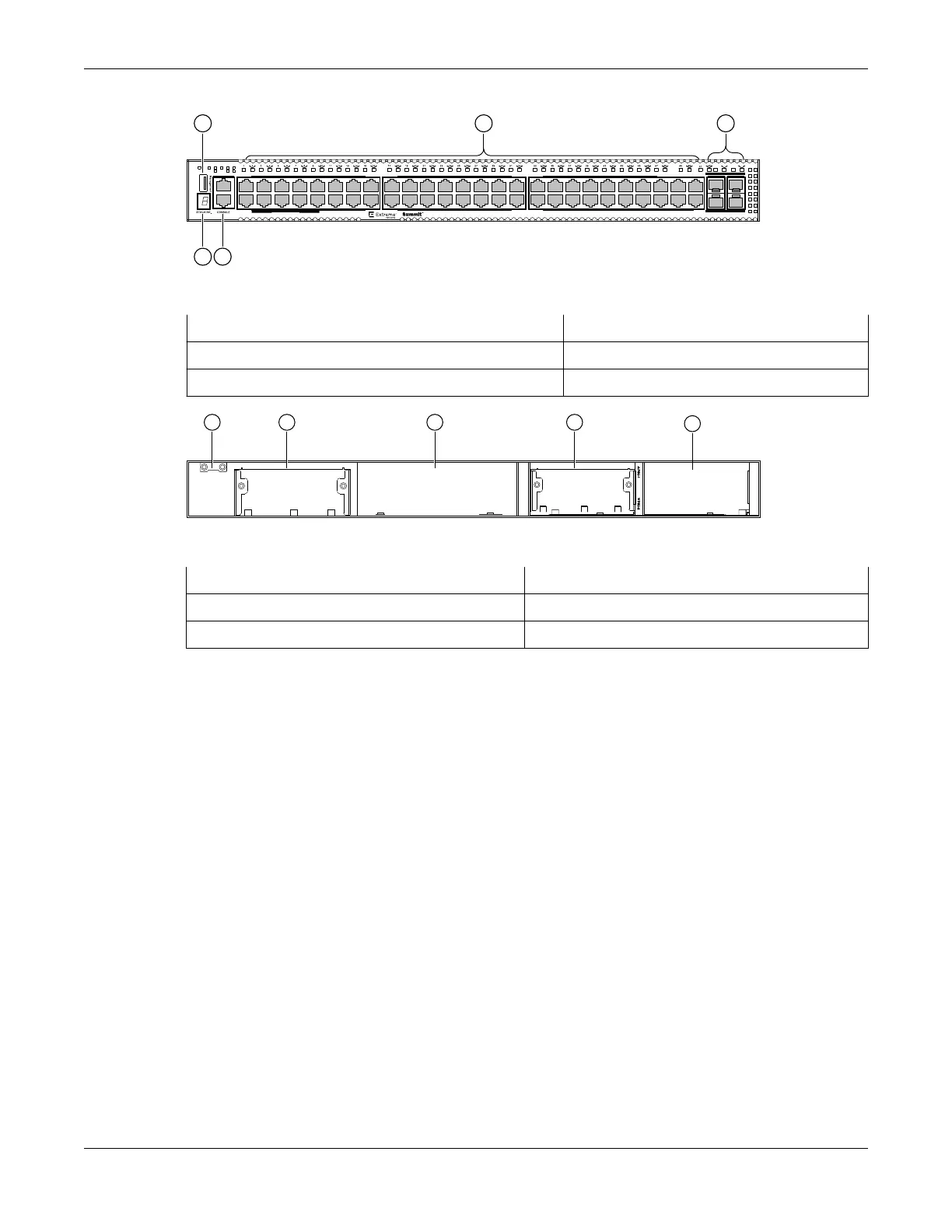

Figure 74: X460-G2-48p-10GE4 Front Panel
1 = USB port 4 = PoE+ 10/100/1000BASE-T ports
2 = Stack number indicator 5 = SFP+ 10GBASE-X ports
3 = Console port/Ethernet management port
Figure 75: X460-G2-48p-10GE4 Rear Panel
1 = TM-CLK (clock) slot cover
4 = Blank power supply cover
2 = VIM slot cover 5 = Power supply slot
3 = Fan module slot
ExtremeSwitching X460-G2-24p-24hp-10GE4 Switch Ports and Slots
X460-G2-24p-24hp-10GE4 switch ports and slots include:
• 24 front panel PoE+ ports of 10/100/1000BASE-T (ports 1-24) that support full-duplex
communication only
• 24 front panel PoE+ ports of 10/100/1000BASE-T (ports 25-48) that support full-duplex
communication and support half-duplex communication at speeds less than 1 Gb
• Four ports of 10GBASE-X SFP+ (ports 49-52, with two of these ports
configurable to be stacking
ports).
• One front panel USB port.
• Ethernet management port 1 x 10/100/1000BASE-T.
• Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
• One rear panel VIM slot.
• One rear panel TM-CLK (clock) slot.
• Rear dual PSU power slots with front-to-back or back-to-front
airflow.
• One rear slot for fan module with front-to-back or back-to-front airflow.
ExtremeSwitching X460-G2-24p-24hp-10GE4 Switch
Ports and Slots ExtremeSwitching Switches
70 ExtremeSwitching Hardware Installation Guide
