MGT FAN P1 P2 S1
CLK ACT LINK
S2
21
22
23
24
17
18
19
20 25
26
27
28 29 30
31
32
36
37
38
39 40
41
42
43
46
44 47
45
48
33
34
35
50
51
49
52
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16
CONSOLE
STACK NO.
Management
5
3
4
1
2
Summit
™
X450-G2-48t-GE4
GbES FP

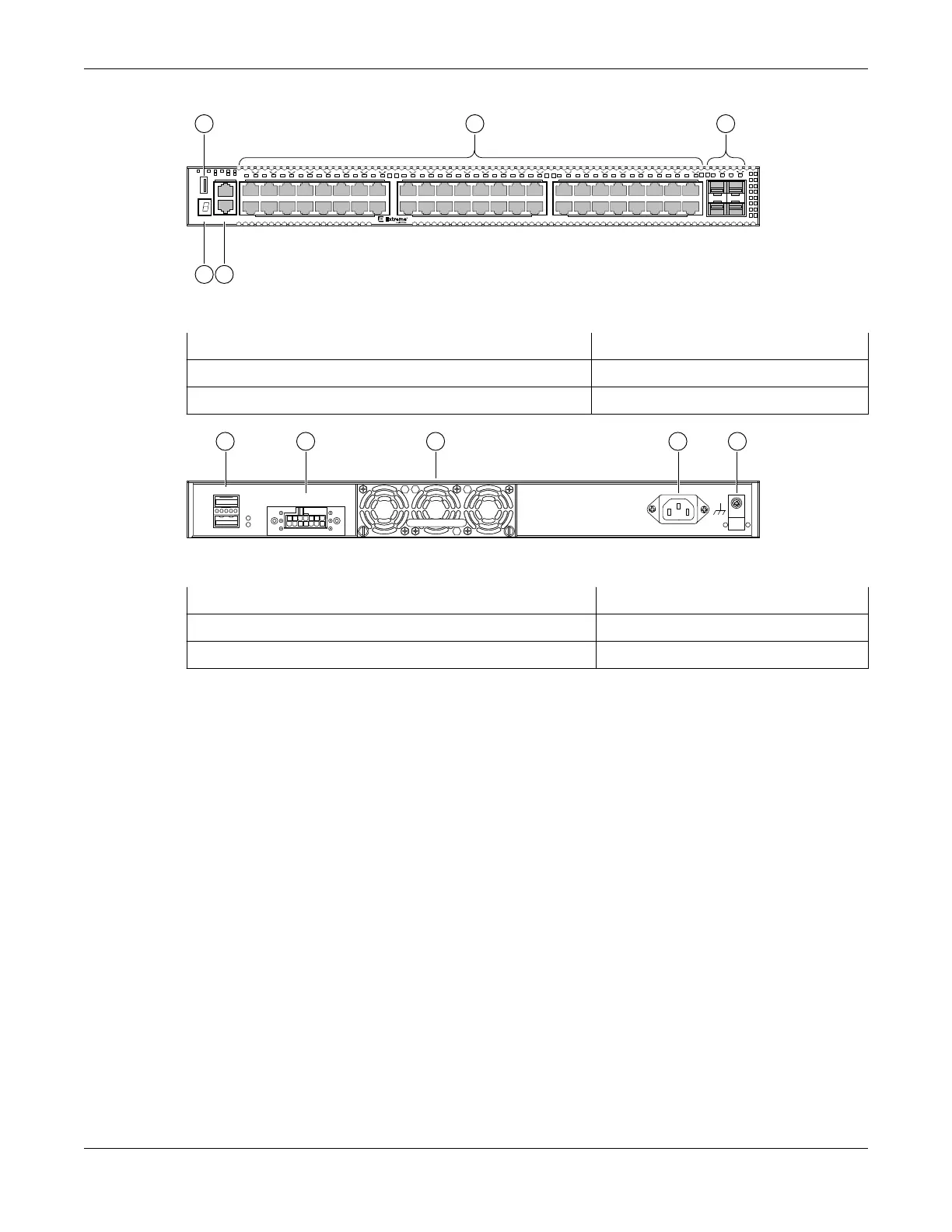

Figure 42: X450-G2-48t-GE4 Front Panel
1 = Stack number indicator 4 = 10/100/1000BASE-T ports
2 = Console port/Ethernet management port 5 = SFP 1GBASE-X ports
3 = USB port
Redundant P ower Input
! See M anual
1
2
SummitStack-V84
4 531 2
Figure 43: X450-G2-48t-GE4 Rear Panel
1 = 21 Gb stacking ports (QSFP+)
4 = AC power input connector
2 = Redundant power supply (RPS) connector 5 = Grounding screw
3 = Front-to-back fan module slot
ExtremeSwitching X450-G2-48t-10GE4 Switch Ports and Slots
X450-G2-48t-10GE4 switch ports and slots include:
• 48 front panel ports of 10/100/1000BASE-T (ports 1–48).
• Four front panel ports of 10GBASE-X SFP+ (ports 49–52, with ports 51 and 52
configurable to be
stacking ports). The SFP+ ports are dual speed (1 Gb/10 Gb).
• Front panel USB port.
• Ethernet management port 1 x 10/100/1000BASE-T.
• Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
• One
fixed power supply.
• One rear redundant power supply connector.
• One rear slot for fan module with front-to-back
airflow.
• Two dedicated QSFP-form factor 21 Gb stacking ports on the rear panel.
ExtremeSwitching Switches
ExtremeSwitching X450-G2-48t-10GE4 Switch Ports
and Slots
ExtremeSwitching Hardware Installation Guide 51
