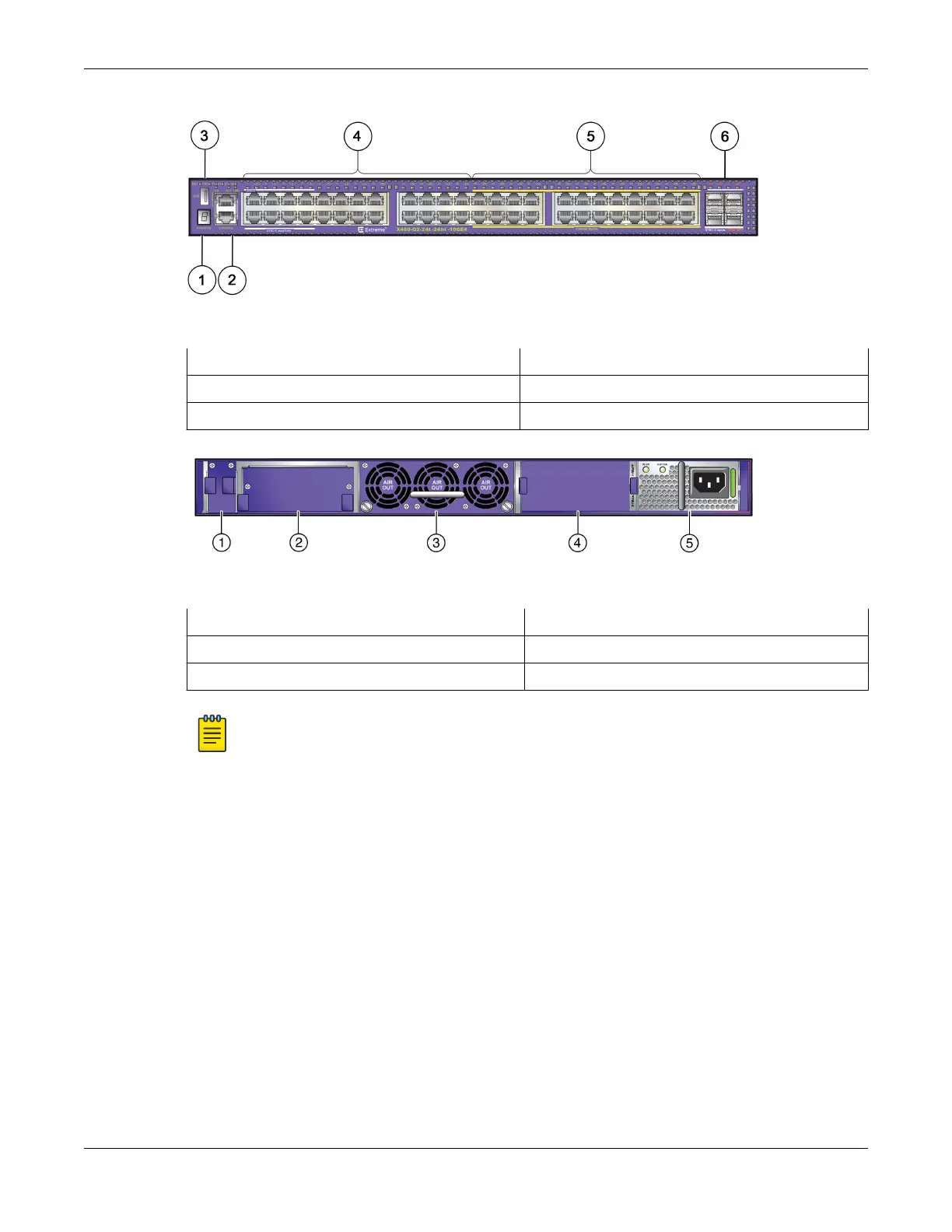

Figure 68: X460-G2-24t-24ht-10GE4 Front Panel
1 = Stack number indicator 4 = 10/100/1000BASE-T ports
2 = Console port/Ethernet management port 5 = 10/100/1000BASE-T ports with half-duplex
3 = USB port 6 = SFP+ 10GBASE-X ports
Figure 69: X460-G2-24t-24ht-10GE4 Rear Panel
1 = TM-CLK (clock) slot cover
4 = Blank power supply cover
2 = VIM slot cover 5 = Power supply slot
3 = Fan module slot
Note
It is not possible to collect statistics on packet collisions for the X460-G2-24t-24ht-10GE4
switch.
ExtremeSwitching X460-G2-48x-10GE4 Switch Ports and Slots
X460-G2-48x-10GE4 switch ports and slots include:
• 48 front panel ports of 100/1000BASE-X (ports 1-48).
• Four front panel ports of 10GBASE-X SFP+ (ports 49-52, with two of these ports
configurable to be
stacking ports).
• One front panel USB port.
• Ethernet management port 1 x 10/100/1000BASE-T.
• Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
• One rear panel VIM slot
• One rear panel TM-CLK (clock) slot.
ExtremeSwitching Switches
ExtremeSwitching X460-G2-48x-10GE4 Switch Ports
and Slots
ExtremeSwitching Hardware Installation Guide 67
