Installing an RPS-150XT in a Rack
To install the RPS-150XT in the three-slot modular shelf (STK-RPS-1005CH3), you must first install the
shelf in a 19-inch rack.
Caution
Observe all ESD precautions when handling sensitive electronic equipment.
Caution
Before rack-mounting the device, ensure that the rack can support it without compromising
stability. Otherwise, personal injury and/or equipment damage can result.
To install the RPS-150XT in a rack, follow these steps.
1. Secure the front of the three-slot modular shelf (STK-RPS-1005CH3) to the rack by screwing four
rack screws into the mounting ears on the right and left front of the shelf.
See Figure 4.

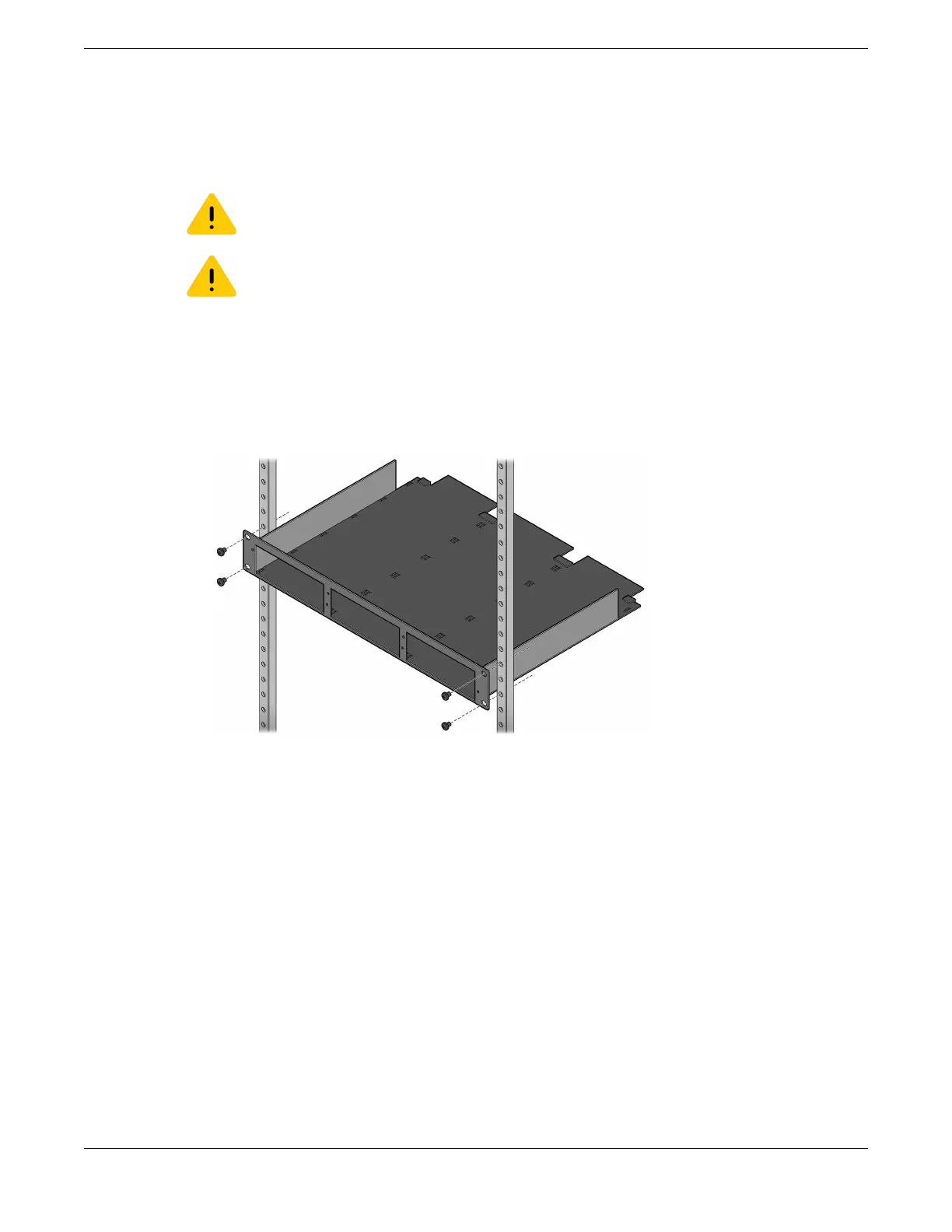

Figure 216: Securing the Three-slot Modular Shelf to a Rack
Installing an RPS-150XT in a Rack
Installing External Power Supplies
274 ExtremeSwitching Hardware Installation Guide
