2. For non-PoE models, after attaching the PSU bracket to the V300, attach the PSU(s) to the PSU
mounting brackets using two cable ties:

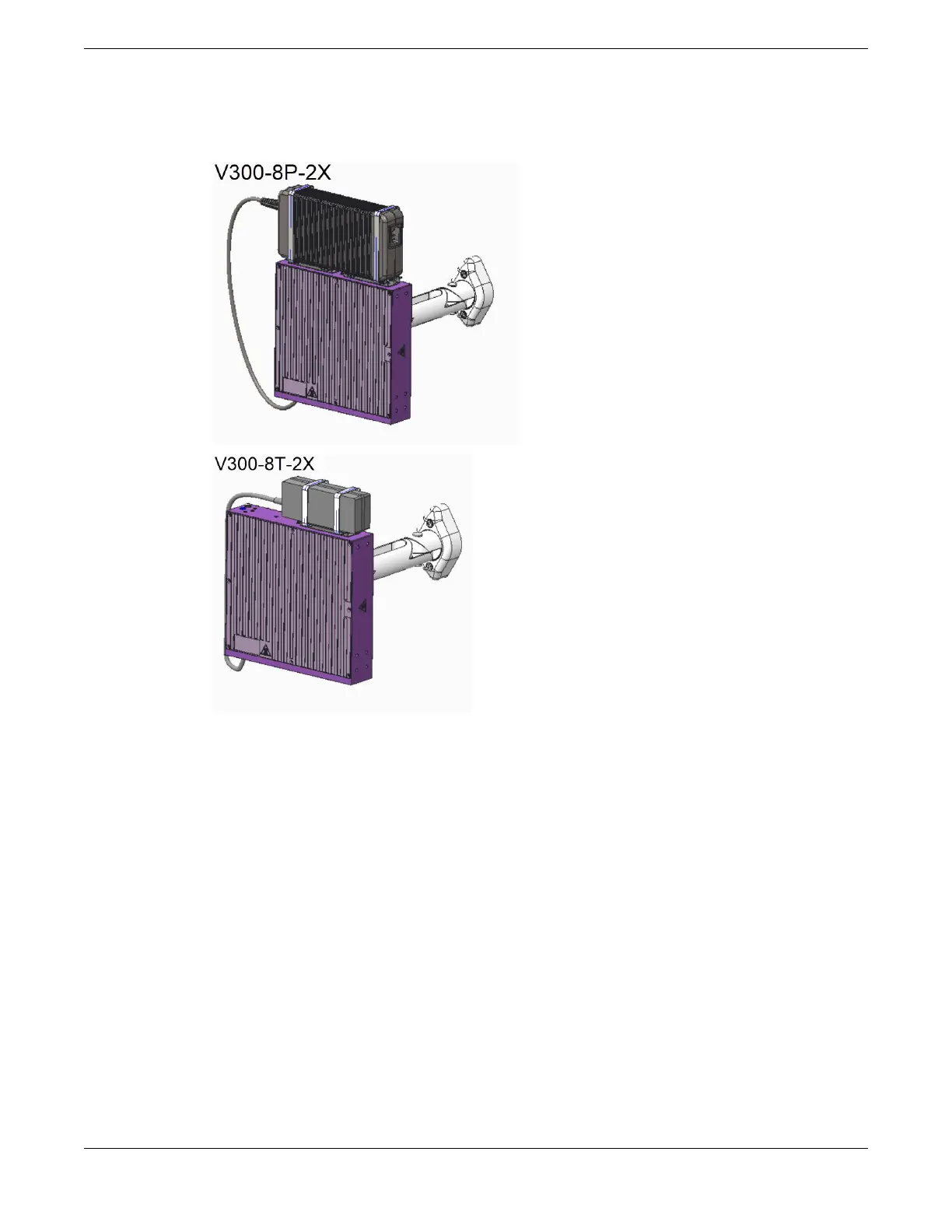

Figure 242: V300-8P/8T-2X VESA Mounting with PSU
3. Connect the LAN/Ethernet cables to the extender.
4. When power is connected, verify that the SYS LED on the port extender turns green.
Install a V300 in a Single Rack Mount
The following tools and materials are required to install a non-PoE V300 Virtual Port Extender to a
single rack mount:
• ESD-preventive wrist strap
• M4 #2 Phillips screwdriver (magnetic screwdriver recommended)
• XN-2P-RMTKIT-1CS-001 - Single rack mount kit
1. Remove all contents of the single rack mount kit (XN-2P-RMTKIT-1CS-001).
2. Attach the short and long ear brackets to the V300 using the screws provided.
3. Secure the bracket
flanges to the rack using the customer-provided screws appropriate for the rack
you are using.
Installing Expansion Modules
Install a V300 in a Single Rack Mount
ExtremeSwitching Hardware Installation Guide 303
