ExtremeSwitching X465 Series Switch LEDs
ExtremeSwitching X465 Front Panel Port LEDs, as described in Table 18:
Table 18: X465 Port LEDs
LED Color/State Port State
SYStem status LED
(Legacy MGMT function)
Green Flash slowly POST Passed,
normal operation, blinks on standalone switch,
stack master, and backup nodes in a stack;
oîš‚ for standby nodes in a stack
Green Blinking POST in progress
Amber Blinking POST failed or overheat
PSU status LEDs P1/P2 Green Power On
Oîš‚ Power oîš‚ and no power attached
Amber Blinking Power supply failures
Fan status LEDS (F1, F2 and F3) Green Normal operation
Amber Blinking Fan failure
Bluetooth Status LED (BT) Green Blinking Bluetooth pairing in progress
Green Bluetooth connected
Locator LED (LOC) Blue Blinking Locator function
Ethernet Port 1-24 or 1-48
VIM5 Port 25-32 or 49-56
Figure 82 shows the two alternate mode LEDs for X465 switches: SPD and STK. The Mode button is
used to cylce through three display modes for the port LEDs. SPD and STK display modes will expire
after 30 seconds, at which time the port LEDs will revert to the default SYS mode.

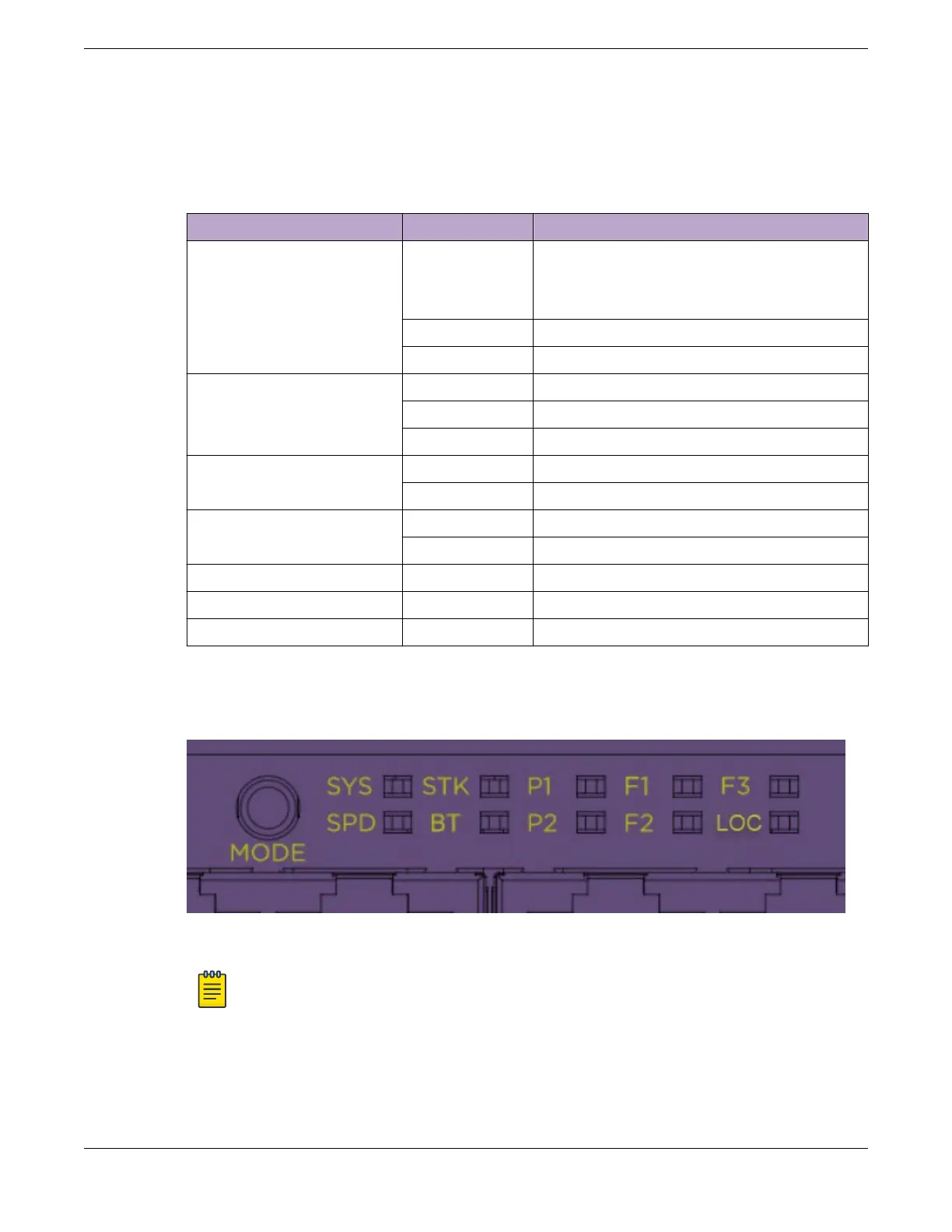

Figure 82: X465 Mode and System Status LEDs
Note
Front-panel PoE ports use Amber to indicate PoE states.
ExtremeSwitching Switches ExtremeSwitching X465 Series Switch LEDs
ExtremeSwitching Hardware Installation Guide 81
