RPS-150XT Connector
See Figure 317 and Table 335 on page 467 for pin locations and function.
Note
The following information is for troubleshooting purposes only. For proper operation, use only
the RPS cable supplied with the RPS-150XT. This cable is specially designed for this
application and meets all necessary regulatory and safety standards.
Caution
The use of non-approved cables will void your warranty.

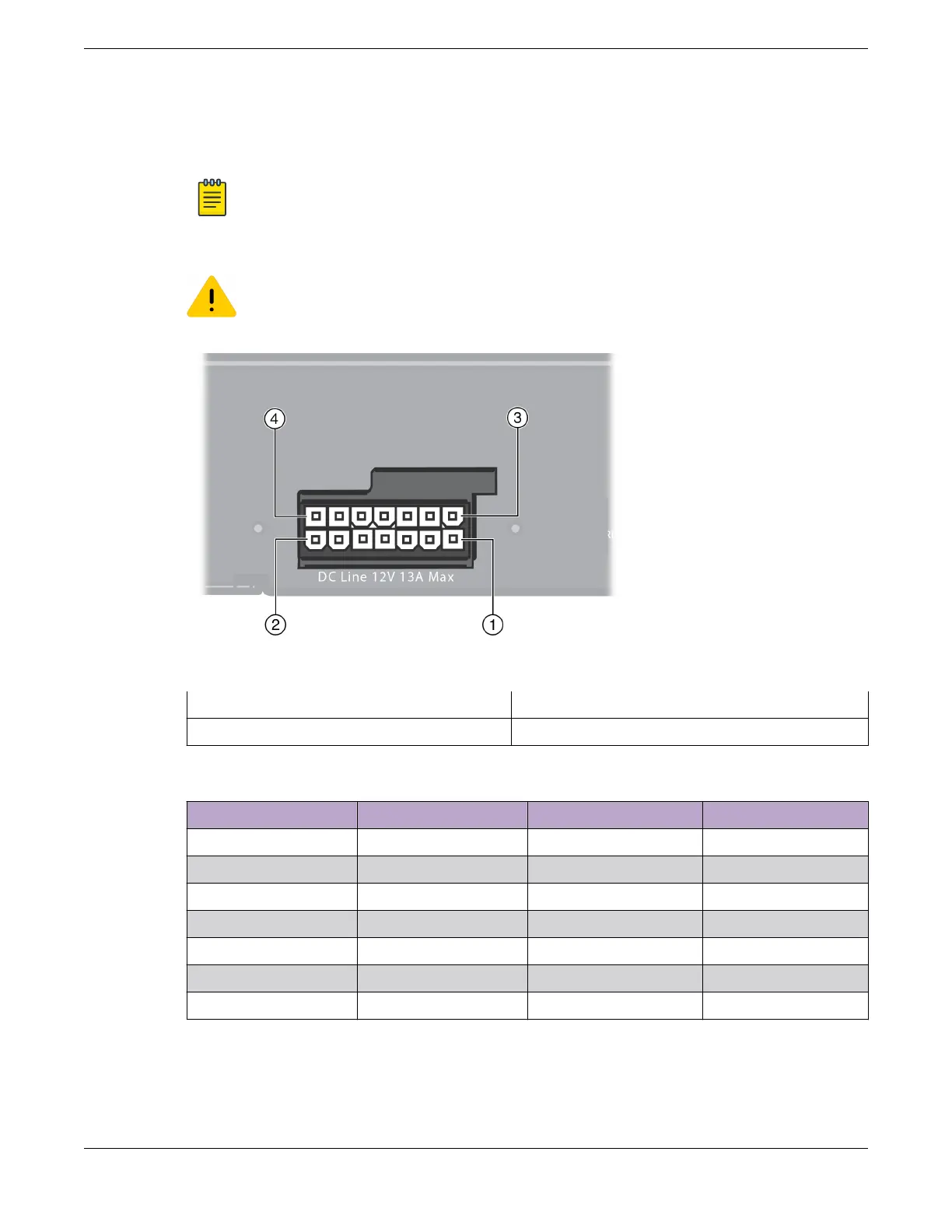

Figure 317: RPS-150XT Connector Pin Locations
1 = Pin 1
3 = Pin 8
2 = Pin 7 4 = Pin 14
Table 335: RPS-150XT Connector Pin Functions
Pin Function Pin Function
1 Ground 8 Spare pin
2 Spare pin 9 Spare pin
3 12 V power 10 Power present
4 12 V power 11 Start 1
5 12 V power 12 Start 2
6 12 V power 13 Power good
7 Ground 14 Ground
Technical Specifications RPS-150XT Connector
ExtremeSwitching Hardware Installation Guide 467
