5. For a more secure attachment, attach the two PSU mounting brackets to the rack using customer-
provided screws:

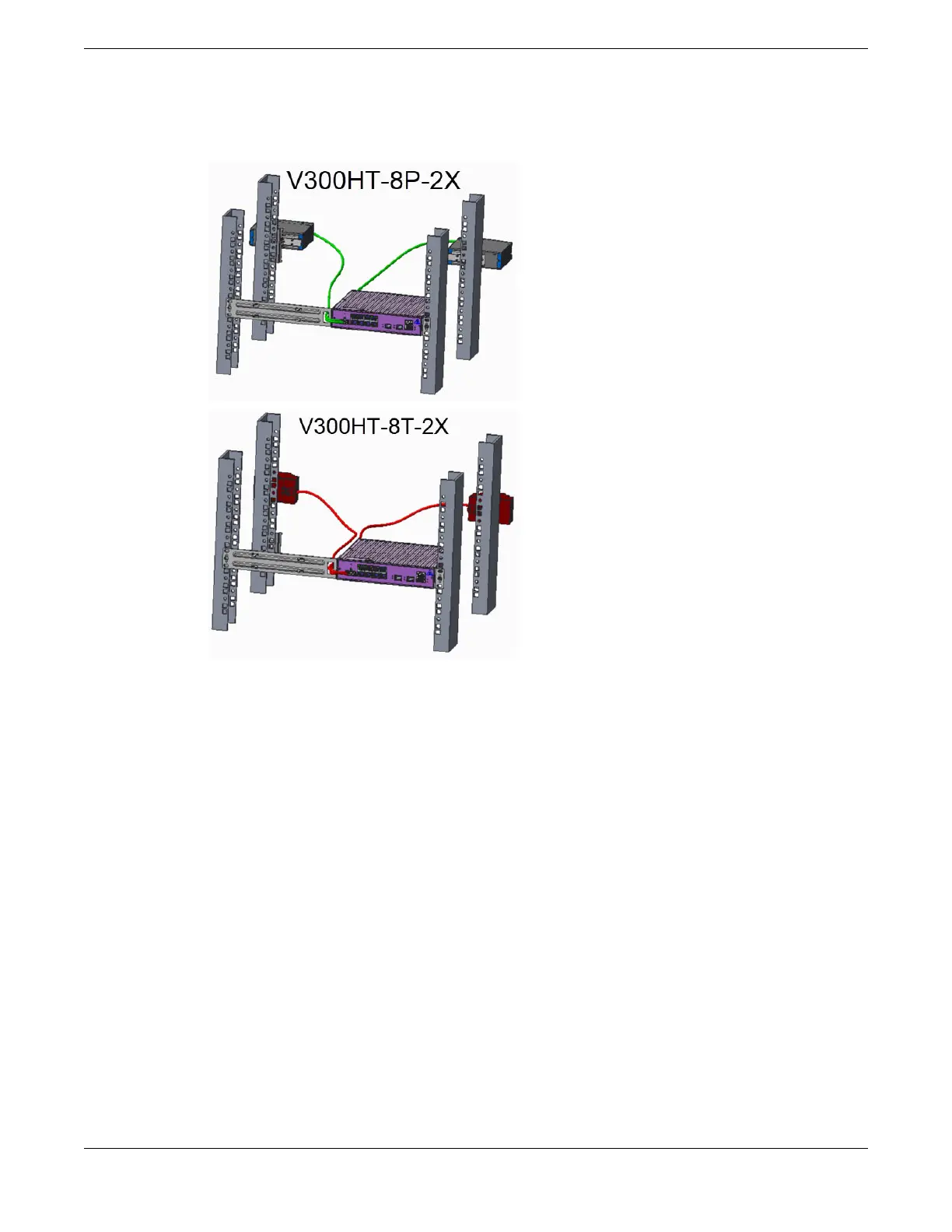

Figure 245: V300HT-8P/8T-2X Single Rack Mounting with DIN Rail and PSUs
6. Alternatively, the PSU can be mounted to the long rack ear using cable ties.
Install a V300 in a Dual Rack Mount
The following tools and materials are required to install a non-PoE V300 Virtual Port Extender to a dual
rack mount:
• ESD-preventive wrist strap
• M4 #2 Phillips screwdriver (magnetic screwdriver recommended)
• XN-2P-RMTKIT-2CS-001 - Dual rack mount kit
1. Remove all contents of the dual rack mount kit (XN-2P-RMTKIT-2CS-001).
2. Attach one short ear bracket to the outer side of each V300 using the screws provided.
3. Attach the joint brackets to the inward side of each V300 (one with tapped screw holes facing
forward, one facing rearward, using the screws provided).
4. Attach the two joint brackets together using the screws provided.
Install a V300 in a Dual Rack Mount
Installing Expansion Modules
306 ExtremeSwitching Hardware Installation Guide
