• Ethernet management port (10/100/1000BASE-T).
• Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
• One front panel USB 2.0 port, operational on switches running ExtremeXOS version 22.2 or later.
• One rear redundant power supply connector.
The X440-G2 24fx-GE4 switch supports an operating range from 0°C to 60°C.

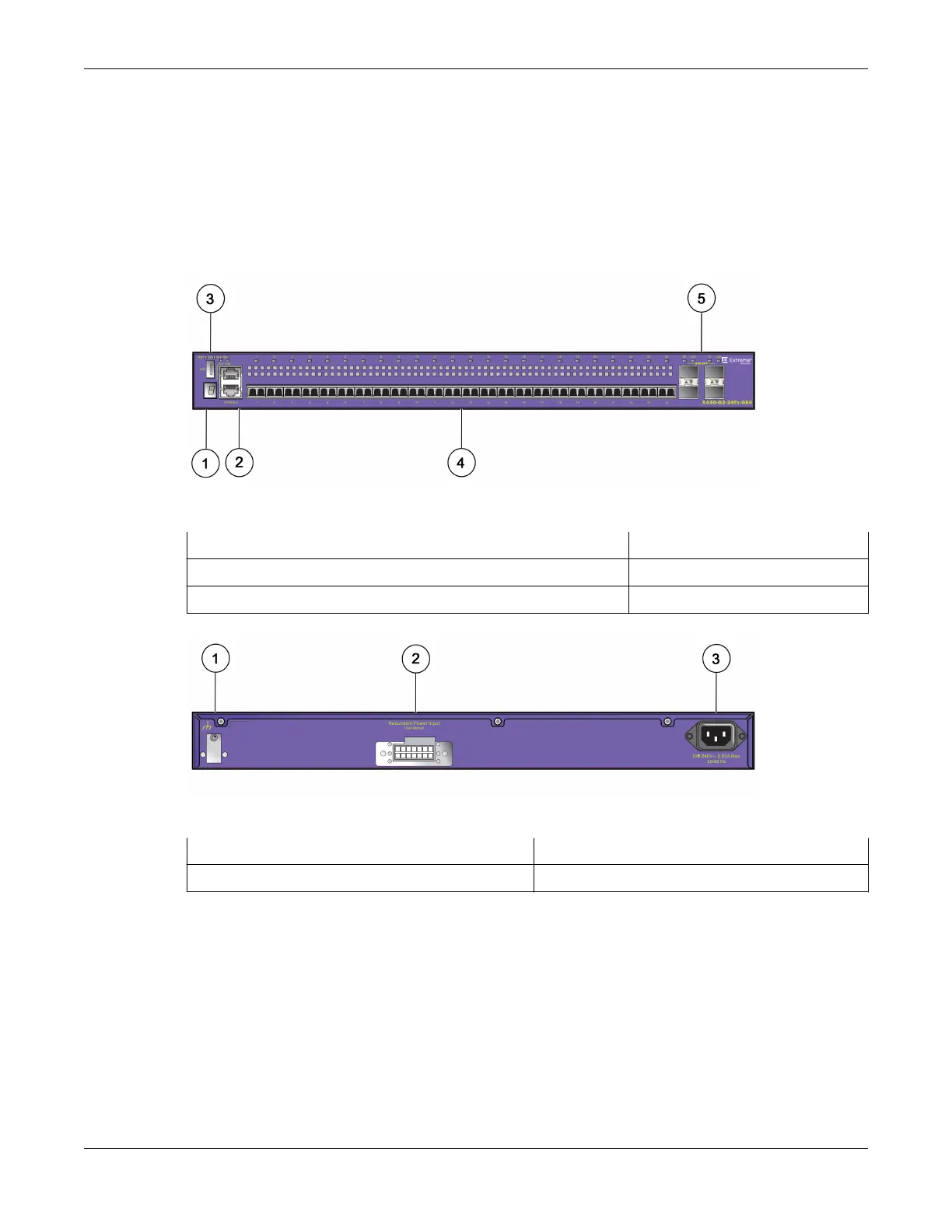

Figure 34: ExtremeSwitching X440-G2-24fx-GE4 Front Panel
1 = Stack number indicator 4 = 100BASE-FX LC connectors
2 = Console port/Ethernet management port 5 = 1GBASE-X SFP ports
3 = USB port (active with ExtremeXOS version 22.2 or later)
Figure 35: ExtremeSwitching X440-G2-24fx-GE4 Rear Panel
1 = Grounding lug
3 = AC power input socket
2 = Redundant power input
ExtremeSwitching X440-G2-24t-GE4 Switch Ports and Slots
The ExtremeSwitching X440-G2-24t-GE4 switch ports and slots include:
• 24 front panel 10/100/1000BASE-T ports (RJ45). Both half-duplex and full-duplex communication
are supported on ports 1 through 16. Ports 17 through 24 are full-duplex only.
• Four unpopulated front panel 1GBASE-X SFP ports.
• Ethernet management port (10/100/1000BASE-T).
• Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
ExtremeSwitching X440-G2-24t-GE4 Switch Ports and
Slots ExtremeSwitching Switches
44 ExtremeSwitching Hardware Installation Guide
To Next Page
