1 = DC input 2 = 10/100/1000BASE-T PoE+ ports
3 = 10Gb SFP+ ports 4 = USB port
5 = Console/Management port
Figure 122: V300 Virtual Port Extender Rear Panel
V300-8T-2X Model
The Virtual Port Extender V300-8T-2X model oers the following features:
• Eight 10/100/1000BASE-T half/full duplex ports
• Two 10Gb SFP+ ports
• One USB port
• One console/management port
• One DC input jack
The V300-8T-2X model requires that ExtremeXOS (EXOS) version 30.6 (or later) be installed on the
switch to which it is attached. For more information about
configuring EXOS for use with this
equipment, see the ExtremeXOS 30.7 User Guide.
The V300-8T-2X model is shipped with one 40W AC PS FRU (Model XN-ACPWR-40W).

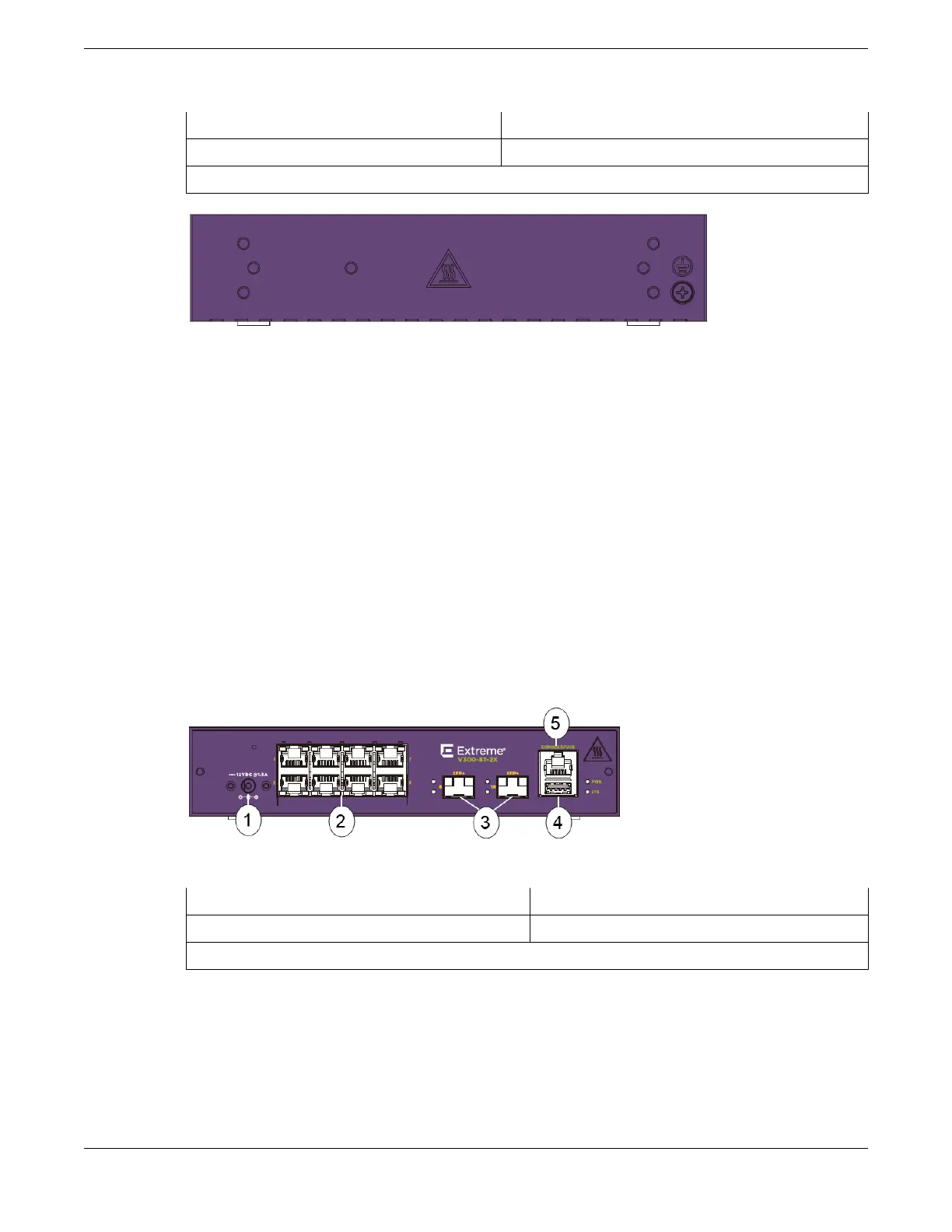

Figure 123: V300-8T-2X Front Panel
1 = DC input
2 = 10/100/1000BASE-T ports
3 = 10Gb SFP+ ports 4 = USB port
5 = Console/Management port
V300-8T-2X Model Expansion Modules
142 ExtremeSwitching Hardware Installation Guide
