CONSOLE
Summit
™
X450-G2-24p-GE4
GbES FP
25
27
28
26
MGT FAN P1 P2 S
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16
18
17 19
20
21
22
23
24
CLK ACT LINK
S2
STACK NO.
Management
5
3
4
1
2

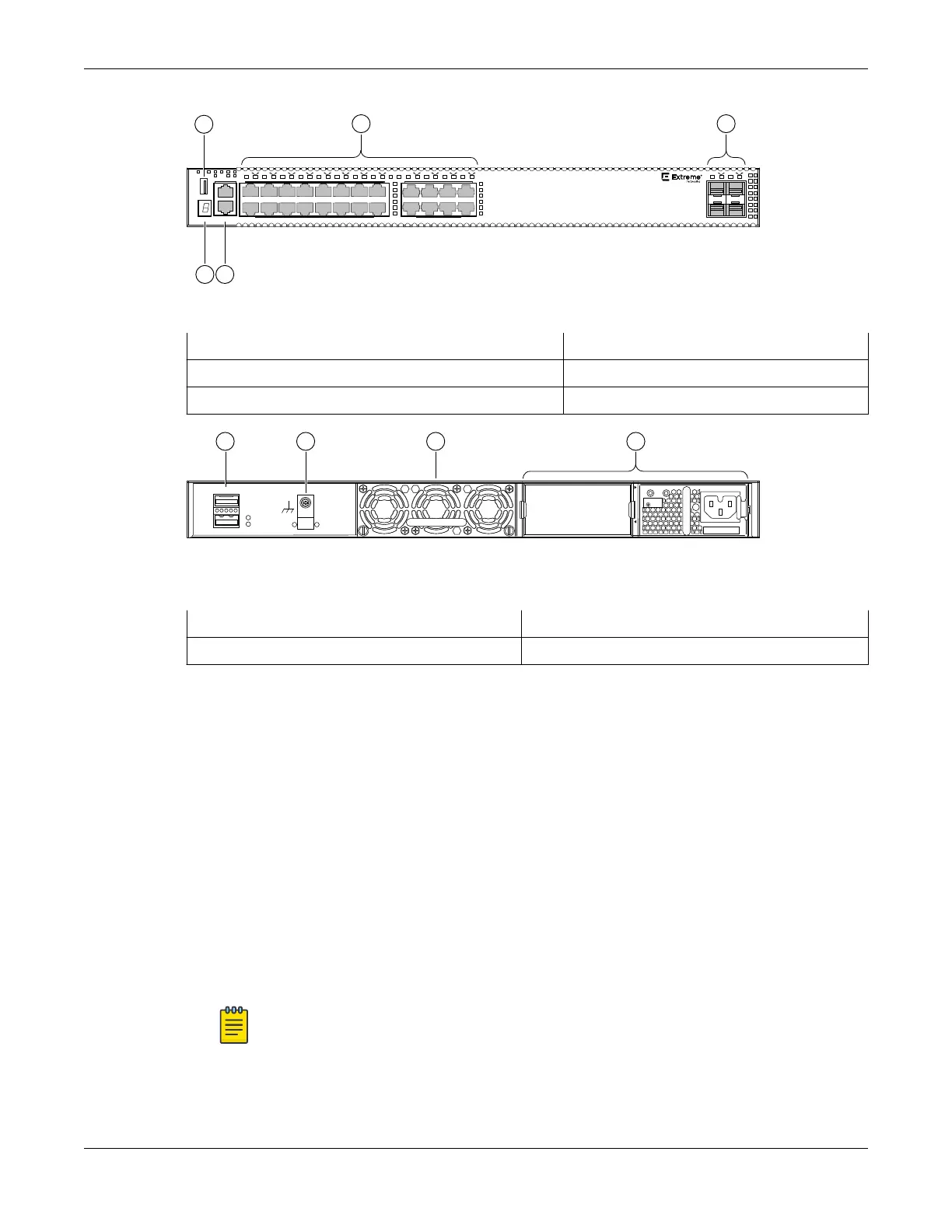

Figure 46: X450-G2-24p-GE4 Front Panel
1 = Stack number indicator 4 = PoE+ 10/100/1000BASE-T ports
2 = Console port/Ethernet management port 5 = SFP 1G ports
3 = USB port
PSU -2PS
IN.OK
AIR OUT
(AFO)
OUT. OK
115V-240V- 12-6A 50-60Hz
CLEI LABEL
U-1
SummitStack-V84
431 2
Figure 47: X450-G2-24p-GE4 Rear Panel
1 = 21 Gb stacking ports (QSFP+)
3 = Front-to-back fan module slot
2 = Grounding screw 4 = PoE+ power supply bays
ExtremeSwitching X450-G2-24p-10GE4 Switch Ports and Slots
X450-G2-24p-10GE4 switch ports and slots include:
• 24 front panel PoE+ ports of 10/100/1000BASE-T (ports 1–24).
• Four front panel ports of 10GBASE-X SFP+ (ports 25–28, with ports 27 and 28
configurable to be
stacking ports). The SFP+ ports are dual speed (1 Gb/10 Gb).
• Front panel USB port.
• Ethernet management port 1 x 10/100/1000BASE-T.
• Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
• One rear slot for fan module with front-to-back
airflow.
• Two dedicated QSFP-form factor 21 Gb stacking ports on the rear panel.
• Rear dual power supply slots with front-to-back airflow.
Note
Unused power supply slots must be covered with blank panels.
ExtremeSwitching Switches
ExtremeSwitching X450-G2-24p-10GE4 Switch Ports
and Slots
ExtremeSwitching Hardware Installation Guide 53
