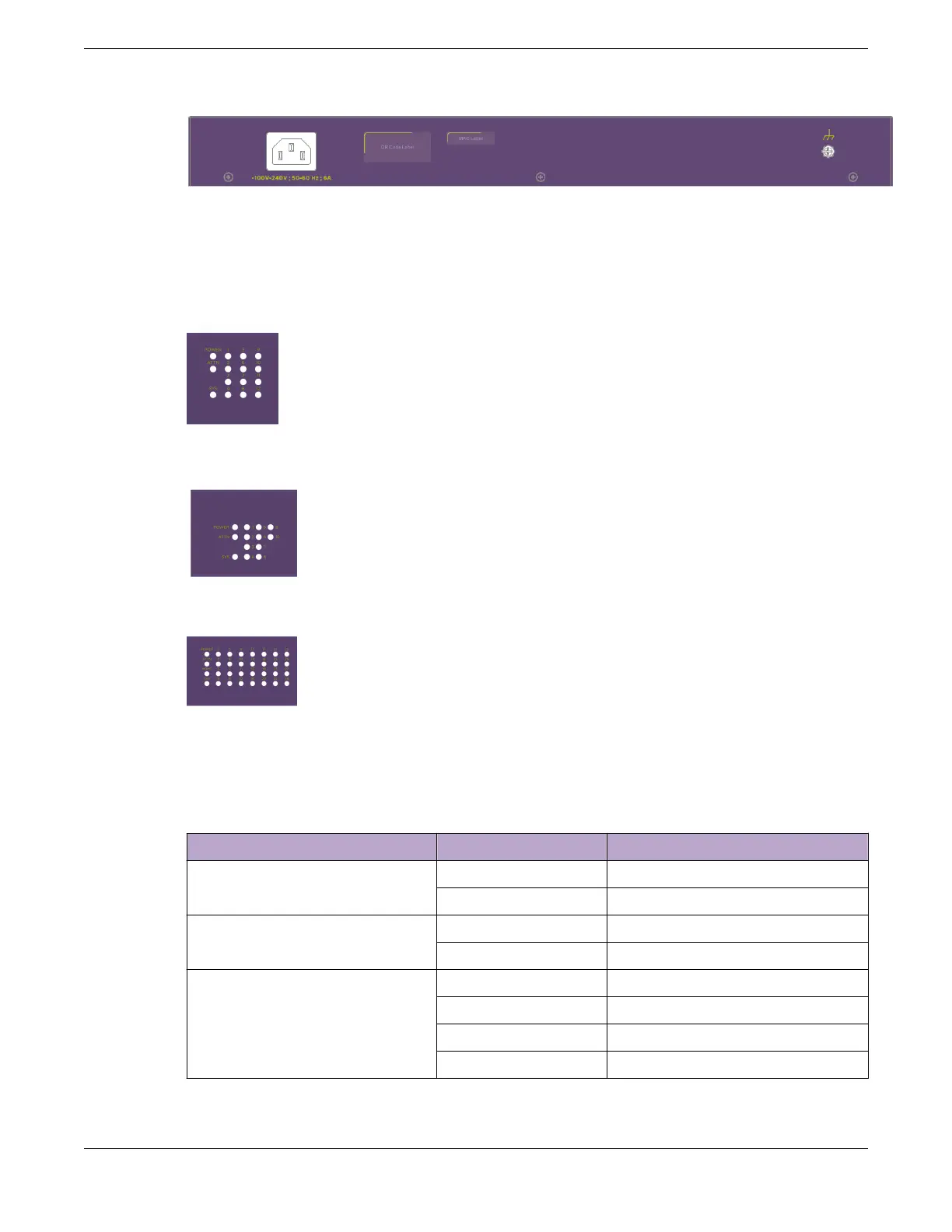

Figure 10: X435-24P-4S Rear Panel
ExtremeSwitching X435 Series Switch LEDs
The following figures illustrate the X435 front panel LEDs:
Figure 11: X435-8T/8P LEDs
Figure 12: X435-8P-2T-W LEDs
Figure 13: X435-24T/24P LEDs
The X435 front panel LEDs behave as follows:
Table 5: X435 System LEDs
LED Color/State Port State
Power Solid Green Switch power on
O Switch power o
MGMT (24T/24P only) Solid Green OOB Link
O OOB Link down
ATTN Solid Green Use not defined in 30.5
O Use not defined in 30.5
Solid Red Use not defined in 30.5
O Use not defined in 30.5
ExtremeSwitching X435 Series Switch LEDs ExtremeSwitching Switches
28 ExtremeSwitching Hardware Installation Guide
