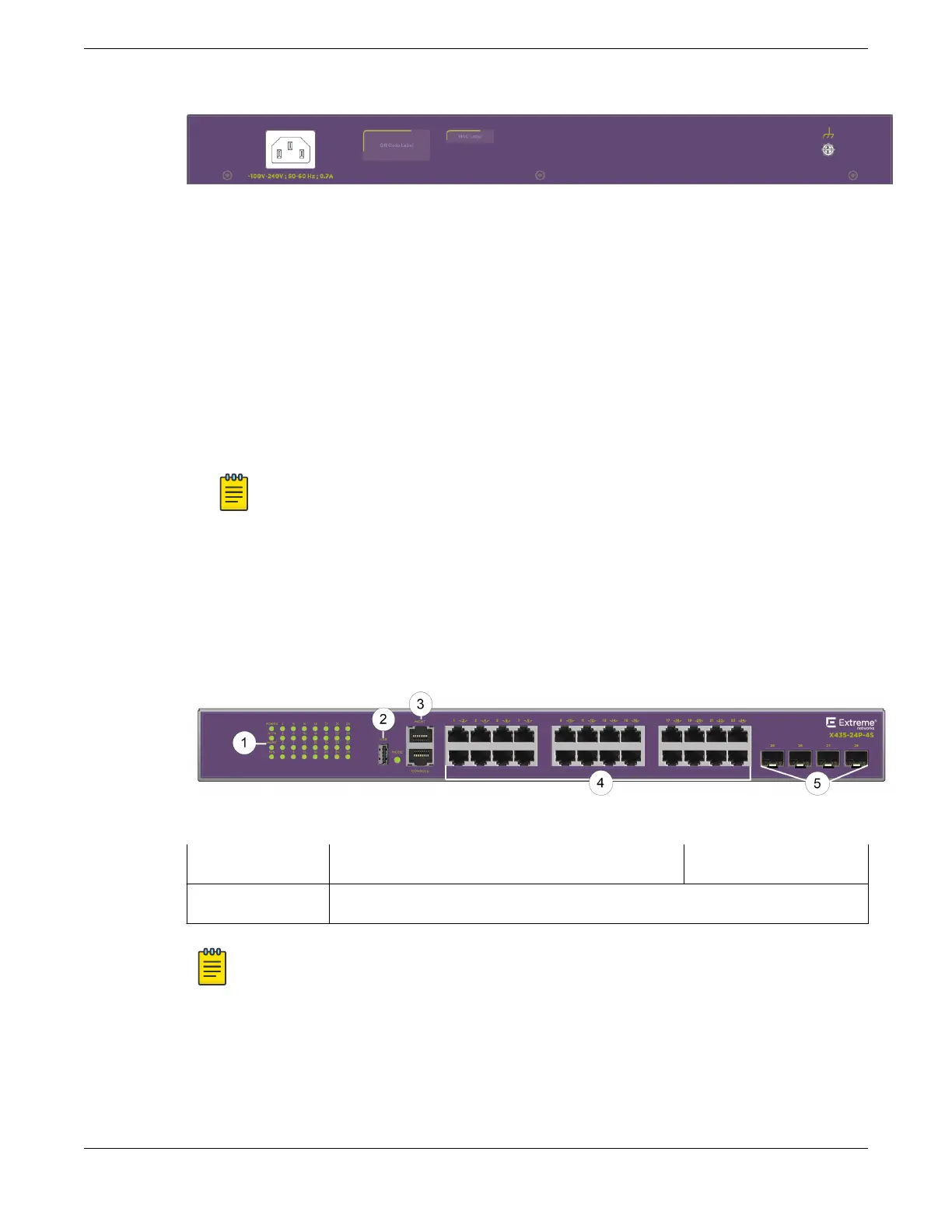

Figure 8: X435-24T-4S Rear Panel
ExtremeSwitching X435-24P-4S Switch Features
The front panel of the X435-24P-4S switch includes:
• Twenty-four 10/100/1000BASE-T PoE+ ports that provide 24 Gbps of high-density copper
connectivity. In addition, all of these ports (ports 1-24) support the POE protocol IEEE802.3af and
PoE+ protocol IEEE802.3at standard.
All X435 PoE models can provide up to 15.4W by using PoE protocol, and provide up to 30W by
using PoE+ protocol on a single port.
• Four unpopulated 1/2.5G SFP ports that support fiber connectivity
Note
2.5Gb uplink support is a future capability
• One RJ-45 console port
• One RJ-45 management port
• One USB A port
• LEDs to indicate port status and switch operating conditions
For a description of the LEDs and their operation, see ExtremeSwitching X435 Series Switch LEDs on
page 28.
Figure 9: X435-24P-4S Front Panel
1 = System LEDs 3 = RJ-45 console and management ports 5 = 1/2.5G SFP ports*
2 = USB A port 4 = 10/100/1000BASE-T PoE+ ports
Note
*2.5Gb uplink support is a future capability
The rear panel of the X435-24P-4S switch includes:
• AC power input socket
The internal AC power supply operates from 100VAC to 240VAC.
ExtremeSwitching Switches
ExtremeSwitching X435-24P-4S Switch Features
ExtremeSwitching Hardware Installation Guide 27
