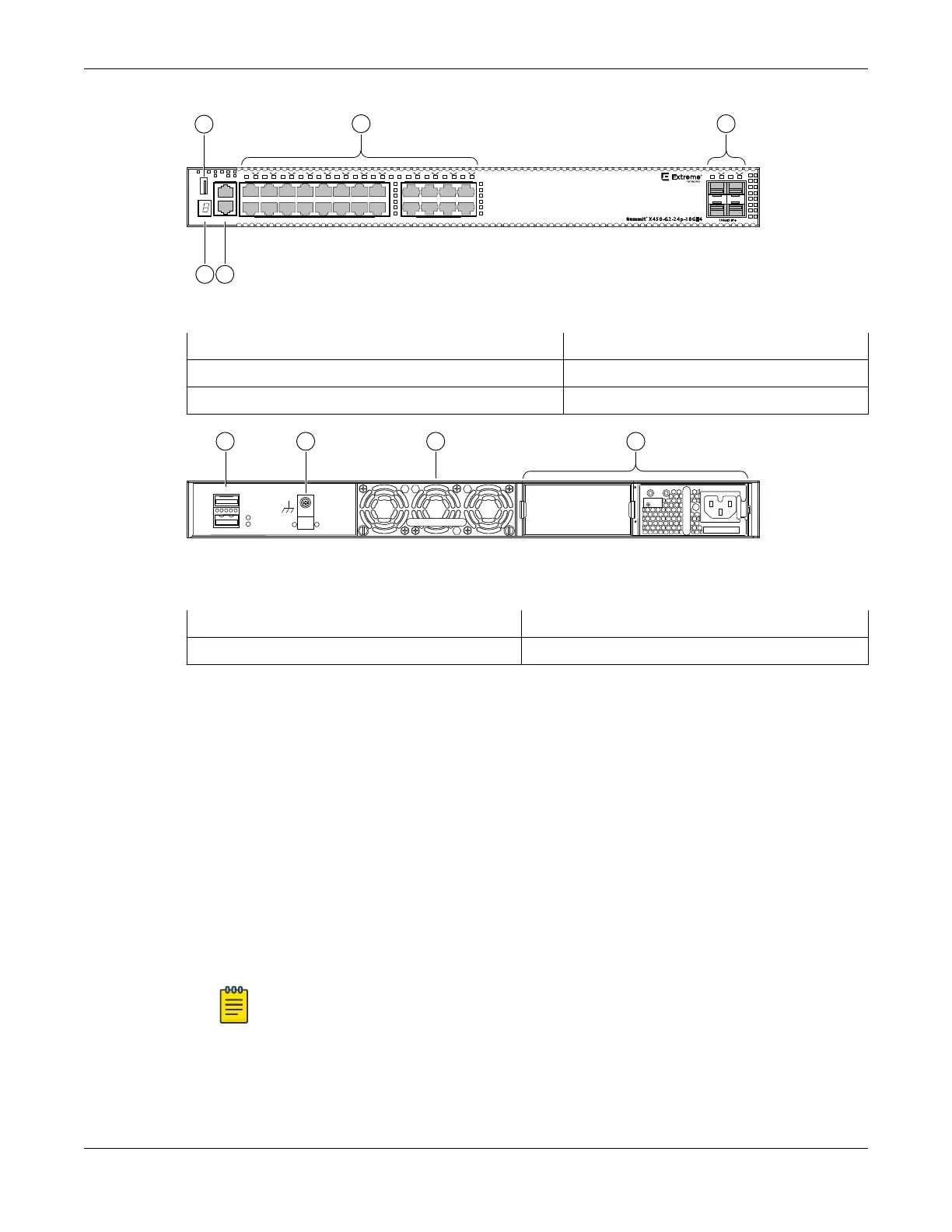

Figure 48: X450-G2-24p-10GE4 Front Panel
1 = Stack number indicator 4 = PoE+ 10/100/1000BASE-T ports
2 = Console port/Ethernet management port 5 = SFP+ 10GBASE-X ports
3 = USB port
PSU -2PS
IN.OK
AIR OUT
(AFO)
OUT. OK
115V-240V- 12-6A 50-60Hz
CLEI LABEL
U-1
SummitStack-V84
431 2
Figure 49: X450-G2-24p-10GE4 Rear Panel
1 = 21 Gb stacking ports (QSFP+)
3 = Front-to-back fan module slot
2 = Grounding screw 4 = PoE+ power supply bays
ExtremeSwitching X450-G2-48p-GE4 Switch Ports and Slots
X450-G2-48p-GE4 switch ports and slots include:
• 48 front panel PoE+ ports of 10/100/1000BASE-T (ports 1–48).
• Four front panel ports of 1GBASE-X SFP (ports 49–52).
• One front panel USB port.
• Ethernet management port 1 x 10/100/1000BASE-T.
• Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
• One rear slot for fan module with front-to-back
airflow.
• Two dedicated QSFP-form factor 21 Gb stacking ports on the rear panel.
• Rear dual power supply slots with front-to-back
airflow.
Note
Unused power supply slots must be covered with blank panels.
ExtremeSwitching X450-G2-48p-GE4 Switch Ports and
Slots ExtremeSwitching Switches
54 ExtremeSwitching Hardware Installation Guide
