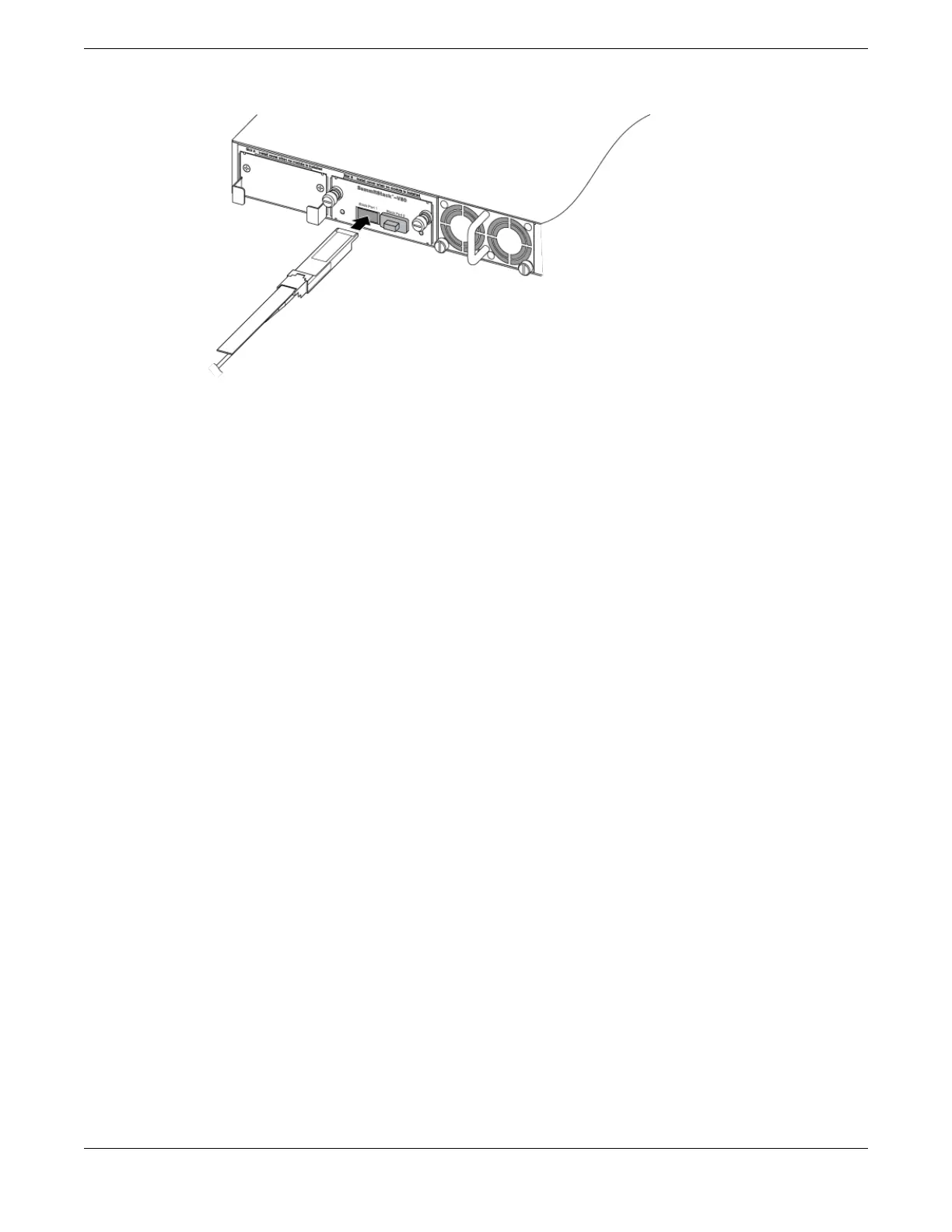

Figure 168: Connecting a QSFP+ Active Optical Direct-Attach Cable to a
SummitStack-V Module
2. Push the connector into the port until you hear it click into place.
Connecting Your Stack to the Management Network
Before you can configure ExtremeXOS for a new stack, your management console must be connected
to at least one switch in the stack.
Connect your management console to the Ethernet management port on the switch that will become
the stack master node. If you plan to configure redundancy, we recommend connecting to the console
ports of all switches in the stack that will be master-capable.
If you followed the cabling examples in Connecting the Switches to Form the Stack Ring on page 213,
and if you use the Easy Setup configuration procedure, only slots 1 and 2 will be allowed to become the
master node. However, you may connect all switch management ports in the stack if you choose to do
so. There is an alternate IP address configuration that will enable you to log in directly to each switch in
the stack through its Ethernet management port.
See the ExtremeXOS 30.7 User Guide for instructions to perform the software configuration for your
stack.
Connecting Your Stack to the Management Network
Building Stacks
220 ExtremeSwitching Hardware Installation Guide
