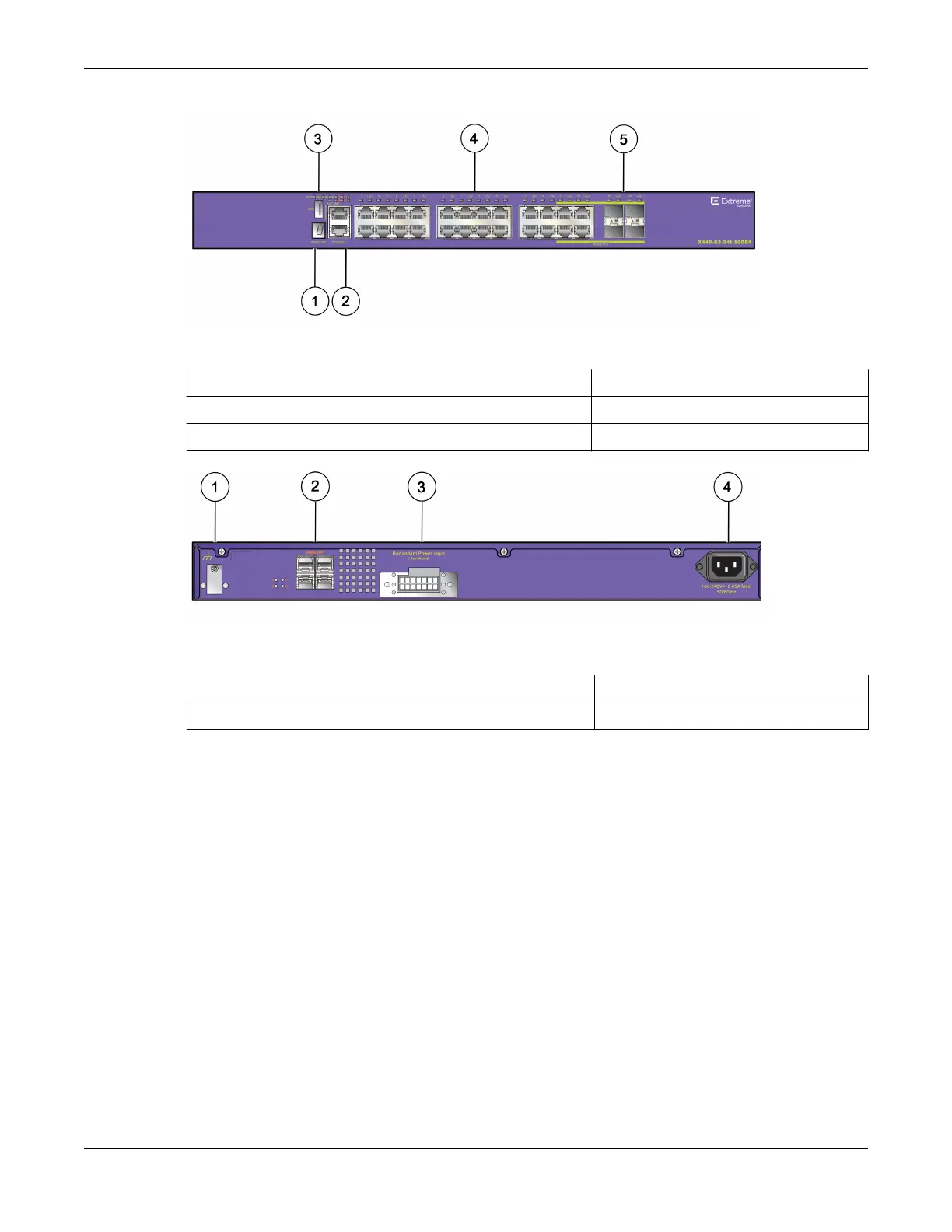

Figure 18: ExtremeSwitching X440-G2-24t-10GE4 Front Panel
1 = Stack number indicator 4 = 10/100/1000BASE-T copper ports
2 = Console port/Ethernet management port 5 = 1000BASE-X SFP combination ports
3 = USB port (active with ExtremeXOS version 22.2 or later)
Figure 19: ExtremeSwitching X440-G2-24t-10GE4 Rear Panel
1 = Grounding lug
3 = Redundant power input
2 = SFP Ports upgradeable to 10GBASE-X 4 = AC power input socket
ExtremeSwitching X440-G2-24x-10GE4 Switch Ports and Slots
The ExtremeSwitching X440-G2-24x-10GE4 switch ports and slots include:
• 24 front panel 1GBASE-X SFP ports.
• Four unpopulated front panel 10/100/1000BASE-T (RJ45) ports.
• Four unpopulated rear panel 1GBASE-X SFP+ ports that can be used as either 1Gb ports or 10Gb
ports, where the 10Gb
configuration requires an upgrade through additional licensing..
Alternately, you can convert two of the ports to stacking ports using the enable stacking-
support command. Doing so would provide you with the option of two 1Gb ports and two stack
ports or two 10Gb ports and two stack ports. In the latter
configuration, an additional license would
be required for the 10Gb non-stacking ports.
• Ethernet management port (10/100/1000BASE-T).
• Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
ExtremeSwitching Switches
ExtremeSwitching X440-G2-24x-10GE4 Switch Ports
and Slots
ExtremeSwitching Hardware Installation Guide 35
