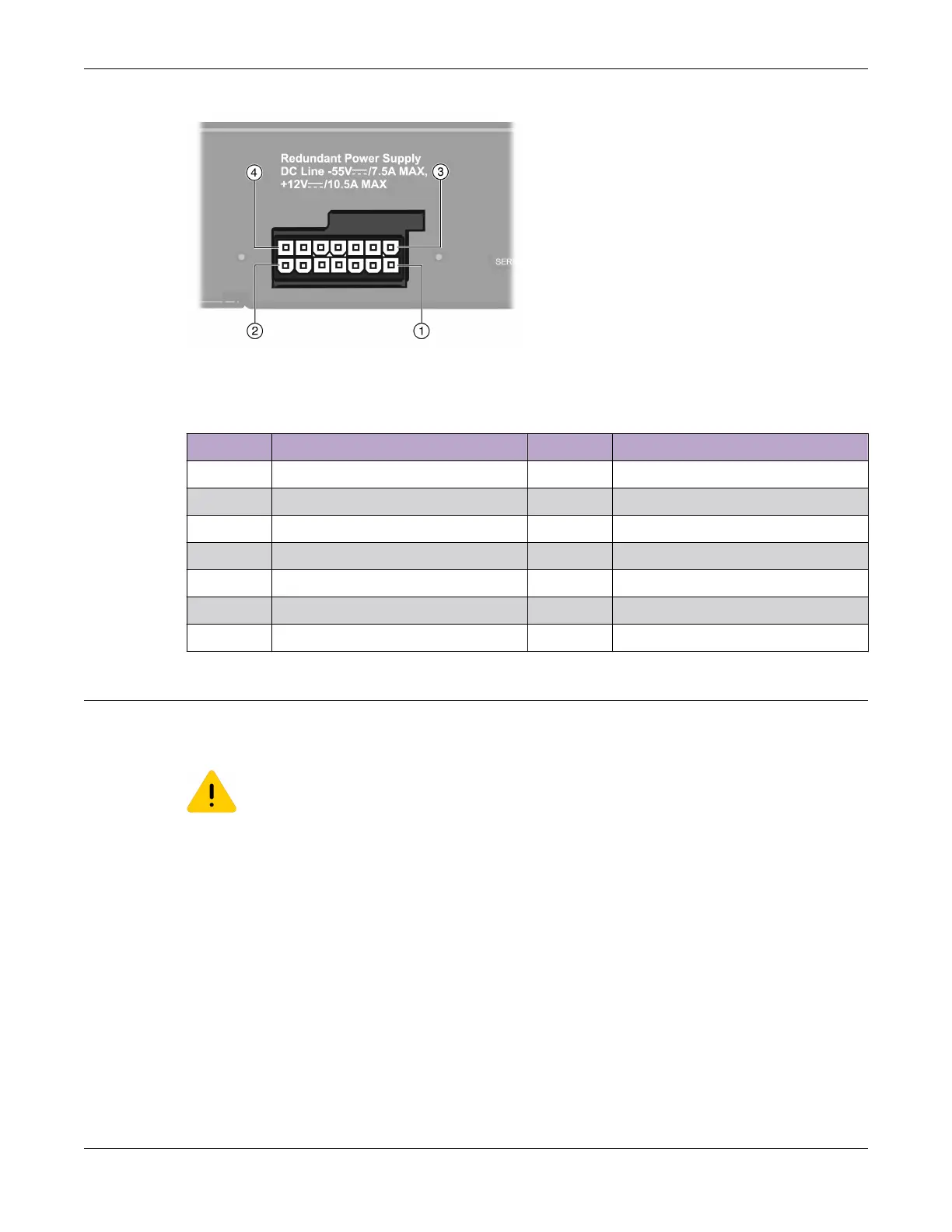

Figure 318: RPS-500p Connector Pin Locations
Table 339: RPS-500p Connector Pins
Pin Function Pin Function
1 - 55 V return 8 Ground
2 - 55 VDC 9 No connection
3 12 VDC output 10 RPS present
4 12 VDC output 11 Status 1 Status
5 12 VDC output 12 Status 2
6 12 VDC output 13 Power good
7 Ground 14 Ground
STK-RPS-150PS and RPS Shelves Technical Specifications
The Extreme Networks STK-RPS-150PS is a 150 watt DC power redundant power supply for use with an
Extreme Networks stackable or standalone fixed switch model that does not support PoE.
Caution
The STK-RPS-150PS does not support pliant fixed switch models. Do not connect the power
cable from an STK-RPS-150PS to a PoE-compliant fixed switch. Otherwise, damage to the
switch may result.
The STK-RPS-150PS can be installed as a standalone unit or with the following rack-mounted shelves:
•
STK-RPS-150CH2, a two-slot shelf
• STK-RPS-150CH8, an eight-slot shelf
Technical
Specifications
STK-RPS-150PS and RPS Shelves Technical
Specifications
ExtremeSwitching Hardware Installation Guide 469
