MGT FAN P1 P2 S1
CLK ACT LINK
S2
21
22
23
24
17
18
19
20 25
26
27
28 29 30
31
32
36
37
38
39 40
41
42
43
46
44 47
45
48
33
34
35
50
51
49
52
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16
CONSOLE
STACK NO.
Management
5
3
4
1
2
Summit
™
X450-G2-48p-GE4
GbES FP

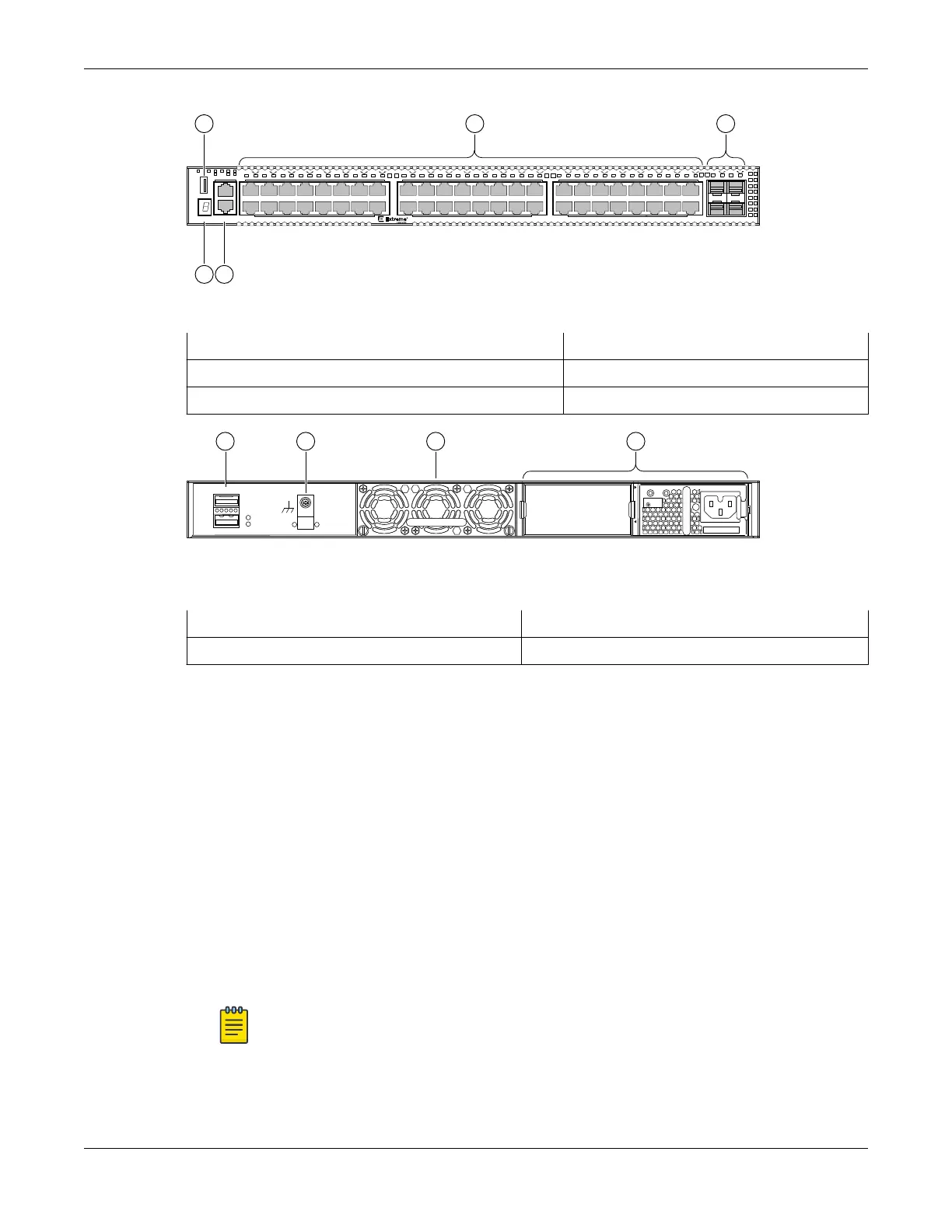

Figure 50: X450-G2-48p-GE4 Front Panel
1 = Stack number indicator 4 = PoE+ 10/100/1000BASE-T ports
2 = Console port/Ethernet management port 5 = SFP 1GBASE-X ports
3 = USB port
PSU -2PS
IN.OK
AIR OUT
(AFO)
OUT. OK
115V-240V- 12-6A 50-60Hz
CLEI LABEL
U-1
SummitStack-V84
431 2
Figure 51: X450-G2-48p-GE4 Rear Panel
1 = 21 Gb stacking ports (QSFP+)
3 = Front-to-back fan module slot
2 = Grounding screw 4 = PoE+ power supply bays
ExtremeSwitching X450-G2-48p-10GE4 Switch Ports and Slots
X450-G2-48p-10GE4 switch ports and slots include:
• 48 front panel PoE+ ports of 10/100/1000BASE-T (ports 1–48).
• Four front panel ports of 10GBASE-X SFP+ (ports 49–52, with ports 51 and 52
configurable to be
stacking ports). The SFP+ ports are dual speed (1 Gb/10 Gb).
• Front panel USB port.
• Ethernet management port 1 x 10/100/1000BASE-T.
• Serial console port implemented as an RJ45 connector used to connect a terminal and perform local
management.
• One rear slot for fan module with front-to-back
airflow.
• Two dedicated QSFP-form factor 21 Gb stacking ports on the rear panel.
• Rear dual power supply slots with front-to-back airflow.
Note
Unused power supply slots must be covered with blank panels.
ExtremeSwitching Switches
ExtremeSwitching X450-G2-48p-10GE4 Switch Ports
and Slots
ExtremeSwitching Hardware Installation Guide 55
