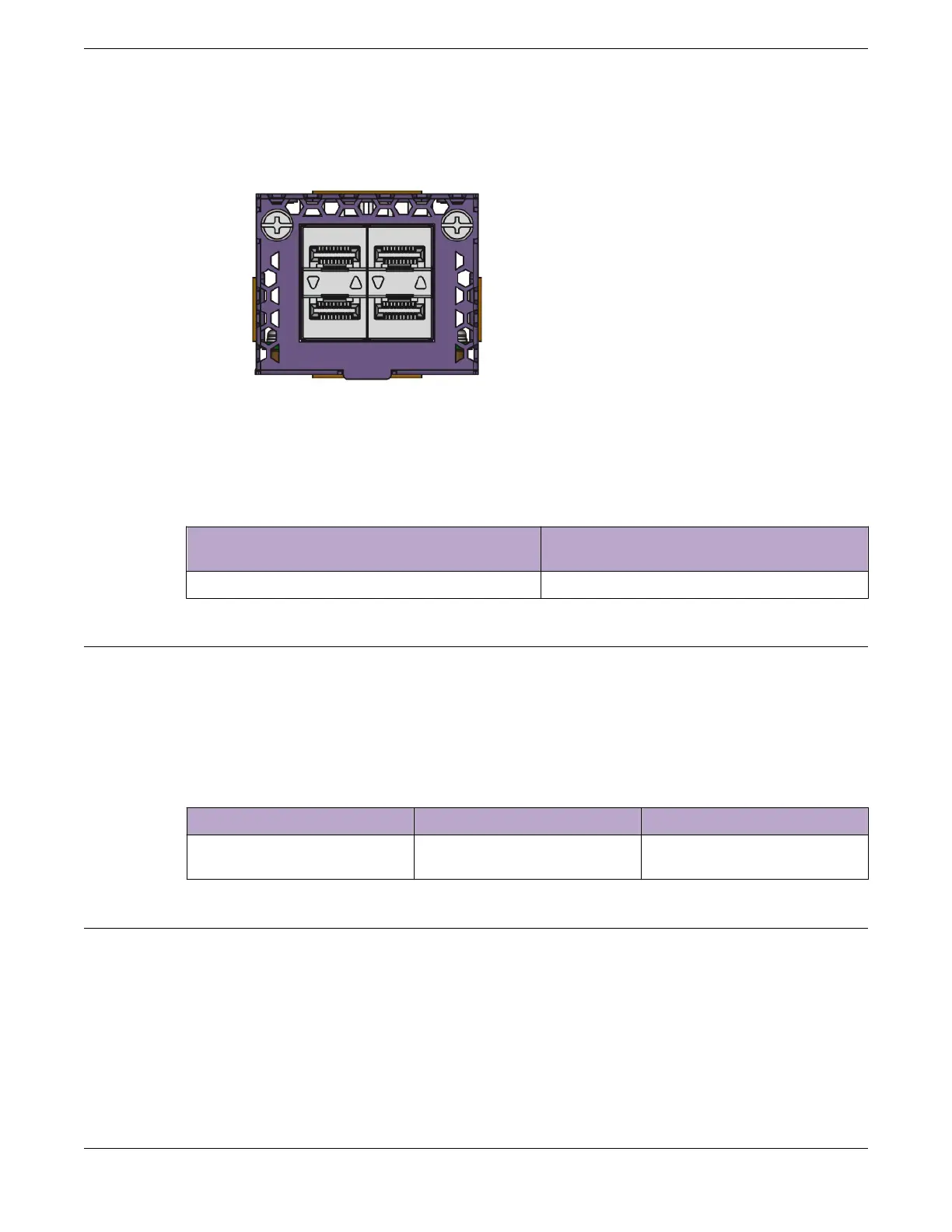

Figure 140: VIM5-4YE Versatile Interface Module
Table 68: Port Numbers for Ports on the VIM5-4YE Module
ExtremeSwitching X465
Port Number for 24-port Models
ExtremeSwitching X465
Port Number for 48-port Models
25-28 49-52
Solid-state Drives
Solid-state drives (SSD) provide modular storage support. X465 Series switches accommodate one SSD
module using a reserved slot on the rear of the switch, which is supported on EXOS release 30.3 and
later.
The following SSD module is available for X465 switches:
Table 69: Available SSD Module
SSD Module Description Compatible Switch Models
XN-SSD-001-120 Modular 120GB SSD X465-24MU
X465-24MU-24W
Optional Ports for X460-G2 Switches
The rear panel of every X460-G2 switch provides slots to install the following:
• VIM-2q Ethernet Module with 2x40G ports
• VIM-2ss SummitStack Module with stacking ports
• VIM-2t Ethernet Module with 2x10GBASE-T ports
Solid-state Drives
Expansion Modules
158 ExtremeSwitching Hardware Installation Guide
