• M4 #2 Phillips screwdriver (magnetic screwdriver recommended)
The VESA mount comes with 4 screws and should be used when mounting the V300 Virtual Port
Extender to a VESA mount for 75mm x 75mm or 35mm x 75mm mounting dimensions. To install a
V300 Virtual Port Extender in a VESA Mount:
1. Attach the VESA mount to the underside of the port extender using four screws (included):

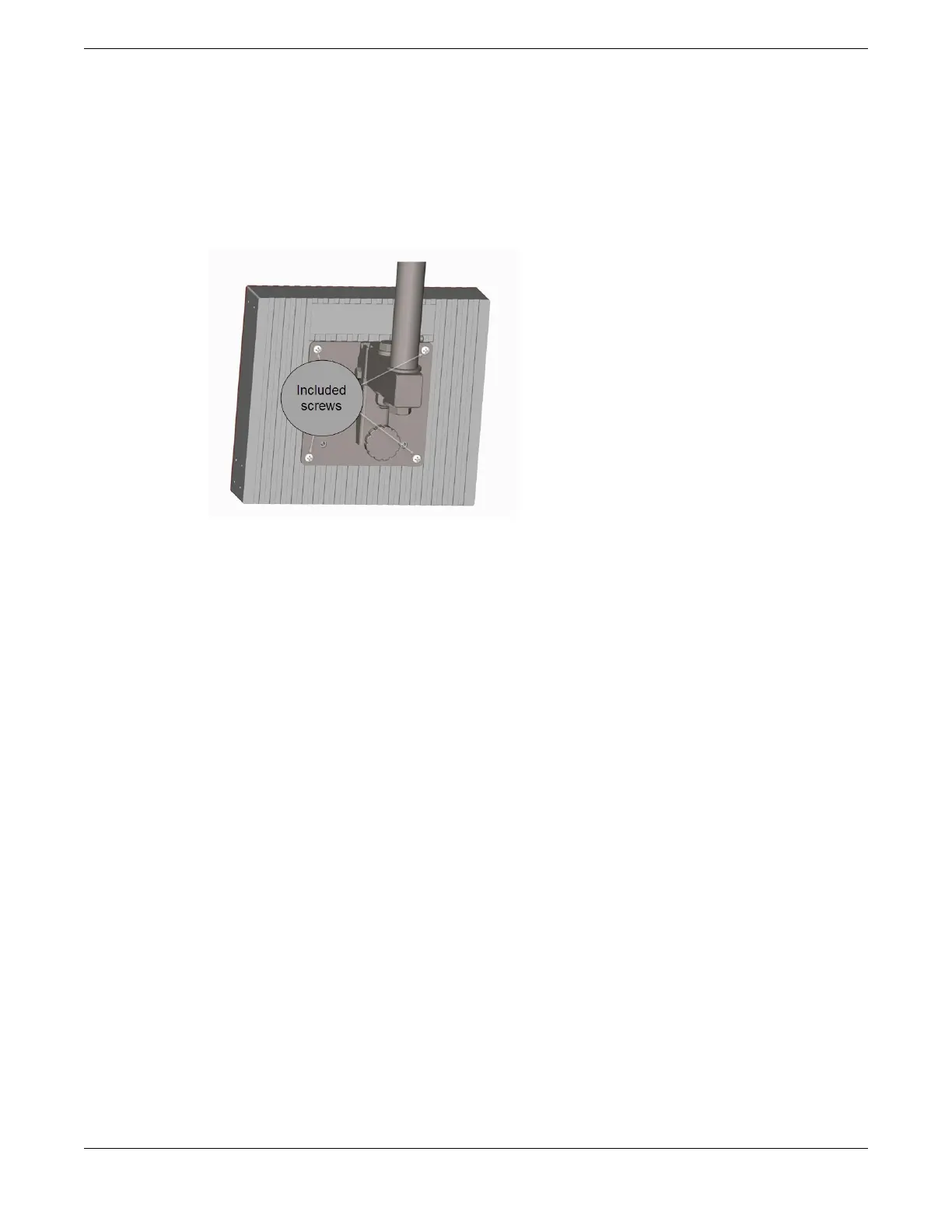

Figure 241: VESA Mounting
Install a V300 Virtual Port Extender in a VESA Mount
Installing Expansion Modules
302 ExtremeSwitching Hardware Installation Guide
