• 1 PPS signal at the top of each second

Caution

The clock module is not hot swappable. You must power down the switch before installing

any VIM modules.

Note

The TM-CLK module has no inputs for timing signals, and it cannot act as a 1588v2

grandmaster clock. The module provides no RJ45 Building Integrated Timing System (BITS)

output, and in particular does not provide the serial time of day output.

Note

The X460-G2 TM-CLK clock module does not accept both 10MHz and 1PPS signals at the

same time, so it can take 10 to 20 minutes or more to lock onto a 1588v2 1PPS signal from the

Apollo2 chip in addition to the usual 15 minutes or more for the 1588v2 servo to lock onto the

remote grandmaster clock.

OOUUTTPPUU

TTMM--CCLLKK

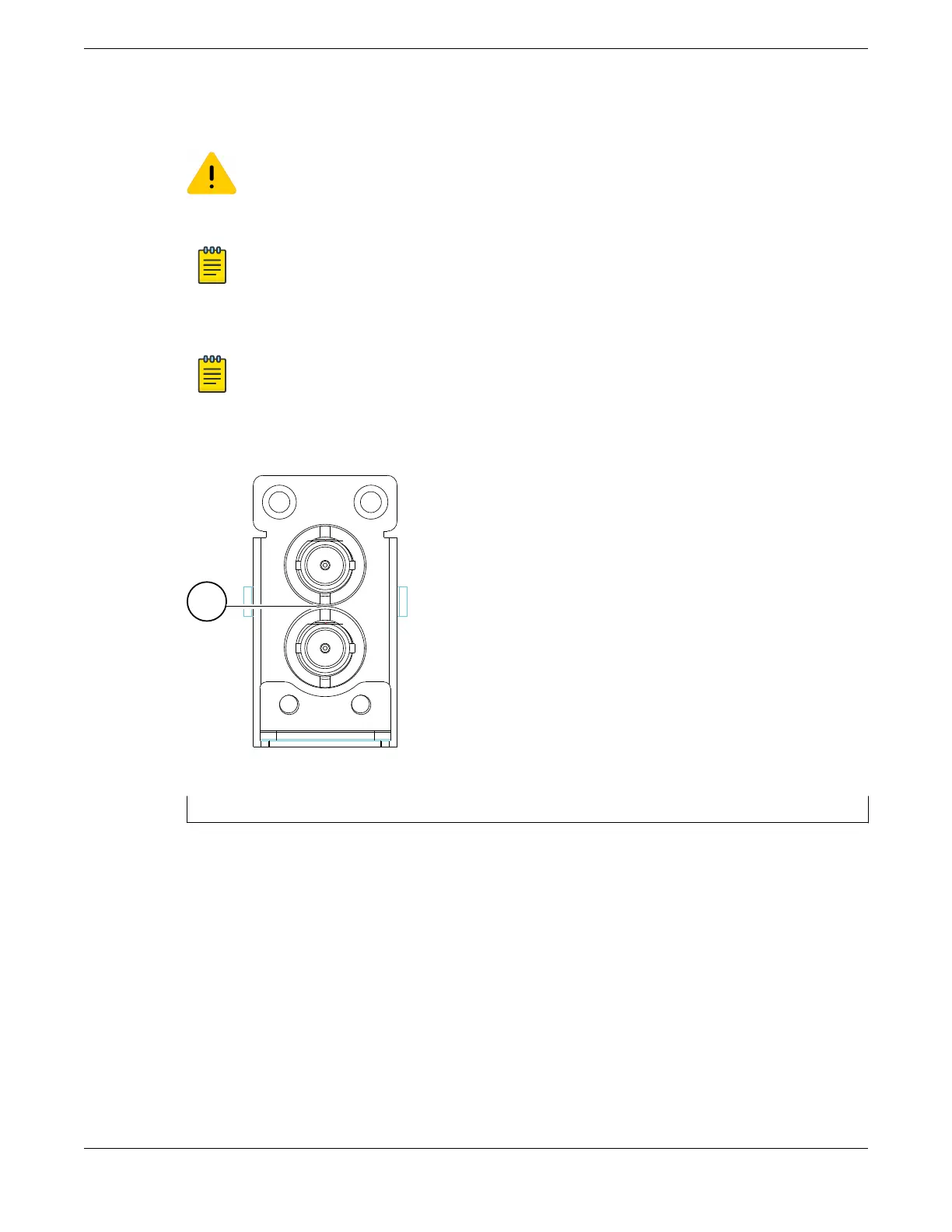

Figure 145: TM-CLK Module Option

1 = Timing signal mini-BNC outputs

TM-CLK Clock Module Expansion Modules

162 ExtremeSwitching Hardware Installation Guide
