3. Attach the PSUs to the DIN bracket using cable ties, and then attach the bracket to the DIN Rail:

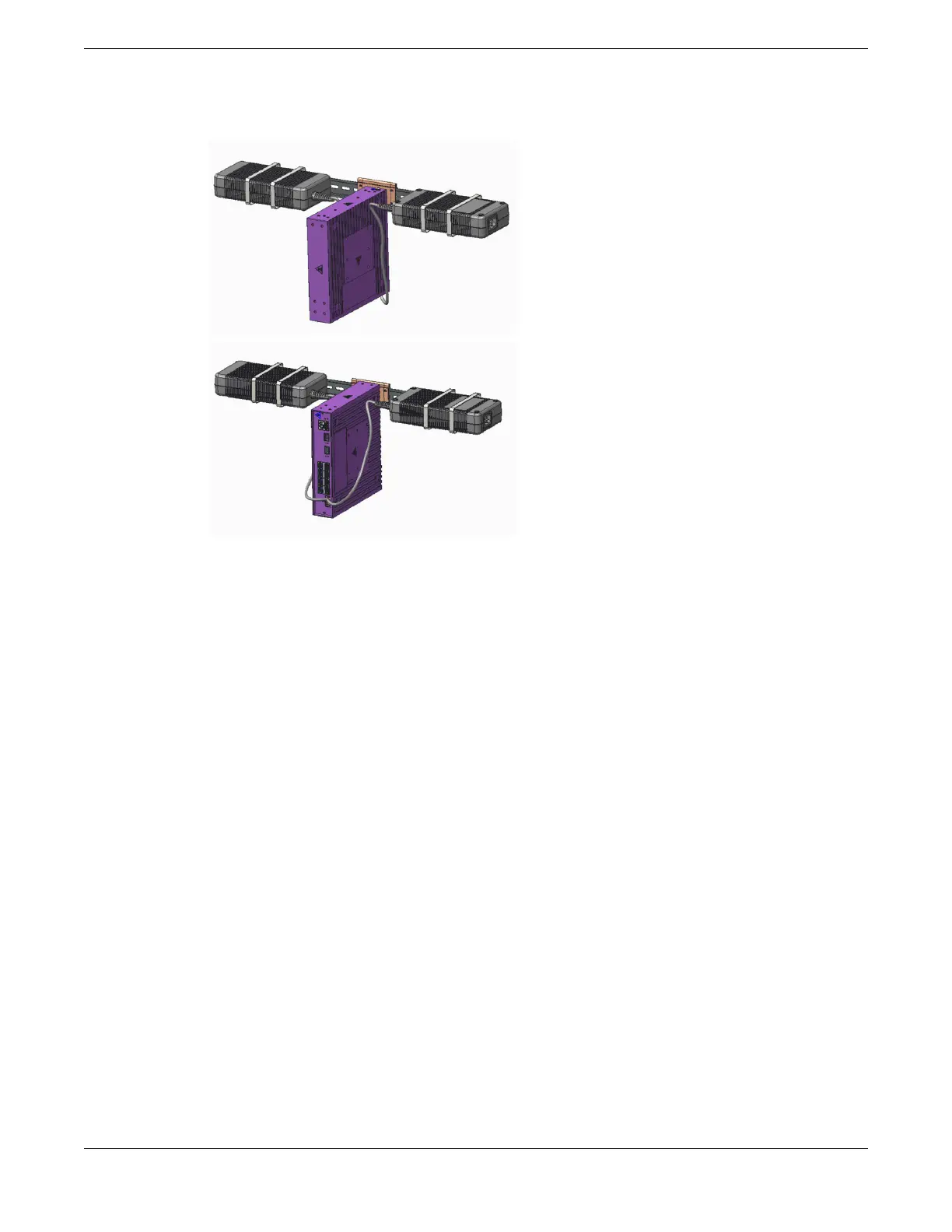

Figure 249: V300HT-8P-2X DIN Rail Mount with dual XN-ACPWR-320W-HT PSUs
4. For PSU 16807, attach the port extender to the DIN Rail using one DIN bracket and the screws
provided.
Install a V300 in a DIN Rail Mount
Installing Expansion Modules
310 ExtremeSwitching Hardware Installation Guide
