Routing Configuration Example
ExtremeWare XOS 11.3 Concepts Guide
523
■ IP address 2001:db8:36::1/48.
● MyCompany
■ Port-based VLAN.
■ All ports on slots 1 through 4 have been assigned.

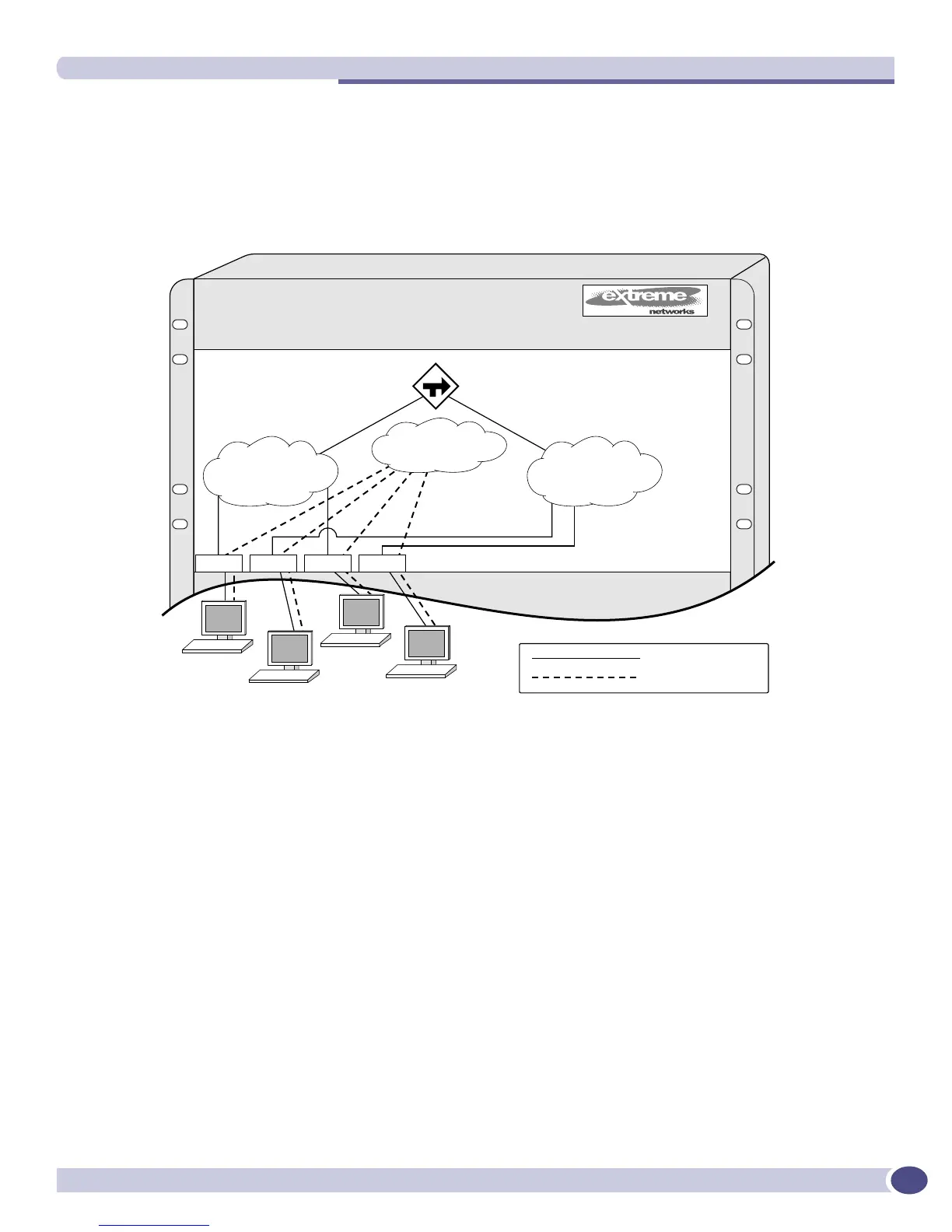

Figure 63: IPv6 Unicast routing configuration example
The stations connected to the system generate a combination of IPv6 traffic and NetBIOS traffic. The
IPv6 traffic is filtered by the protocol-sensitive VLANs. All other traffic is directed to the VLAN
MyCompany.
In this configuration, all IPv6 traffic from stations connected to slots 1 and 3 have access to the router by
way of the VLAN Finance. Ports on slots 2 and 4 reach the router by way of the VLAN Personnel. All
other traffic (NetBIOS) is part of the VLAN MyCompany.
The example is configured as follows:
create vlan Finance
create vlan Personnel
create vlan MyCompany
configure Finance protocol ipv6
configure Personnel protocol ipv6
configure Finance add port 1:*,3:*
configure Personnel add port 2:*,4:*
configure MyCompany add port all
1234AB5678
EX_106
1
Finance
Personnel
MyCompany
IPv6
NetBIOS
2 3 4
= IPv6 traffic
= NetBIOS traffic
2001:db8:36::/48
2001:db8:35::/48
2001:db8:36::1/482001:db8:35::1/48
IPv6
NetBIOS
IPv6
NetBIOS
IPv6
NetBIOS
