FEI Scios 2 - Mains Switchboard

System Control: Interface Elements
C O N F I D E N T I A L – FEI Limited Rights Data2-4
Mains Switchboard
Breakers and connectors placed at the cabinet back:
• Mains switch S1 – entire system mains power switch
• PVP Breaker F1/5A – pre-vacuum pumps power switches
• Mains Breaker F2/10A – system pumps power switches
• Main input 230 VAC – input mains power cord
• PVP X5 – output power supply for pre-vacuum pumps
• X1 – not used
• X2 – optional equipment output power supply
• X3 – optional equipment output power supply
• X4 – output power supply for Microscope PC, LCD 1, optionally for Support PC,LCD 2, LCD 3

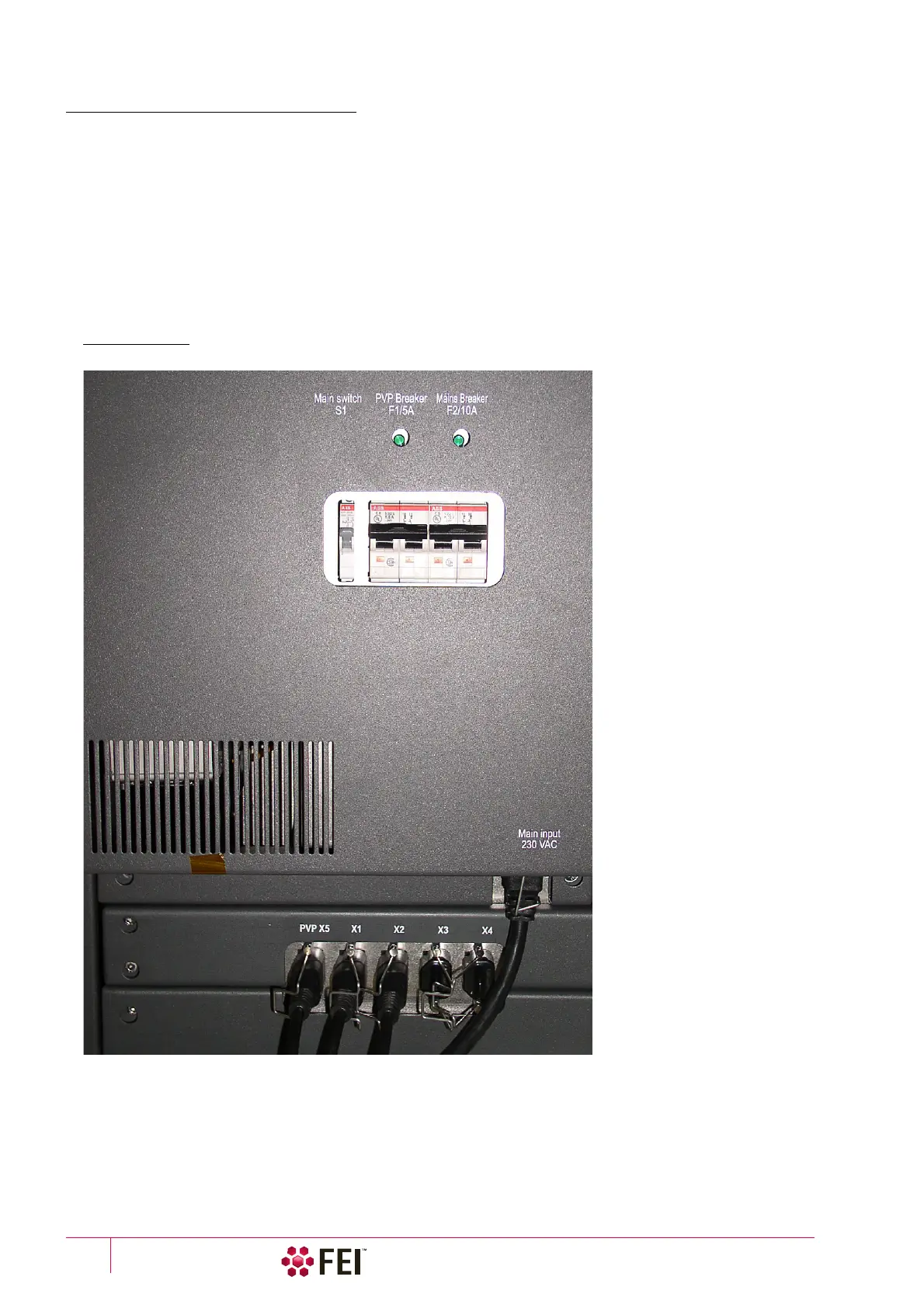

FIGURE 2-4 Mains Switch Board
Caution! 
Always keep all control elements accessible! This is especially important in case of emergency.
