4.4.8 REMOTE
+5V
Max pk
Offset
Value
Baseline
~
-5V Max pk

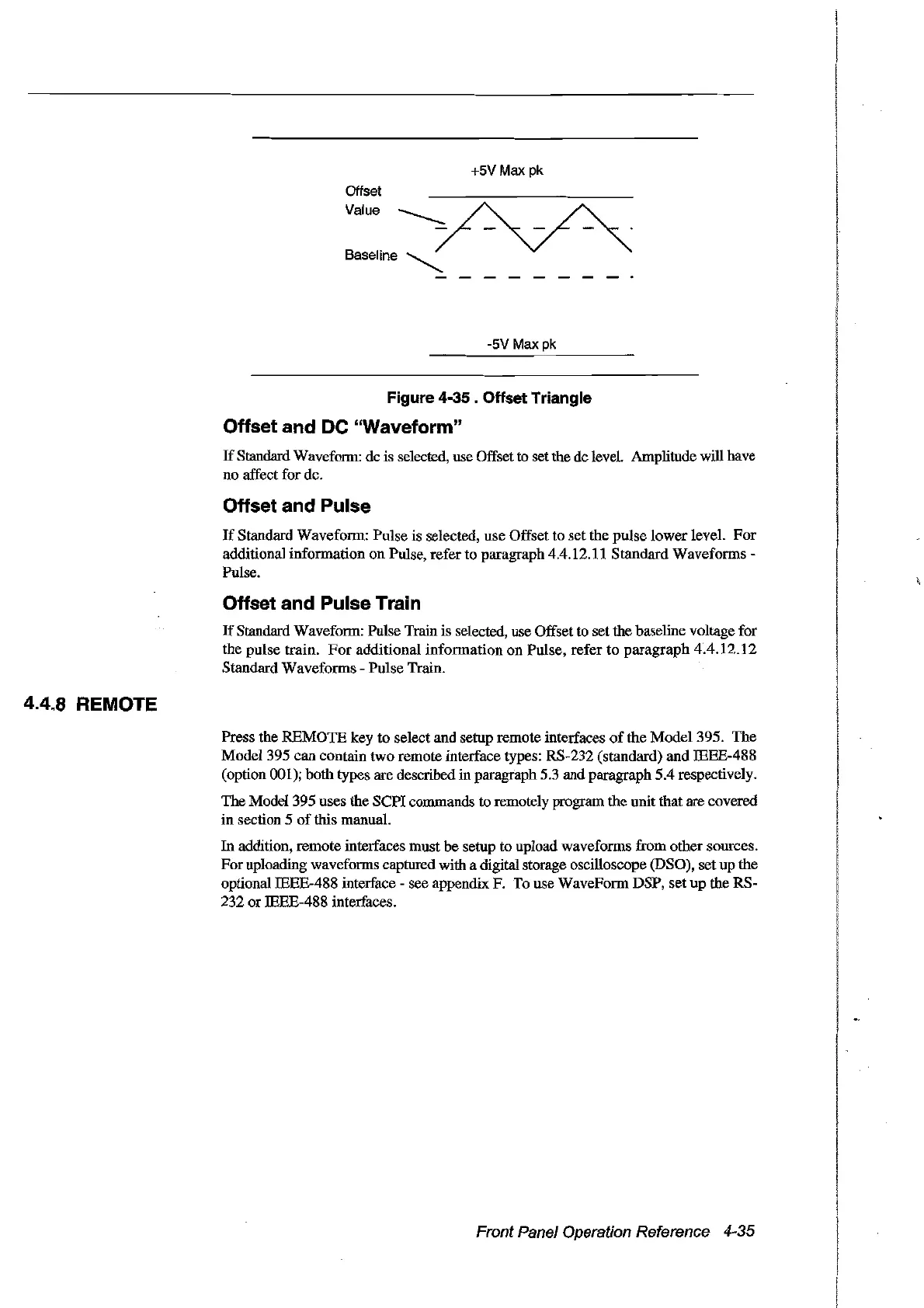

Figure 4-35 . Offset Triangle
Offset and
OC
"Waveform"
If
Standard Wavefonn: dc is se1ected, use Offsetto set the dc level. Amplitude will have
no affect for dc.
Offset and Pulse
If
Standard Wavefonn: Pulse is selected, use Offset to set the pulse lower level.
For
additional information on Pulse, refer to paragraph 4.4.12.11 Standard
Wavefonns-
Pulse.
Offset and Pulse Train
If
Standard Wavefonn: Pulse Train is selected, use Offset to set the baseline voltage for
the
pulse
train.
For
additional information on Pulse, refer
to
paragraph
404.12.12
Standard Wavefonns Pulse Train.
Press the RBMOTE key
to
select and setup remote interfaces
of
the Model 395.
The
Madel 395
can
contain two remote interface types: RS-232 (standard)
and
IEEE-488
(option 001); both types are described in paragraph 5.3 and paragraph 5.4respectively.
The Madel 395 uses the
SePI
commands to remotely program the unit that are covered
in
section 5
of
this manual.
In addition, remote interfaces must be setup
ta
upload wavefonns from other sources.
For
uploading waveforms captured with a digital storage oscilloscope (DSO), set up the
optional IEEE-488 interface see appendix F. To use WaveFonn DSP, set
up
the RS-
232
or
IEEE-488 interfaces.
Front Panel Operation Reference 4-35
