POINt sync2,20,4000i
POINt sync2,22,4000i
POINt sync2,23,4000i
POINt sync2,24,4000i
POINt sync2,25,4000i
POINt sync2,26,4000i
POINt sync2,27,4000i
POINt sync2,28,4000i
POINt sync2,29,4000i
POINt sync2,30,4000i
POINt sync2,31,2000i
POINt sync2,32,2000i
POINt sync2,33,4000i
POINt sync2,34,4000i
POTN~ Rynr.?,1S,4000i
POINt sync2,36,4000i
POINt sync2,37,2000i
POINt sync2,38,OOOOi
POINt sync2,39,OOOOi <pmt>

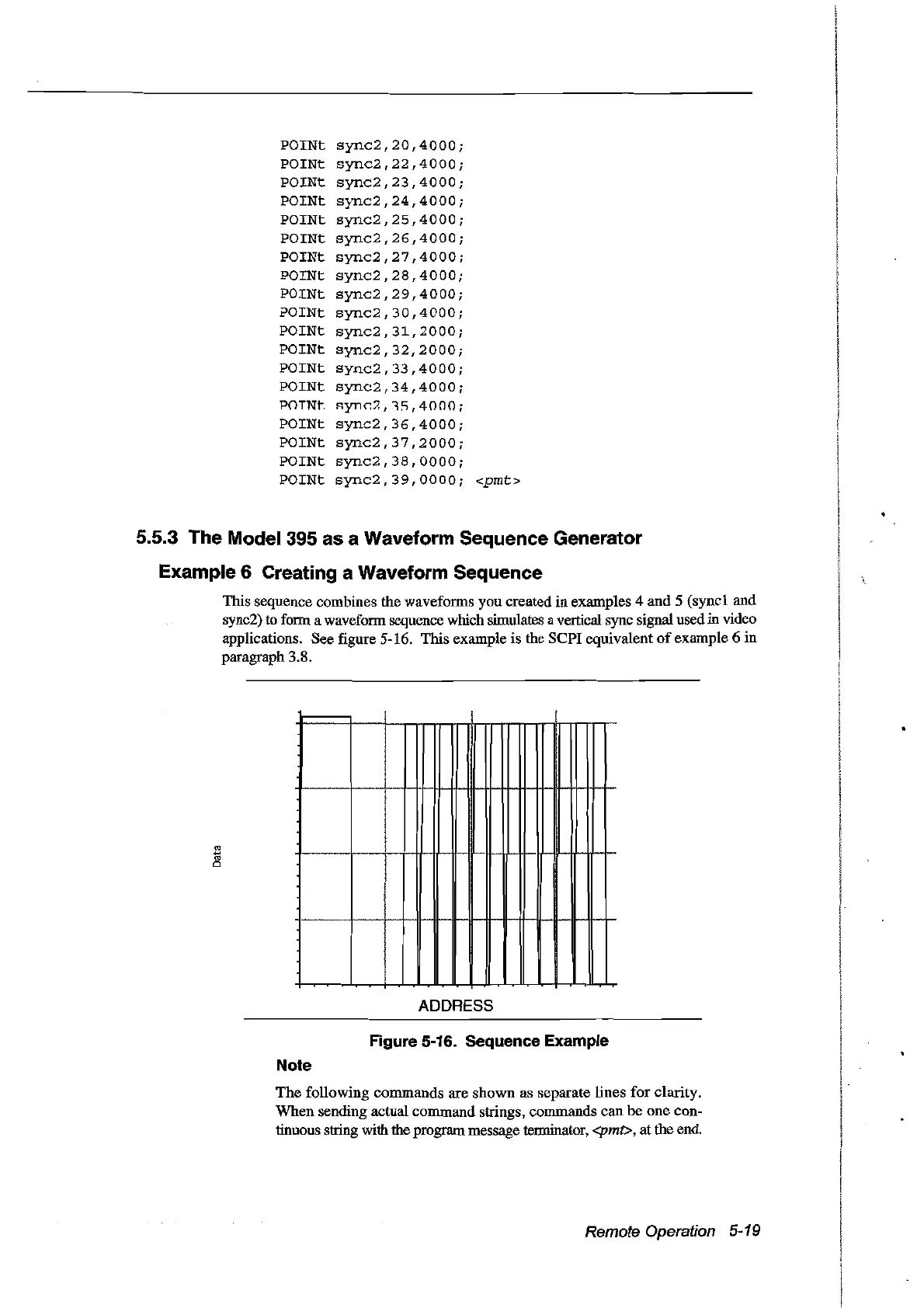

5.5.3 The Model395 as a Waveform Sequence Generator
Example 6 Creating a Waveform Sequence
This sequence combines the waveforms you created in examples 4 and 5 (sync1 and
sync2) to form a waveform sequence which simulates a vertical sync signal used in video
applications. See figure 5-16. This example is the
sePI equivalent of example 6 in
paragraph 3.8.
ADDRESS
Figure 5-16. Sequence Example
Note
The following commands are shown as separate lines for clarity.
When sending actual command strings, commands can
he one con-
tinuous string with the program message terminator,
<pm!>, at the end.
Remote Operation 5-19
