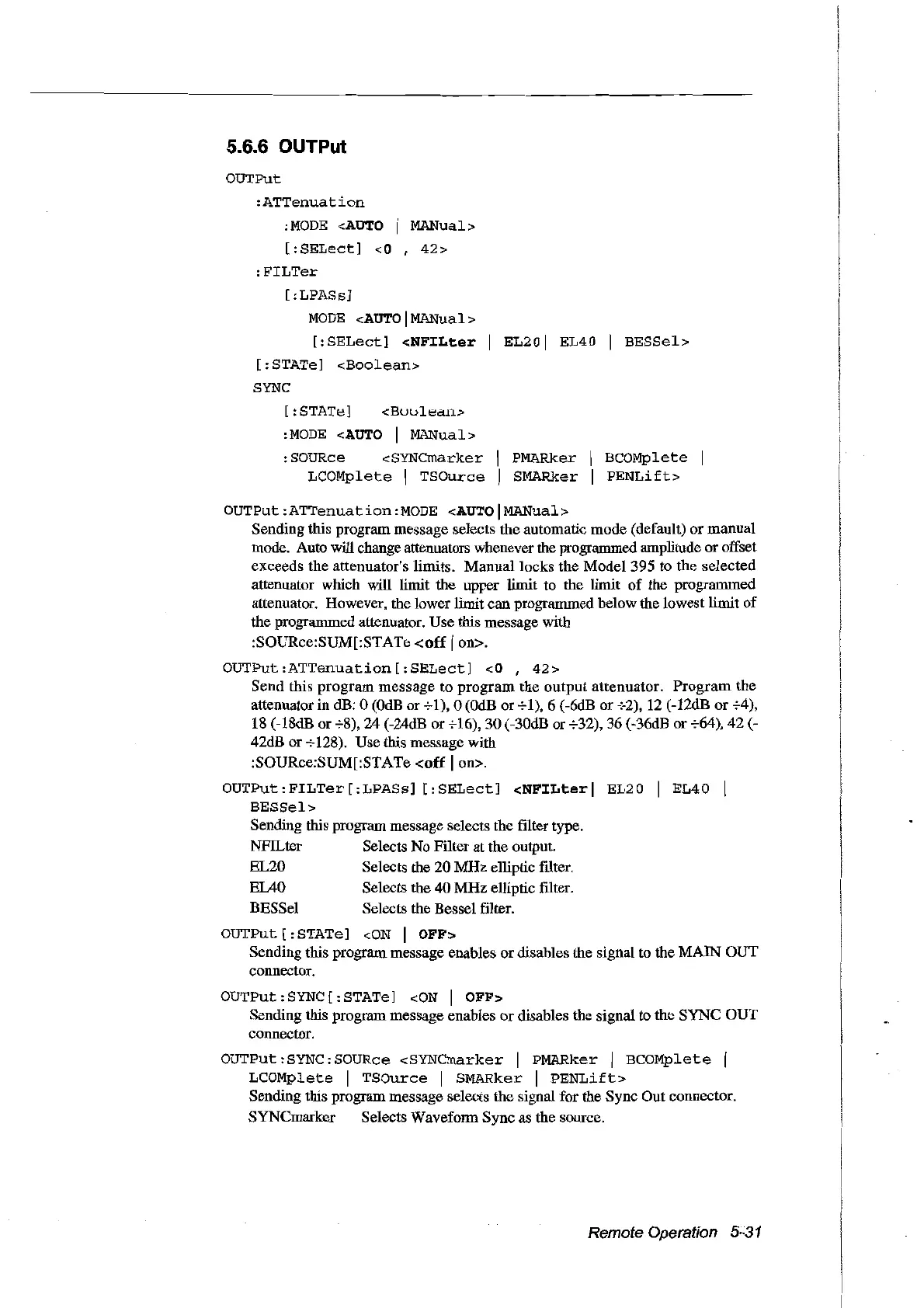

5.6.6 OUTPut
BCOMplete
PENLift>
PMARker
SMARker
OUTPut
:
ATTenuation
:MODE
<AUTO
1 MANual>
[:SELect]
<0
1
42>
:FILTer
[ :
LPASs]
MODE
<AUTOIMANual>
[:SELect]
<NFILter
1 EL201
EL40
1
BESSel>
[:STATe]
<Boolean>
SYNC
[ ; STATe]
<Buulea.ll>
:MODE
<AUTO
1 MANual>
: SOURce
<SYNCmarker
LCOMplete
1
TSOurce
OUTPut:ATTenuation:MODE
<AUTOIMANual>
Sending this program message selects the automatic mode (default) or manual
mode. Auto will change attenuators whenever the programmed amplitude or offset
exceeds the attenuator's limits.
Manuallocks
the Model 395 to the selected
attenuator which will limit the upper limit to the limit
of
the programmed
attenuator. However, the lower limit can programmed below the lowest limit
of
the programmed attenuator. Use this message with
:SOURce:SUM[:STATe
<off
Ion>.
OUTPut:ATTenuation[:SELect]
<0
1
42>
Send this program message to program the output attenuator. Program the
attenuator in
dB:
0
(OdB
or
-;-,1),0
(OdB
or
-;-.1),6
(-6dB or
-;-.2),12
(-I2dB or
-;-.4),
18
(-18dB or
-;-.8),24
(-24dB or
-;-.16),
30 (-30dB or
-;-.32),
36 (-36dB or
-;-.64),42
(-
42dB or
-;-.128).
Use this message with
:SOURce:SUM[:STATe
<off
Ion>.
OUTPut:FILTer[:LPASs]
[:SELect]
<NFILterl
EL20
1
EL40
1
BESSel>
Sending this program message selects the filter type.
NFILter Selects No Filter at the output.
EL20 Selects the 20 MHz elliptic filter.
EL40 Selects the 40 MHz elliptic filter.
BESSel Selects the Bessel filter.
OUTPut
[:STATe]
<ON
1 OFF>
Sending this program message enables or disables the signal to the MAIN OUT
connector.
OUTPut:SYNC[:STATe]
<ON
1 OFF>
Sending this program message enables
or
disables the signal to the SYNC OUT
connector.
OUTPut:SYNC:SOURce
<SYNCmarker
1 PMARker 1
BCOMplete
1
LCOMplete
1
TSOurce
1
SMARker
1
PENLift>
Sending this program message selects the signal for the Sync Out connector.
SYNCmarker Selects Waveform Syne as the source.
Remote Operation
5;'31
