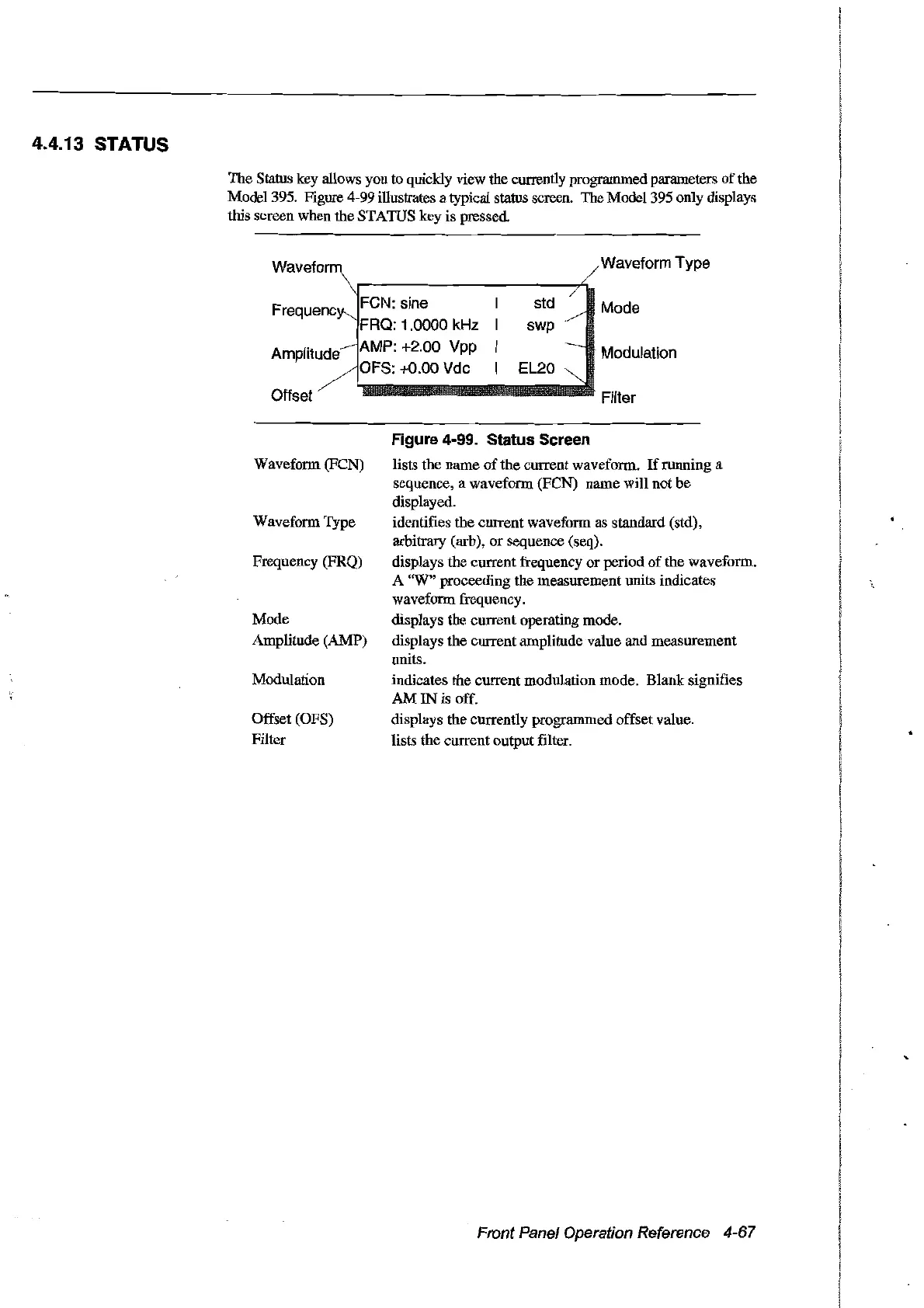

4.4.13 STATUS
The Status key allows you to quickly view the currently programmed parameters
of
the
Model 395. Figure 4-99 illustrates a typical status screen. The Model 395 only displays
this screen when the STATUS key is pressed.
Wavefor
Waveform Type
FeN: sine
/
Frequenc
std
Mode
FRa:
1.0000 kHz swp
Amplitude
AMP: +2.00 Vpp
. Modulation
OFS: +0.00 Vdc EL20
Offset
Filter
Waveform (FCN)
Waveform Type
Frequency
(FRQ)
Mode
Amplitude (AMP)
Modulation
Offset (OFS)
Filter
Figure 4-99. Status Sereen
lists the name
of
the current waveform.
If
running a
sequence, a waveform (FCN) name will not be
displayed.
identifies the current waveform as standard (std),
arbitrary (arb), or sequence (seq).
displays the current frequency
or
period
of
the waveform.
A
"W"
proceeding the measurement units indicates
waveform frequency.
displays the current operating mode.
displays the current amplitude value and measurement
units.
indicates the current modulation mode. Blank signifies
AMINis
off.
displays the currently programmed offset value.
lists the current output filter.
Front Panel Operation Reference 4-67
