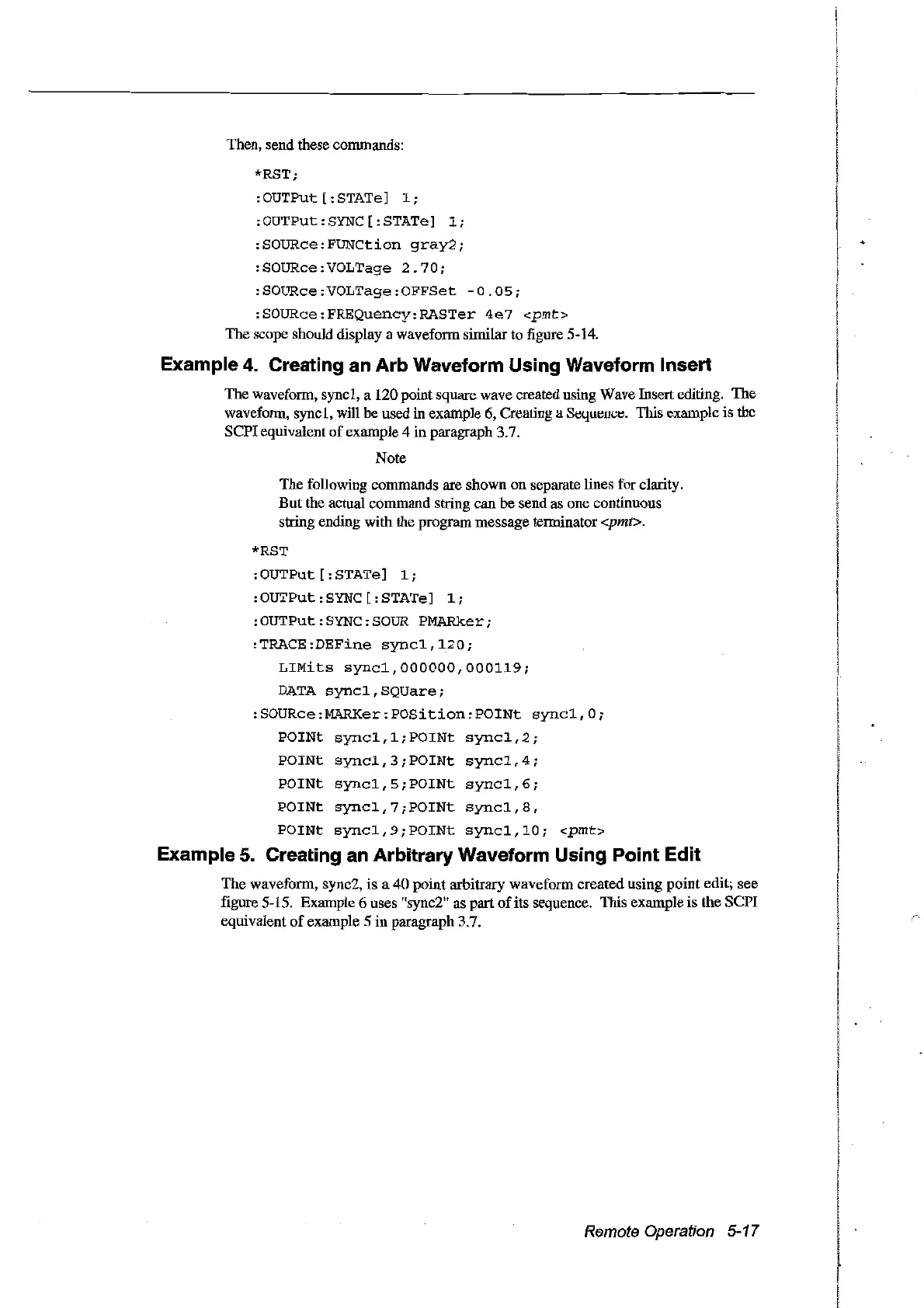

Then, send these commands:
*RST;
: OUTPut [:STATe] 1;
:OUTPut:SYNC[:STATe] 1;
:SOURce:FUNCtion gray2;
:SOURce:VOLTage 2.70;
:SOURce:VOLTage:OFFSet -0.05;
:SOURce:FREQuency:RASTer 4e7 <pmt>
The scope shou1d disp1ay a waveform simi1ar to figure 5-14.
Example 4. Creating an Arb Waveform Using Waveform Insert
The waveform, sync1, a 120point square wave created using Wave Insert editing. The
waveform, sync1, will be used
in examp1e 6, Creaùng a SCLJUCllC~. TIus exal11plc is thc
SCPI equiva1ent
of examp1e 4 in paragraph 3.7.
Note
The following commands are shown on separate lines for clarity.
But the actua1 command string can be send as one continuous
string ending with the program message terminator
<pmt>.
*RST
:
OUTPut [:STATe] 1;
:OUTPut:SYNC[:STATe] 1;
:OUTPut:SYNC:SOUR PMARker;
:TRACE:DEFine sync1,120;
LIMits syncl,000000,000119;
DATA syncl,SQUare;
:SOURce:MARKer:POSition:POINt sync1,0;
POINt syncl,l;POINt syncl,2;
POINt sync1,3;POINt sync1,4;
POINt syncl,S;POINt syncl,6;
POINt sync1,7;POINt sync1,8,
POINt sync1,9;POINt syncl,10; <pmt>
Example 5. Creating an Arbitrary Waveform Using Point Edit
The waveform, sync2, is a 40 point arbitrary waveform created using point edit; see
figure 5-15. Example 6 uses "sync2" as part
of its sequence. This example is the SCPI
equiva1ent
of examp1e 5 in paragraph 3.7.
Remote Operation 5-17
