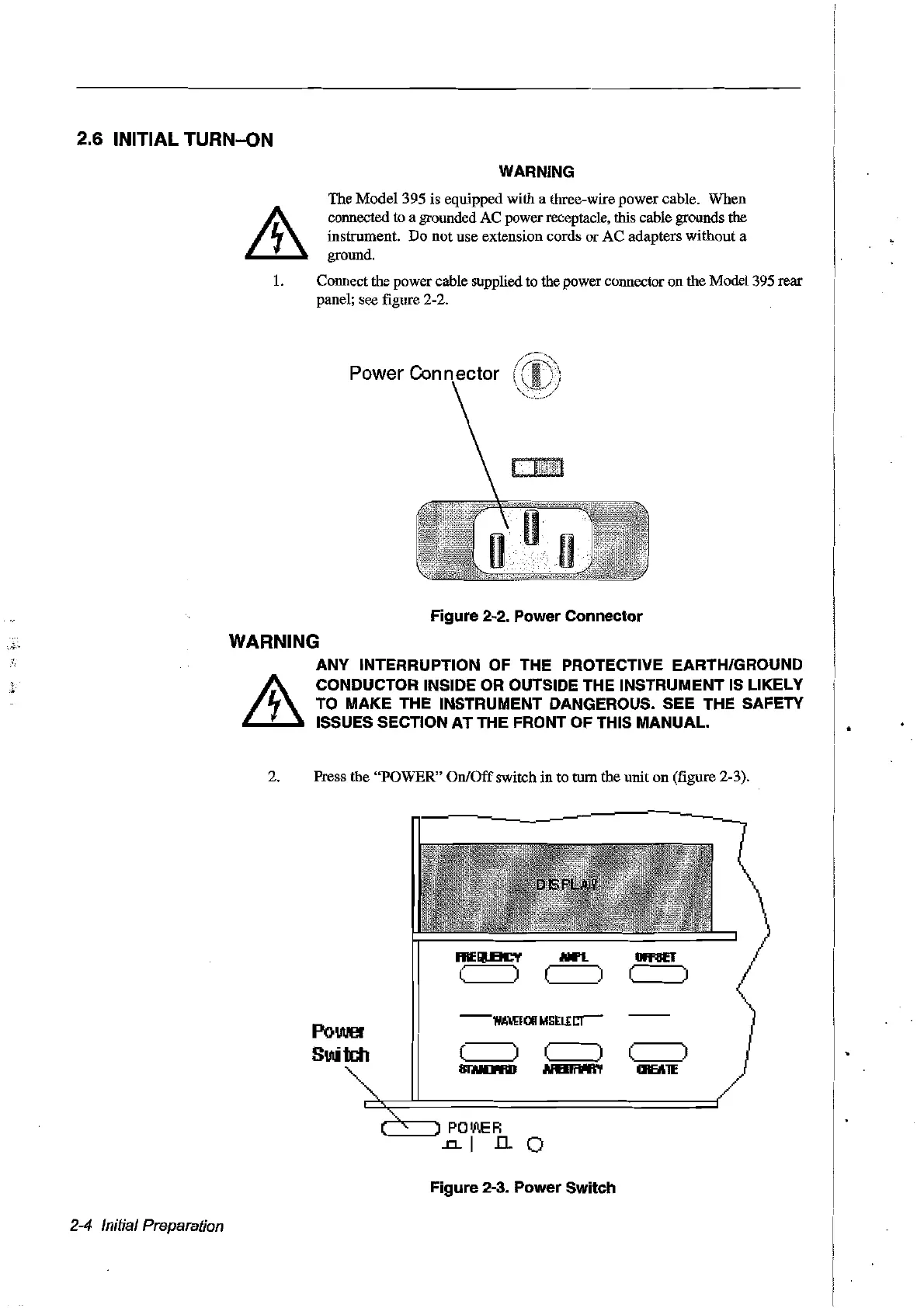

2.6 INITIAL TURN-QN
WARNING
1.
The Model 395 is equipped with a three-wire power cable. When
connected to a grounded AC powerreceptacIe, this cable grounds the
instrument.
Do not use extension cords or AC adapters without a
ground.
Connect the power cable supplied to the power connector on the Model
395 rear
panel; see figure 2-2.
Power Connector
Figure 2-2. Power Connector
WARNING
ANY INTERRUPTION OF THE PROTECTIVE EARTH/GROUND
&
CONDUCTOR INSIDE OR OUTSIDE THE INSTRUMENT IS LIKELY
TO MAKE THE INSTRUMENT DANGEROUS. SEE THE SAFETY
ISSUES SECTION AT THE FRONT OF THIS MANUAL.
2. Press the "POWER" On/Offswitch in to turn the unit on (figure 2-3).
2-4 Initial Preparation
Power
Swtch
( ) ( )
8IJlIIWID N11lf11lfi"1'
"--_-" PO IAE R
...c..1 no
Figure 2-3. Power Switch
( )
