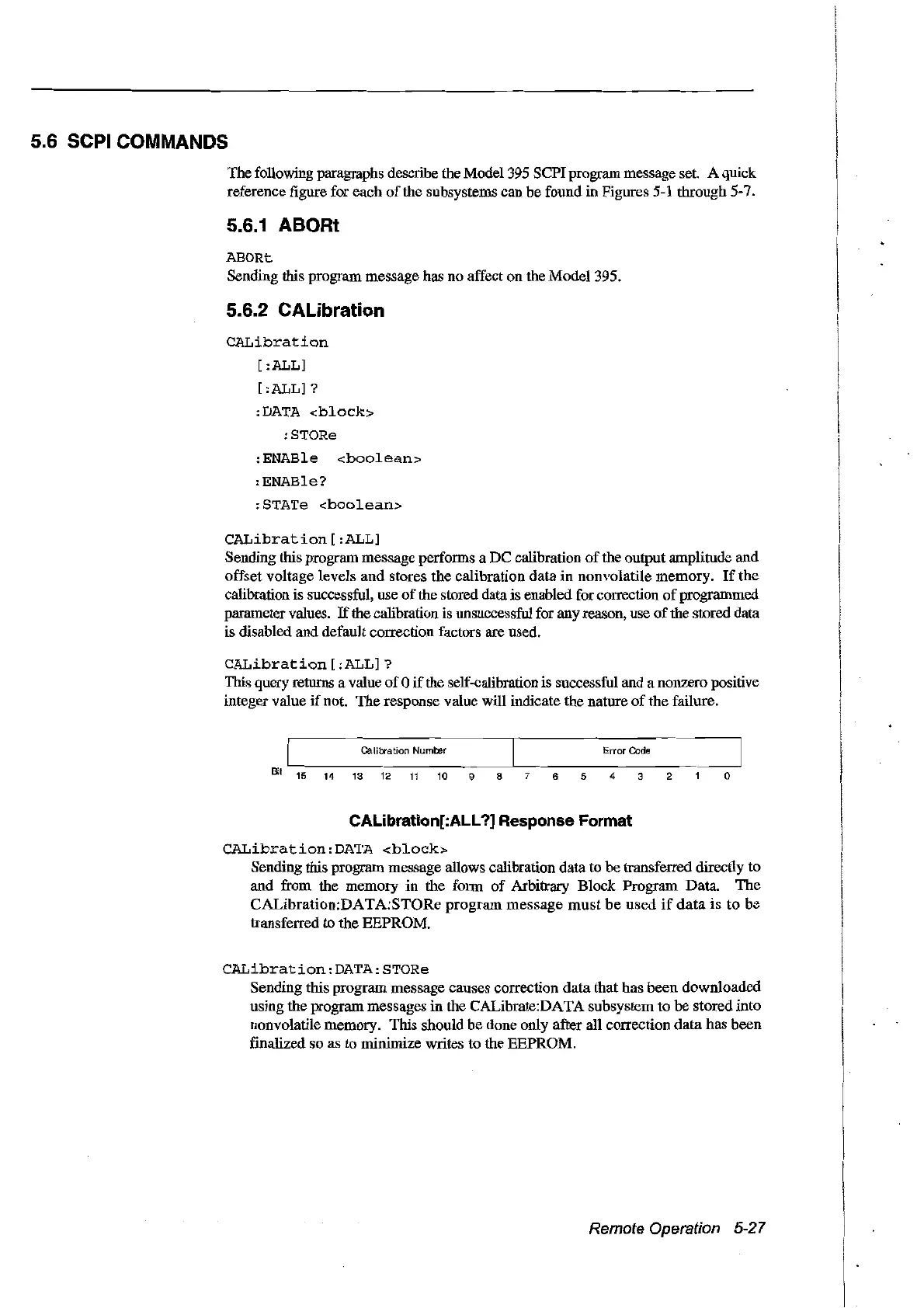

5.6 SCPI COMMANDS
The following paragraphs describe the Model 395 SCPI program message set. A quick
reference figure for each
of
the subsystems can be found in Figures 5-1 through 5-7.
5.6.1
ABORt
ABORt
Sending this program message has no affect on the Model 395.
5.6.2 CAlibration
CALibration
[ :ALL]
[:ALL]
?
:DATA
<block>
:STORe
:ENABle
<boolean>
:ENABle?
:STATe
<boolean>
CALibration
[ :ALL]
Sending this program message performs a DC calibration
of
the output amplitude and
offset voltage leve1s and stores the calibration
data
in
nonvolatile memory.
If
the
calibration is successfu1, use
of
the stored datais enab1ed for correction
of
programmed
parameter values.
If
the calibration is unsuccessful for any reason, use
of
the stored data
is disabled and default correction factors are used.
CALibration
[ :ALL] ?
This query returns a value
of
0
if
the self-calibration is successful and a nonzero positive
integer value
if
not. The response value will indicate the nature
of
the failure.
Bit
15
14
13
12
11
10
9 8 7 6 5 4 3 2 0
CALibration[:ALL?] Response Format
CALibration:DATA
<block>
Sending this program message allows calibration data to
be
transferred directly to
and from the memory
in
the form
of
Arbitrary B10ck Program Data. The
CALibration:DATA:STûRe
program
message
must
be
used
if
data
is
to
be
transferred to the
EEPRûM.
CALibration:
DATA: STORe
Sending this program message causes correction data that has
been
down10aded
using the program messages in the CALibrate:DATA subsystem to
be
stored into
nonvolati1e memory. This shou1d
be
done only after
al1
correction
data
has been
finalized so as to rninimize writes to the
EEPRûM.
Remote Operation 5-27
