Then, send these commands:
*RST;
:TRIGger:SOURee: [STARt] INTernaI;
:TRIGger:TIMER: [START] 15;
[:SOURee] :SWEep:MODE TRESet;
SWEep:TIME 5;
:SOURee:FREQueney:STARt 2e5;
:SOURee:FREQueney:STOP 4eS;
:SOURee:FREQueney:MODE SWEep; <pmt>
Then, send these commands:
:OUTPut ON;:OUTP:SYNC[:STATe] ON; <pmt>

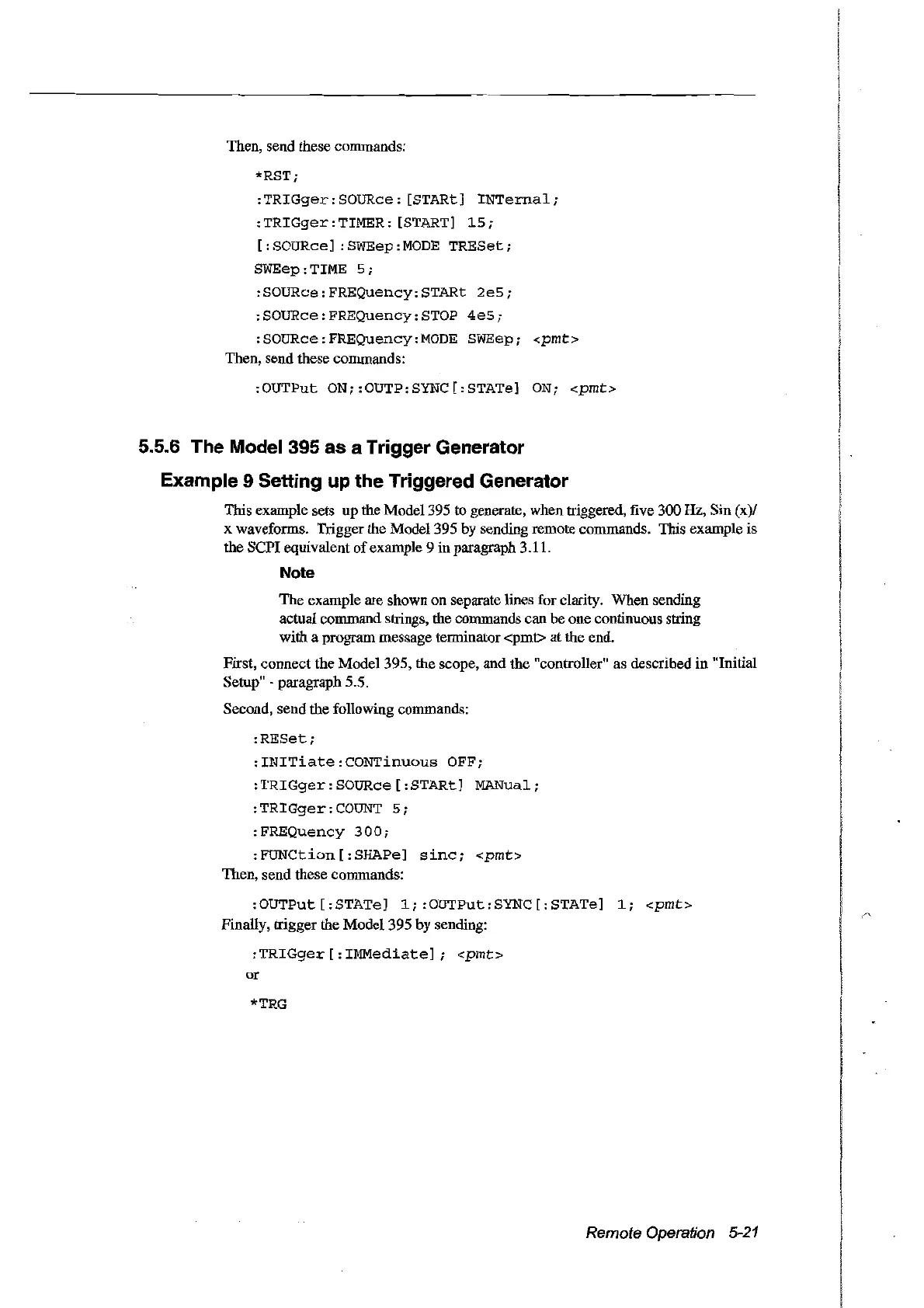

5.5.6 The Model 395 as a Trigger Generator
Example 9 Setting up the Triggered Generator
This example sets up the Model 395 to generate, when triggered, five 300 Hz, Sin (x)!
x waveforms. Trigger the Model 395 by sending reroote commands. This example is
the
SePI equivalent of example 9 in paragraph 3.11.
Note
The example are shown on separate lines for clarity. When sending
actual command strings, the commands can be one continuous string
with a program message terminator <prot>
at the end.
First, connect
the Model 395, the scope, and the "controller" as described in "Initial
Setup" paragraph 5.5.
Second, send the following commands:
:RESet;
:INITiate:CONTinuous OFF;
:TRIGger:SOURee[:STARt] MANual;
:TRIGger:COUNT Si
:FREQueney 300i
:FUNCtion[:SHAPe] sine; <pmt>
Then, send these commands:
: OUTPut [:STATe] l;:OUTPut:SYNC[:STATe] li <pmt>
Finally, trigger the Model395 by sending:
:TRIGger[:IMMediate]; <pmt>
or
*TRG
Remote Operation 5-21
