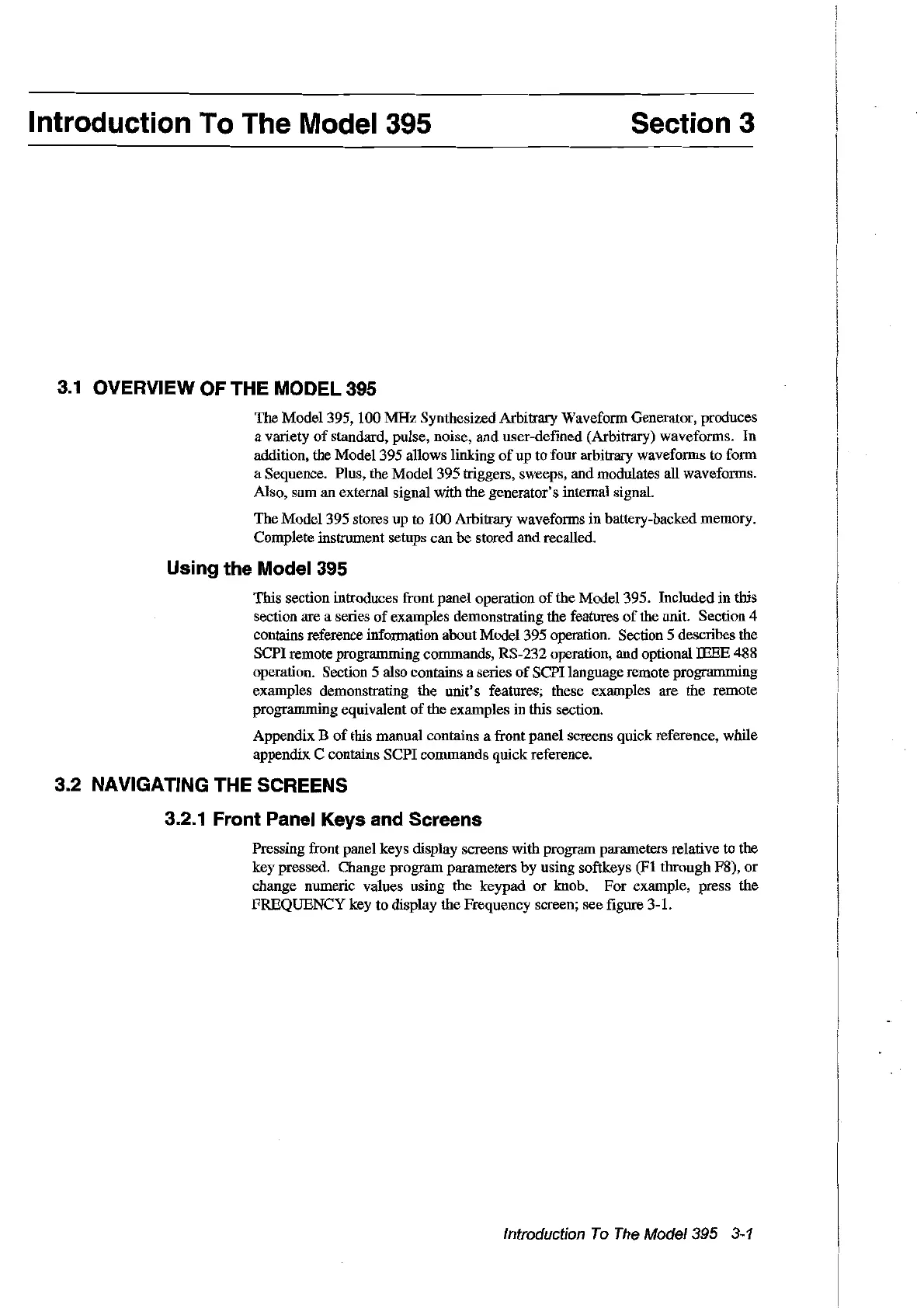

3.1
OVERVIEW
OF
THE
MODEl
395
Section 3
The Mode1395, 100 MHz Synthesized Arbitrary Wavefonn Generator, produces
a variety
of
standard, pulse, noise,
and
user-defined (Arbitrary) wavefonns. In
addition, the Model 395 allows linking
of
up
to four arbitrary wavefonns to
fonn
a Sequence. Plus, the Model 395 triggers, sweeps, and modulates all wavefonns.
Also, sum an external signal with the generator's internaI signal.
The
Model395
stores up
10
100 Arbitrary wavefonns in battery-backed memory.
Complete instrument setups can he stored and recalled.
Using the Madel 395
This section introduces front panel operation
of
the Model 395. Included in this
section are a series
of
examples demonstrating the features
of
the unit. Section 4
contains reference infonnation aboutModel 395 operation. Section 5 describes the
SCPI remote programming commands, RS-232 operation, and optional IEEE 488
operation. Section 5
alSO
contains a series
of
SCPI language remote programming
examples demonstrating the unit's features; these examples are the remote
programming equivalent
of
the examples in this section.
Appendix B
of
this manual contains a front panel screens quick reference, while
appendix C contains SCPI commands quick reference.
3.2 NAVIGATING THE SCREENS
3.2.1 Front Panel Keys and Screens
Pressing front panel keys display screens with program parameters relative to the
key pressed. Change program parameters by using softkeys
(FI
through F8), or
change numeric values using the keypad
or
knob. For example, press the
FREQUENCY key to display the Frequency screen; see figure 3-1.
Introduction
To
The
Mode/395 3-1
