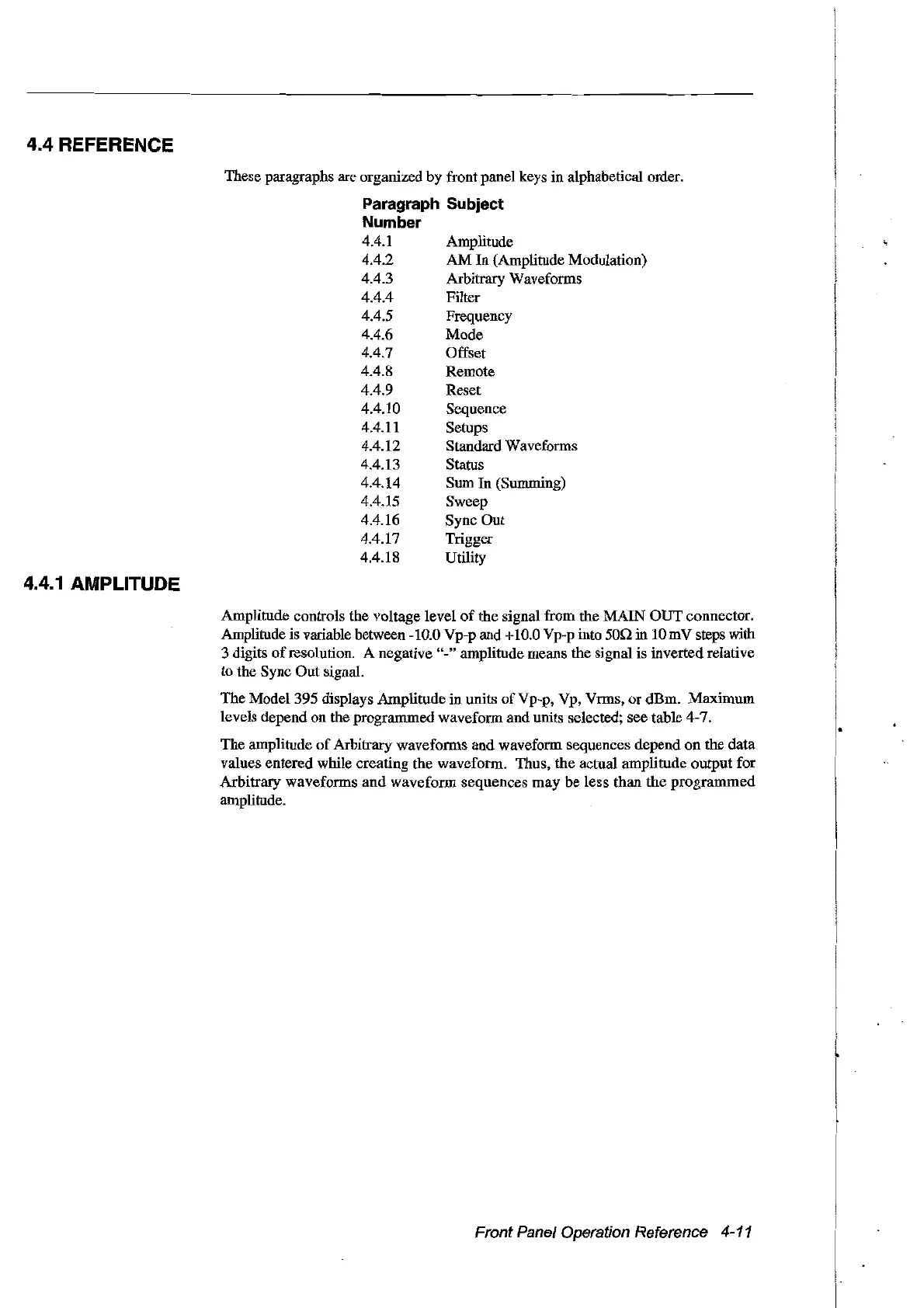

4.4 REFERENCE
These paragraphs are organized by front panel keys in alphabetical arder.
Amplitude
AM
In
(Amplitude Modulation)
Arbitrary Waveforms
Filter
Frequency
Mode
Offset
Remote
Reset
Sequence
Setups
Standard Waveforms
Status
Sum
In (Smnming)
Sweep
Sync Out
Trigger
Utility
Paragraph Subject
Number
4.4.1
4.4.2
4.4.3
4.4.4
4.4.5
4.4.6
4.4.7
4.4.8
4.4.9
4.4.10
4.4.11
4.4.12
4.4.13
4.4.14
4.4.15
4.4.16
4.4.17
4.4.18
4.4.1 AMPLITUDE
Amplitude contraIs the voltage level
of
the signal from the MAIN OUT connector.
Amplitude is variable between -10.0 Vp-p and
+10.0 Vp-p into
son
in 10mV steps with
3 digits
of
resolution. A negative "-" amplitude means the signal is inverted relative
to the Sync
Out
signal.
The Model 395 displays Amplitude in units
of
Vp-p, Vp, Vrms,
or
dBm. Maximmn
levels depend on the programmed waveform and units selected; see table 4-7.
The amplitude
of
Arbitrary waveforms and waveform sequences depend
on
the data
values entered while creating the waveform. Thus, the actual amplitude output for
Arbitrary waveforms
and
waveform sequences may
be
less than the
programmed
amplitude.
Front Panel Operation Reference 4-11
