Fluke Wavetek-Datron 395 - Model 395 as a Function Generator; Example 1. Setting up the Function Generator

Model395
son
Termination
Sync
Out
Trigger
Input
\1illIII- .. ~~~50n
Termination
Main
Out

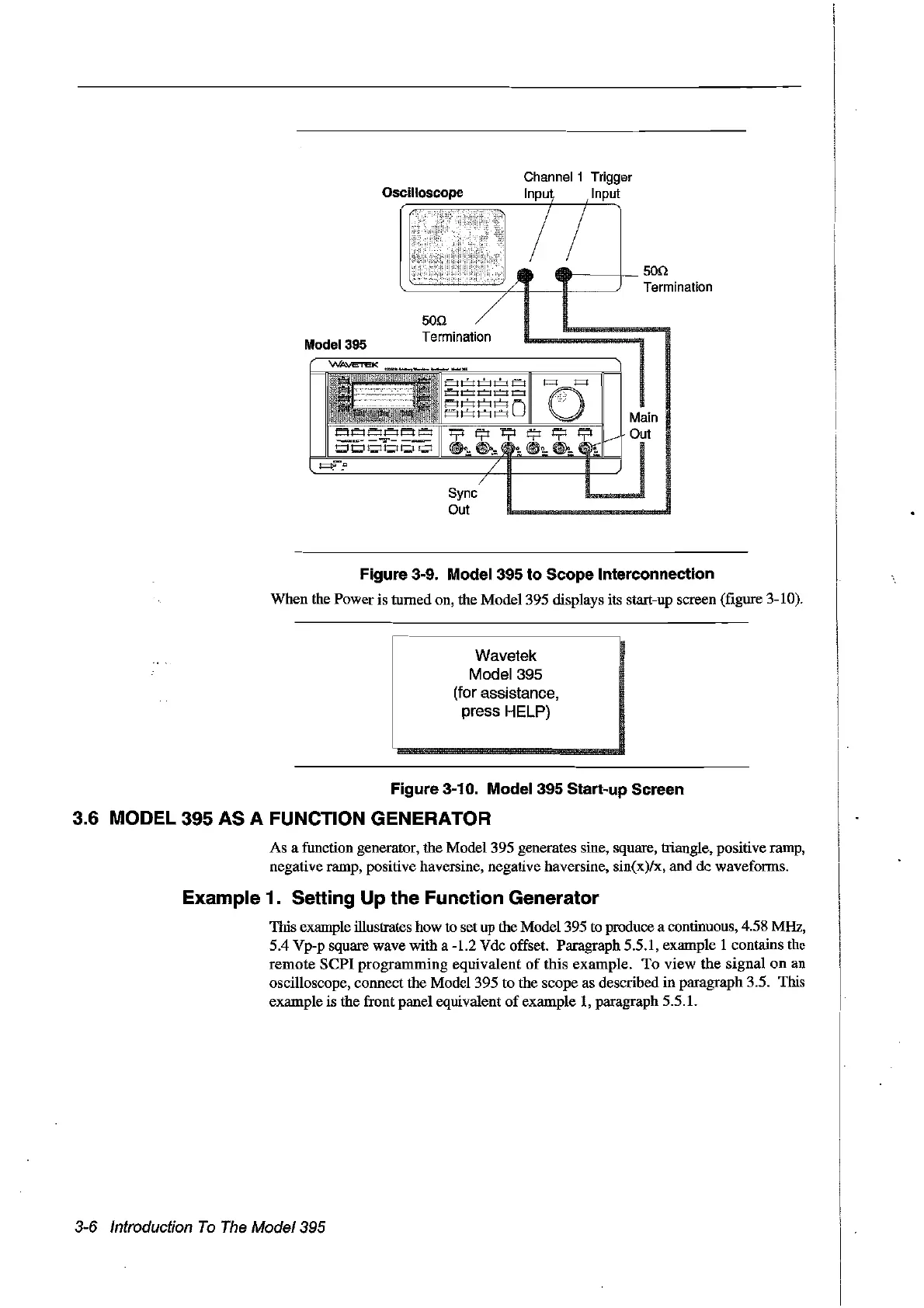

Figure 3·9. Model 395 to Seope Intereonnection
When the Power is tumed on, the Model 395 displays its start-up sereen (figure 3-10).
Wavetek
Madel 395
(for assistance,
press HELP)
Figure 3·10. Model395 Start-up Sereen
3.6 MODEl 395 AS A FUNCTION GENERATOR
As a function generator, the Model 395 generates sine, square, triangle, positive ramp,
negative ramp, positive haversine, negative haversine, sin(x)/x, and
de wavefonns.
Example 1. Setting Up the Function Generator
This example illustrates how to set up the Model395 ta produce a continuous, 4.58 MHz,
5.4 Vp-p square wave with a -1.2 Vdc offset. Paragraph 5.5.1, example 1 contains the
remote SePI programming equivalent of this example. To view the signal on an
oscilloscope, connect the Madel 395 ta the scope as described in paragraph 3.5. This
example is the front panel equivalent
of example 1, paragraph 5.5.1.
3-6 Introduction Ta The Model395
