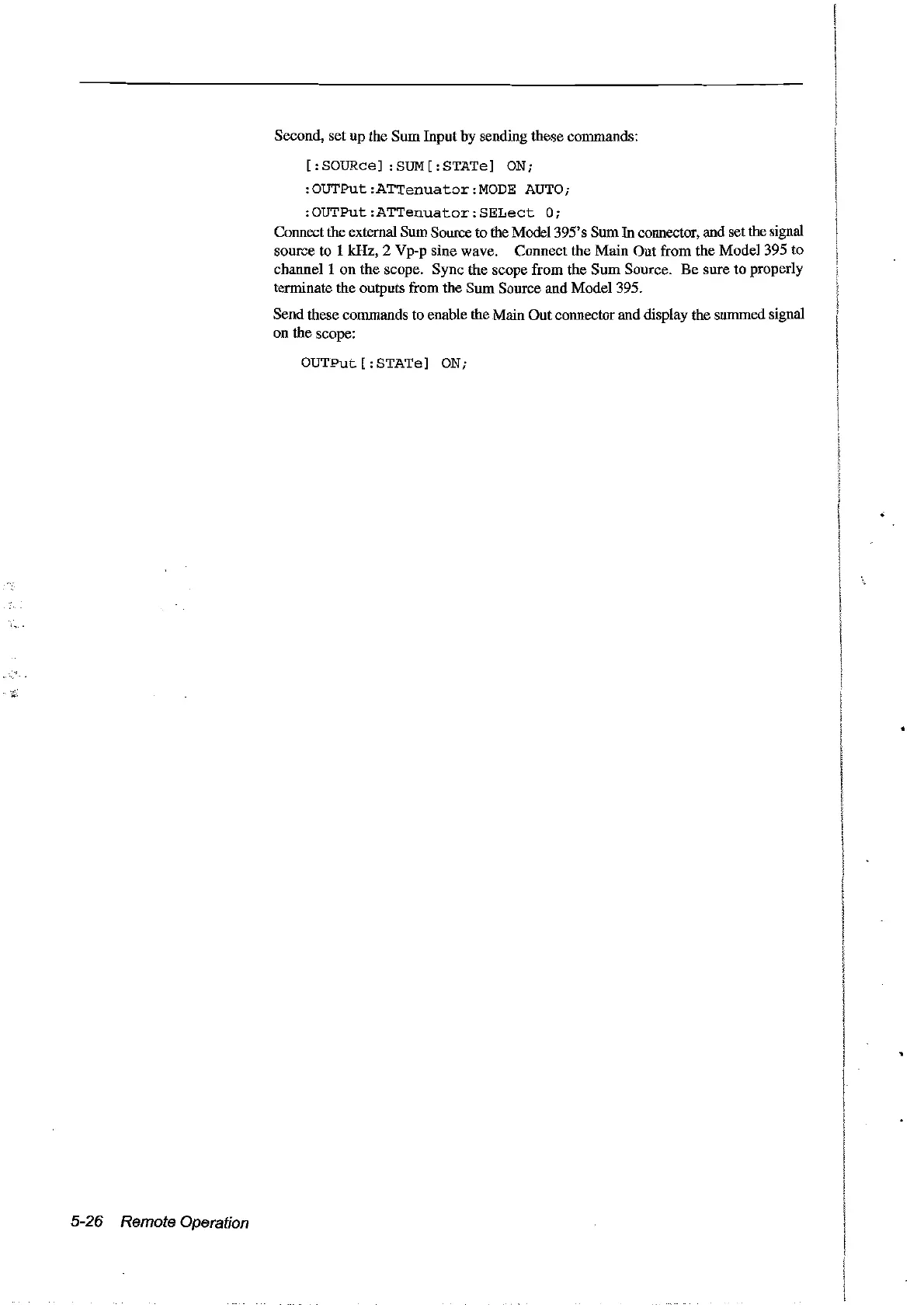

5-26 Remote Operation
Second, set up the SumInput by sending these commands:
[:SOURce] :SUM[:STATe]
ON;
:OUTPut:ATTenuator:MODE
AUTO;
:OUTPut:ATTenuator:SELect
0;
Connect the extemal Sum Source to the Mode1395's Sum
In
connector, and set the signal
source to 1 kHz, 2 Vp-p sine wave. Connect the
Main
Out
from the Model 395 to
channel 1
on
the scope. Sync the scope from the
Sum
Source.
Be
sure
to
properly
terminate the outputs from the Sum Source and Mode1395.
Send these commands to enable the Main Out connector and display the summed signal
on the scope:
OUTPut [:STATe]
ON;
