5-18 Remote Operation
4000
3500
3000
2500
~
2000
Cl
1500
1000
500
5
10 15 20 25
30
35
40
ADDRESS

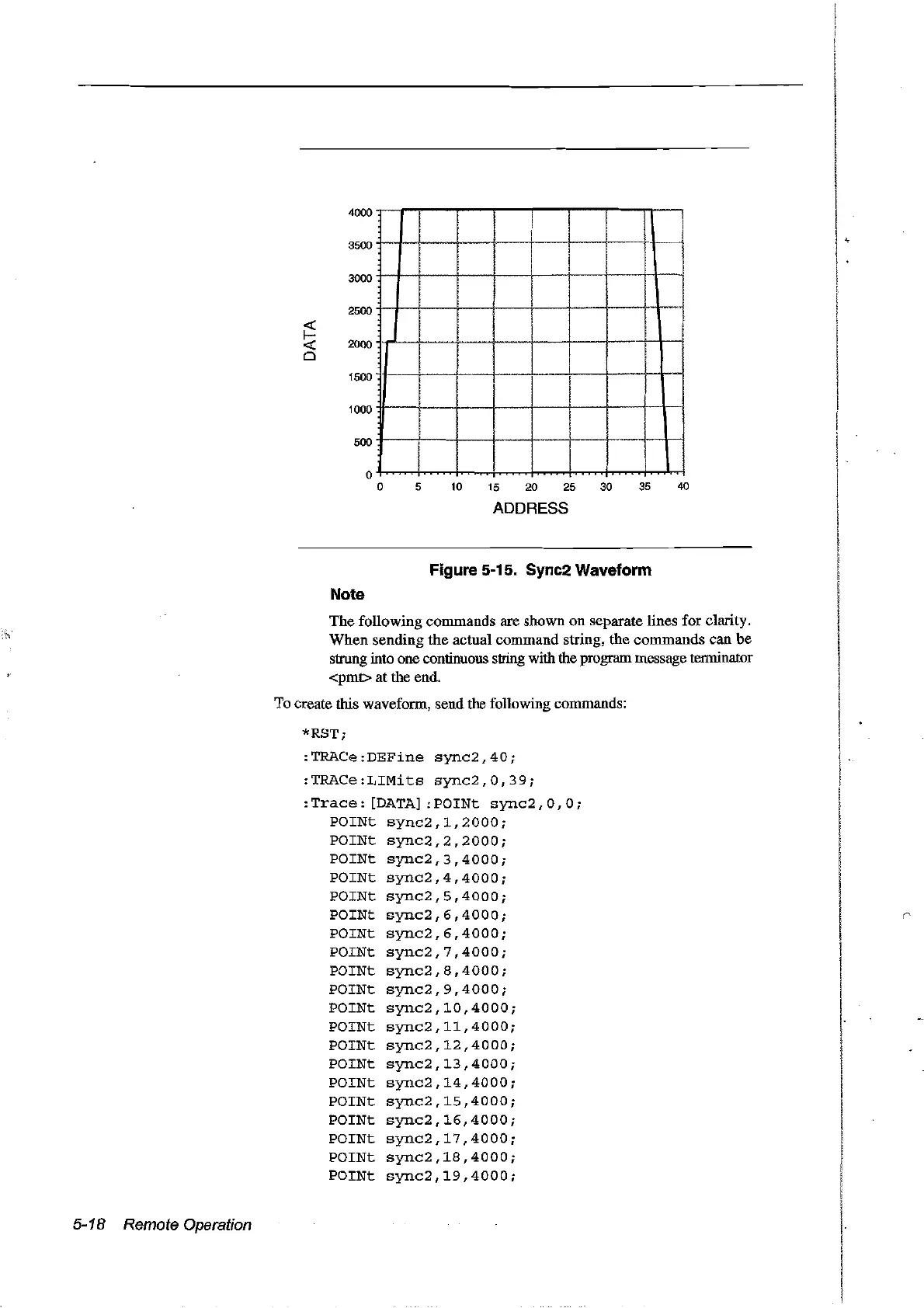

Figure 5-15. Sync2 Waveform
Note
The following commands are shown on separate lines for clarity.
When sending the actual command string, the commands can be
strung into one continuous string with the program message terminator
<pmt>
at the end.
To create this waveform, seud the following commands:
*RSTi
:TRACe:DEFine sync2,40i
:TRACe:LIMits sync2,O,39i
:Trace: [DATA] : POINt sync2,O,Oi
POINt sync2,l,2000i
POINt sync2,2,2000i
POINt ,3,4000i
POINt sync2,4,4000i
POINt sync2,5,4000i
POINt sync2,6,4000i
POINt sync2,6,4000;
POINt sync2,7,4000;
POINt sync2,8,4000;
POINt sync2,9,4000i
POINt sync2,lO,4000i
POINt sync2,ll,4000;
POINt sync2,12,4000i
POINt sync2,13,4000i
POINt sync2,14,4000i
POINt sync2,15,4000i
POINt sync2,16,4000;
POINt sync2,17,4000i
POINt sync2,18,4000i
POINt sync2,19,4000i
