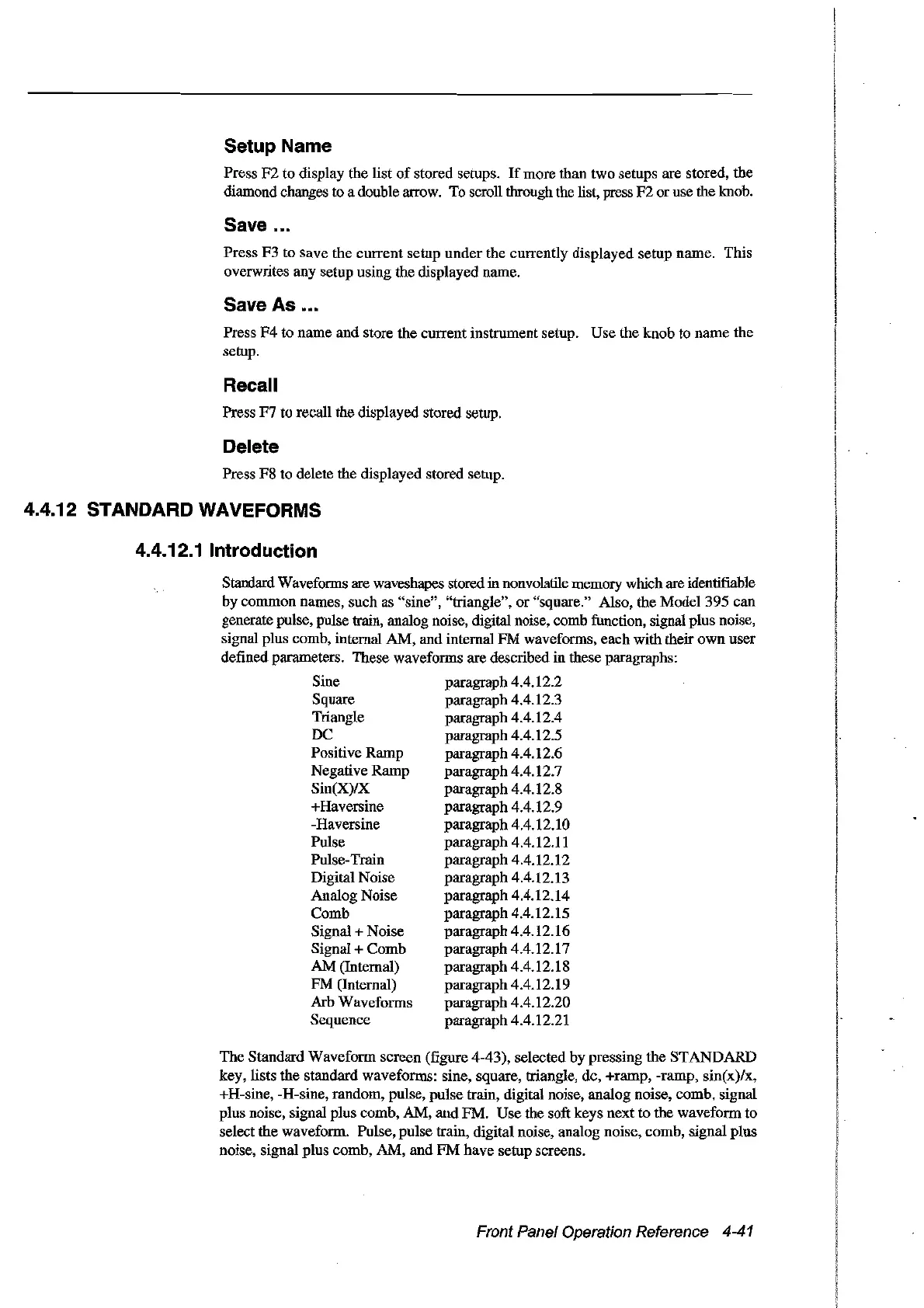

Setup Name
Press F2 to display the list
of
stored setups.
If
more than two setups are stored, the
diamond changes to a double arrow. To
seroU
through the list, press F2 or use the knob.
Save ...
Press F3 to save the current setup under the currently displayed setup name. This
overwrites any setup using the displayed name.
Save As ...
Press F4 to name and store the current instrument setup. Use the knob to name the
setup.
Recall
Press F7 to recall the displayed stored setup.
Delete
Press F8 to delete the displayed stored setup.
4.4.12 STANDARD WAVEFORMS
4.4.12.1 Introduction
Standard Waveforrns are waveshapes stored innonvolatile memory which are identifiable
by common names, such as "sine", "triangle", or "square." AIso, the
Model395
can
generate pulse, pulse train, analog noise, digital noise, comb function, signal plus noise,
signal plus comb, internaI AM, and internaI FM waveforrns, each with their own user
defined parameters. These waveforms are described
in
these paragraphs:
Sine paragraph 4.4.12.2
Square paragraph 4.4.12.3
Triangle paragraph 4.4.12.4
DC paragraph 4.4.12.5
Positive Ramp paragraph 4.4.12.6
Negative Ramp paragraph 4.4.12.7
Sin(X)/X paragraph 4.4.12.8
+Haversine paragraph 4.4.12.9
-Haversine paragraph 4.4.12.10
Pulse paragraph 4.4.12.11
Pulse-Train paragraph 4.4.12.12
Digital Noise paragraph 4.4.12.13
Analog Noise paragraph 4.4.12.14
Comb paragraph4.4.12.15
Signal + Noise paragraph4.4.12.16
Signal + Comb paragraph 4.4.12.17
AM (InternaI) paragraph 4.4.12.18
FM (Internal) paragraph4.4.12.19
Arb Waveforms paragraph 4.4.12.20
Sequence paragraph 4.4.12.21
The Standard Waveform screen (figure 4-43), selected by pressing the STANDARD
key, lists the standard waveforms: sine, square, triangle, dc, +ramp, -ramp,
sin(x)/x,
+H-sine, -H-sine, random, pulse, pulse train, digital noise, analog noise, comb, signal
plus noise, signal plus comb, AM, and FM. Use the soft keys next to the waveform to
select the waveform. Pulse, pulse train, digital noise, analog noise, comb, signal plus
noise, signal plus comb, AM, and
FM
have setup screens.
