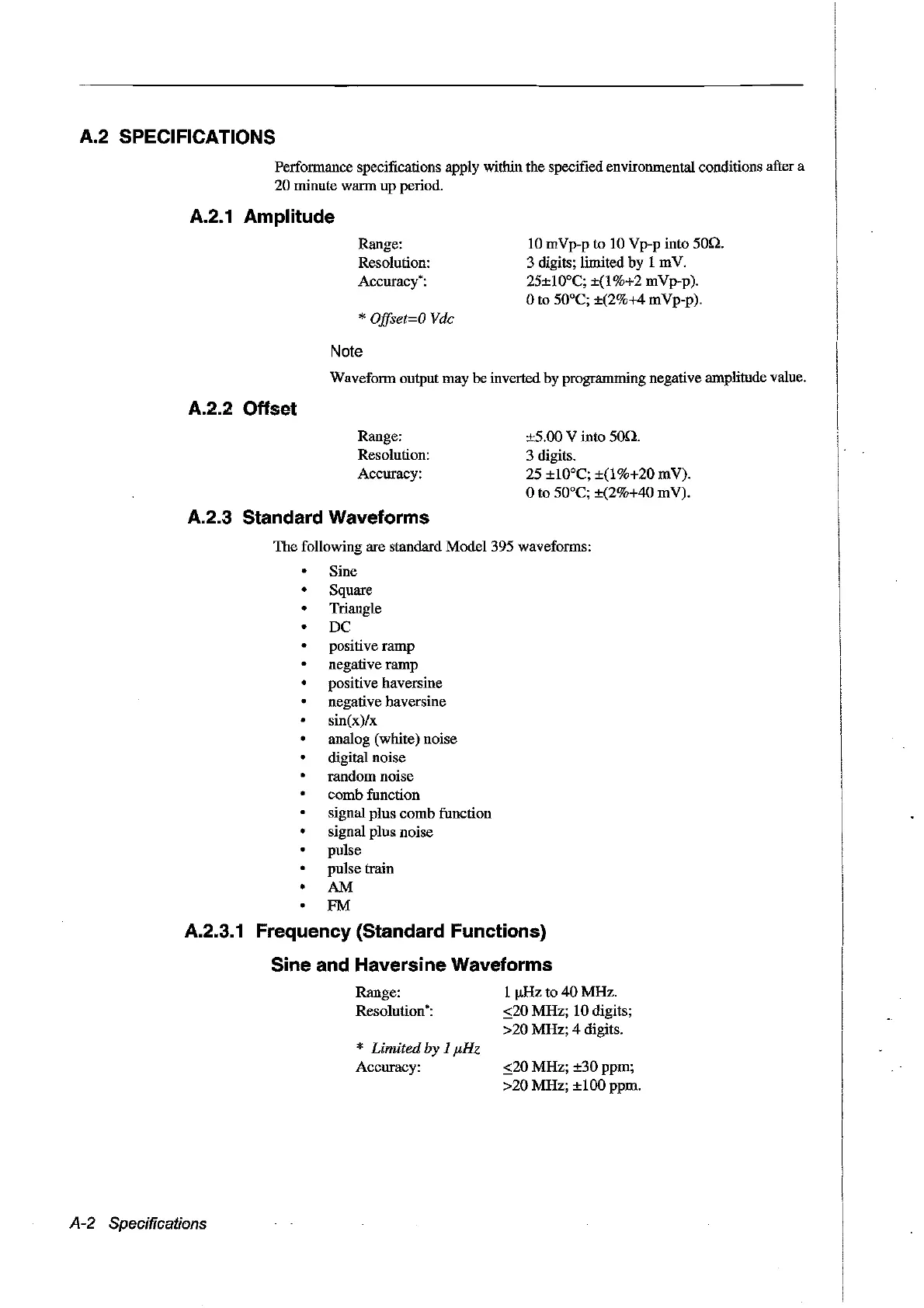

A.2 SPECIFICATIONS
Performance specifications apply within the specified environmental conditions after a
20 minute warm up period.
A.2.1
Amplitude
Range:
Resolution:
Accuracy':
10 mVp-p to 10 Vp-p into
son.
3 digits; limited by 1 mV.
2S±1O°C; ±(1%+2 mVp-p).
oto 50°C; ±(2%+4 mVp-p).
* Offset=O Vdc
Note
Waveform output may be inverted by programming negative amplitude value.
A.2.2 Offset
Range:
Resolution:
Accuracy:
A.2.3 Standard Waveforms
±S.OO
Vinto
son.
3 digits.
25 ±lO°C;
±(l%+20mV).
oto 50°C; ±(2%+40 mV).
The following are standardModel 395 waveforms:
• Sine
• Square
• Triangle
DC
positive ramp
• negative ramp
• positive haversine
• negative haversine
• sin(x)/x
• analog (white) noise
• digital noise
• random noise
• comb function
signal plus comb function
• signal plus noise
• pulse
• pulse train
•
AM
•
FM
A.2.3.1 Frequency (Standard Functions)
Sine and Haversine Waveforms
A-2
Specifications
Range:
Resolution-:
* Limited
by
1
pHz
Accuracy:
1
~z
to
40
MHz.
~20
MHz; 10 digits;
>20 MHz; 4 digits.
~20
MHz; ±30 ppm;
>20 MHz; ±100 ppm.
