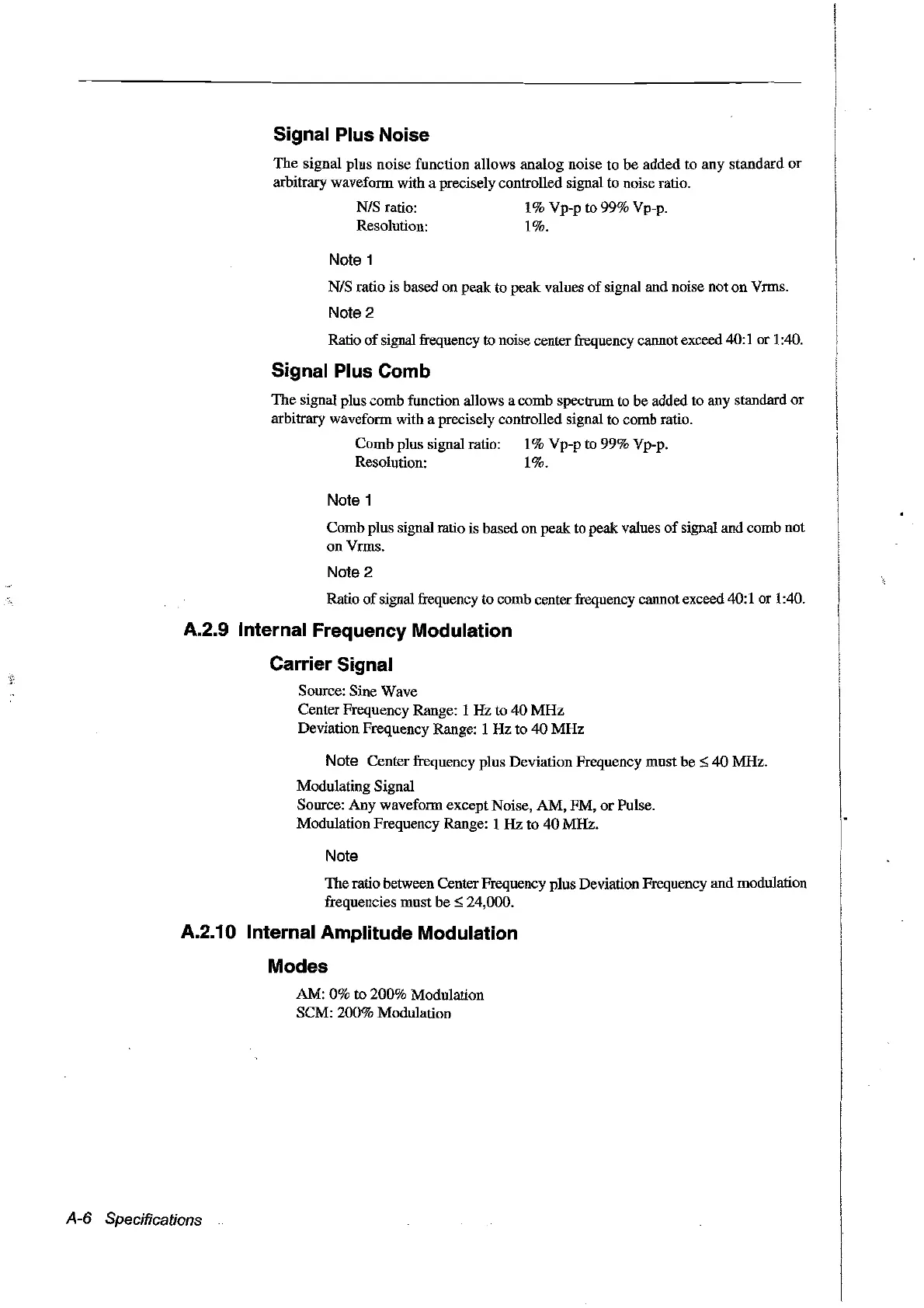

Signal Plus Noise
The
signal
plus noise function allows
analog
noise to
be
added
to
any
standard
or
arbitrary waveform with a precisely controlled signal to noise ratio.
N/S ratio: 1%
Vp-p
to 99% Vp-p.
Resolution: 1%.
Note 1
N/S ratio is based on peak to
peak
values
of
signal and noise not
on
Vrms.
Note 2
Ratio
of
signal frequency to noise center frequency cannot exceed40:1 or 1:40.
Signal Plus Comb
The
signal plus comb function allows a
comb
spectrum to
be
added to
any
standard
or
arbitrary waveform with a precisely controlled signal to
comb
ratio.
Comb
plus signal ratio: 1% Vp-p to 99% Vp-p.
Resolution: 1
%.
Note 1
Comb plus signal ratio is based on
peak
to peak values
of
signal
and
comb
not
on Vrms.
Note 2
Ratio
of
signal frequency to comb centerfrequency cannot exceed 40:1
or
1:40.
A.2.9 Internai Frequency Modulation
Carrier Signal
Source: Sine
Wave
CenterFrequency Range: 1
Hz
to
40
MHz
Deviation Frequency Range: 1
Hz
to
40
MHz
Note Center frequency plus Deviation Frequency
must
be
::;;
40
MHz.
Modulating Signal
Source:
Any
waveform except Noise,
AM,
FM,
or
Pulse.
Modulation Frequency Range: 1
Hz
to
40
MHz.
Note
The
ratio between CenterFrequency plus Deviation Frequency
and
modulation
frequencies
must
be
::;;
24,000.
A.2.10 Internai Amplitude Modulation
Modes
AM:
0%
to 200% Modulation
SCM: 200% Modulation
A-6
Specifications
