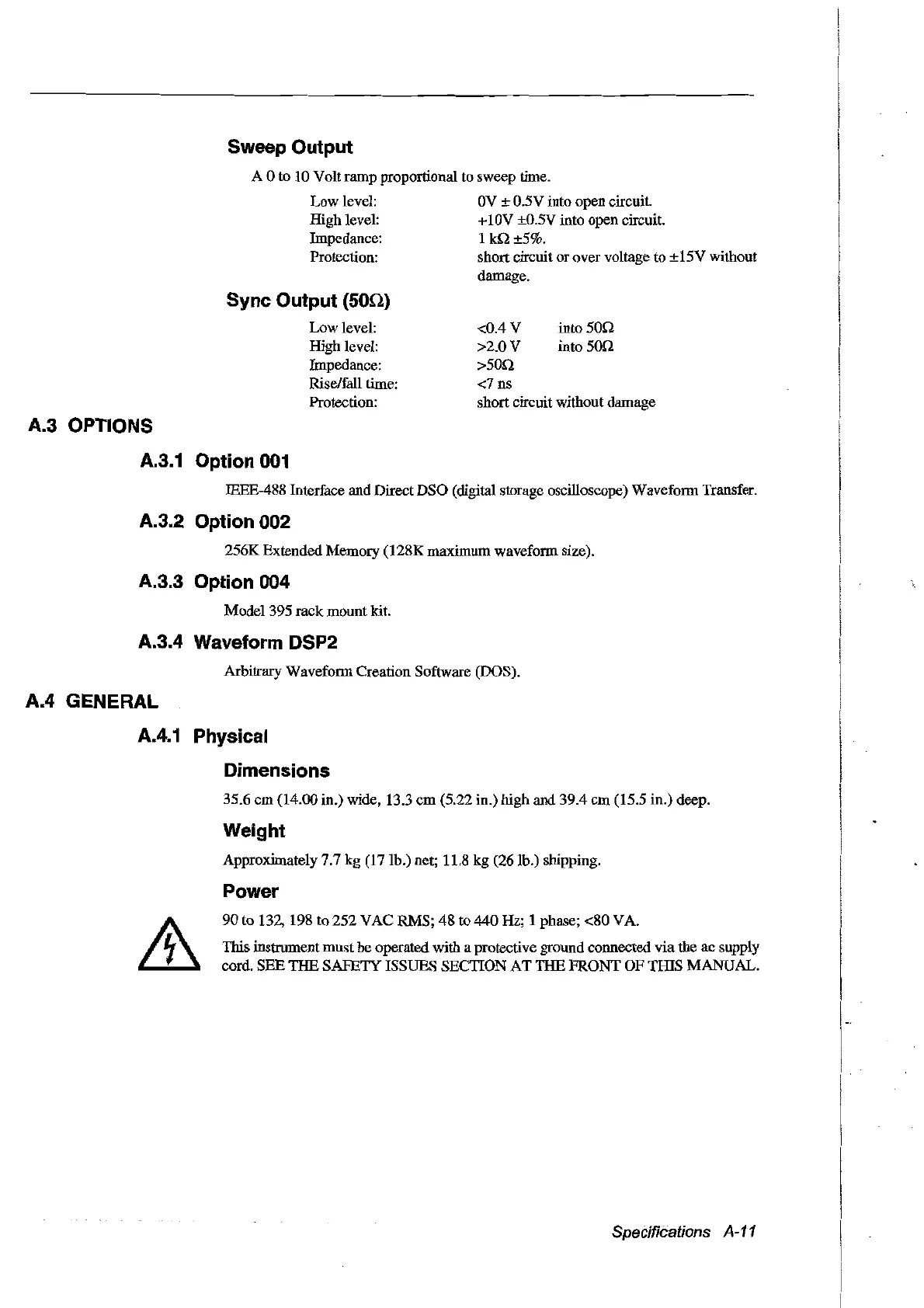

Sweep Output
A 0 to 10 Volt ramp proportional to sweep time.
Low level:
OV
±
O.5V
into open circuit.
High level:
+lOV
±O.5V
into open circuit.
Impedance:
1
kil
±5%.
Protection: short circuit or over voltage to ±15V without
damage.
into
son
into
son
Sync Output (50n)
Low level:
Highlevel:
Impedance:
Rise/fall time:
Protection:
<0.4 V
>2.0
V
>50n
<lns
short circuit without damage
A.3 OPTIONS
A.3.1 Option
001
IEEE-488 Interface and DirectDSO (digital storage oscilloscope) Waveform Transfer.
A.3.2 Option 002
256K Extended Memory (128K maximum waveform size).
A.3.3 Option 004
Model 395 rack mount kit.
A.3.4 Waveform DSP2
Arbitrary Waveform Creation Software (DOS).
A.4 GENERAL
A.4.1 Physical
Dimensions
35.6 cm (14.00 in.) wide, 13.3
cm
(5.22 in.) high and 39.4
cm
(15.5 in.) deep.
Weight
Approximately 7.7 kg (17 lb.) net; 11.8 kg (26 lb.) shipping.
Power
90 to 132, 198 to 252 VAC RMS; 48 to 440 Hz; 1 phase; <80 VA.
This instrument must be operated with a protective ground connected via the ac supply
cord. SEE THE SAFETY ISSUES SECTION
AT
THE FRONT
OF
THIS MANUAL.
Specifications A-11
